Product Description

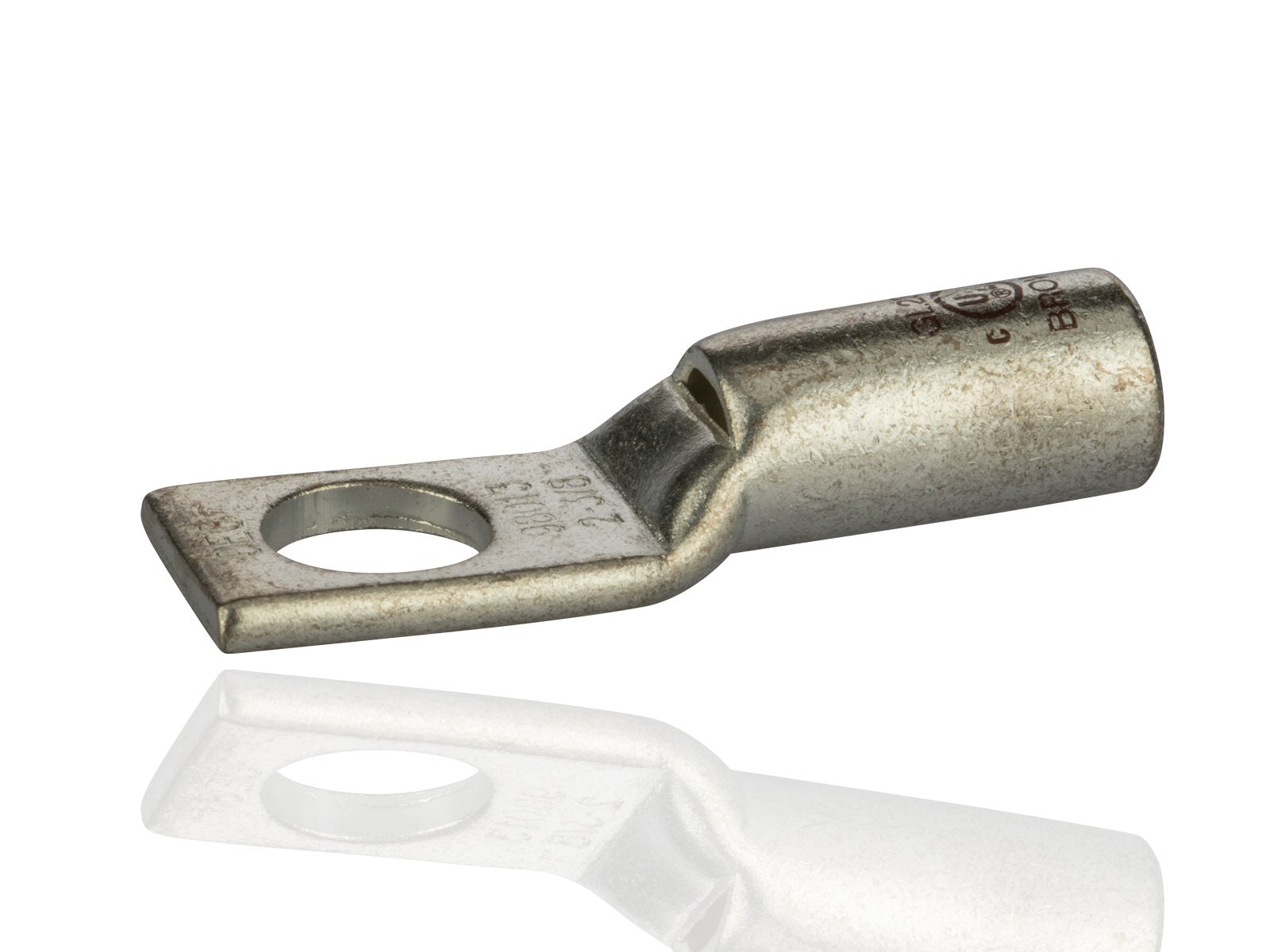

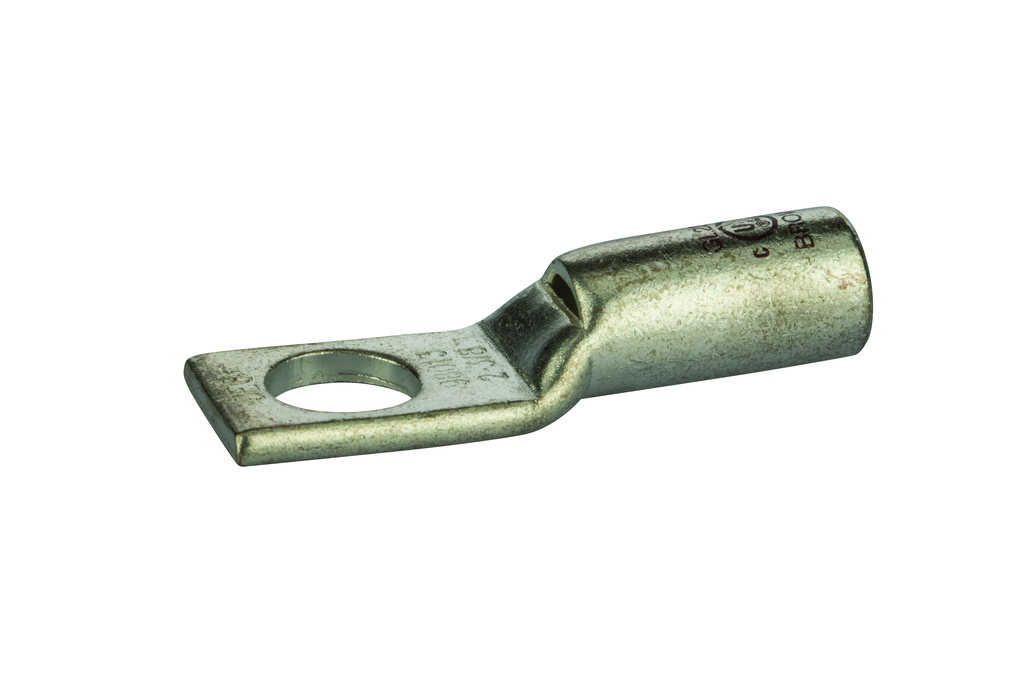

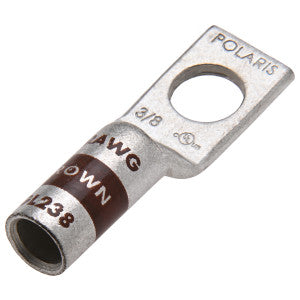

The NSI INDUSTRIES GL238 copper compression short lug features a standard installation hole, sized for 3/8" mounting bolts, and a chamfered port to terminate a 2 AWG conductor. Connectors are made from tin-plated copper for improved conductivity and corrosion resistance. It installs easily with just a crimp tool. Use for secondary power distribution in buildings, power plants and industrial applications.
- Strong Conductivity - Produced from high-conductivity copper tubing
- Corrosion-Resistant - Tin-plated to provide corrosion and low-contact resistance
- Die-Indexed - Marked with die index and color-coded brown
Product Highlights
The NSI GL238 compression lug is made from high-conductivity copper tubing and tin-plated for corrosion resistance. It is marked with a die index and color-coded for easy identification.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: GL238
-
Country of Origin: India
Technical Specifications
-
Barrel: SHORT
-
Bolt Hole: 3/8 INCH
-
Gauge: 2 AWG
-
Holes: 1 HOLE
-
Inspection Hole: NO
-
Lug Material: COPPER
-
Type: Lugs
-
Brand: NSI Industries
-
Color: Brown
-
Finish: Tin Plated
-
Voltage: 600 Volt
-
Material: Copper
-
Standard: UL486
-
Stud Size: 3/8 in
-
Sub Brand: Copper Compression
-
Cable Size: 2 AWG
-
Applications: Terminate, Splice, Tap Power Connectors
-
Mounting Type: 3/8 Mounting Hole
-
Max Temperature: 194 degrees F
-
Number of Holes: 1 Hole
-
Environmental Conditions: 90 degrees C
-
Lug Wire Size: 2 AWG
-
Model / MPN: GL238
-
Item [Specifications]: One-Hole Lug Compression Connector
-
Cable Size [Specifications]: 2 AWG
-
Color Code [Specifications]: Brown
-
Connector Type [Specifications]: Short Barrel with Peep Hole
-
Voltage Rating: 35kV
-
Ul Standard: UL 486A-486B, UL467
-
Wire Cable Class: Class B, Class C
-
Conductor Type: Copper
-
Tang Thickness: 0.1
-
Tang Length: 0.81
-
Wire Range: 2 AWG
-
Assortment: Copper Compression Terminations
-
Expanded Wire Range: 2 AWG 6 AWG
-
Die Color Code: Brown
-
Mounting Bolt Size: 3/8
-
Mounting Hole Diameter: 0.41
-
Barrel Length: 1
-
No. of Holes: 1
-
Rated Voltage: 600 V
-
Color Family: Brown
-
MPN: GL238
-
UPC: 66238103605
-
Manufacturer: NSI Industries
-
Overall Length: 1.8 in
-
Temperature Rating: 90 deg C
-
Tongue Size: 0.81 in L x 0.6 in W x 0.1 in THK
-
Application: For Terminate, Splice and Tap Power Connectors
-
Standard & Approvals: UL 486 Listed, RoHS Compliant
-
Conductor Size: 2/0 AWG
-
Dimensions: 0.6 in W
-
Barrel Size: 0.31 in ID x 0.42 in OD
-
Barrel Style: Short
