Nsi Industries GL138 1 AWG Copper Compression Lug Short Barrel 3/8 Bolt Size

Product Description

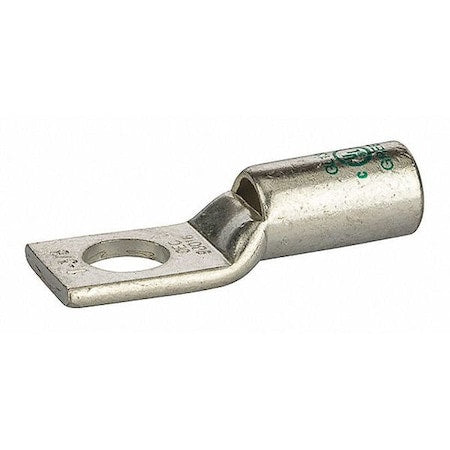

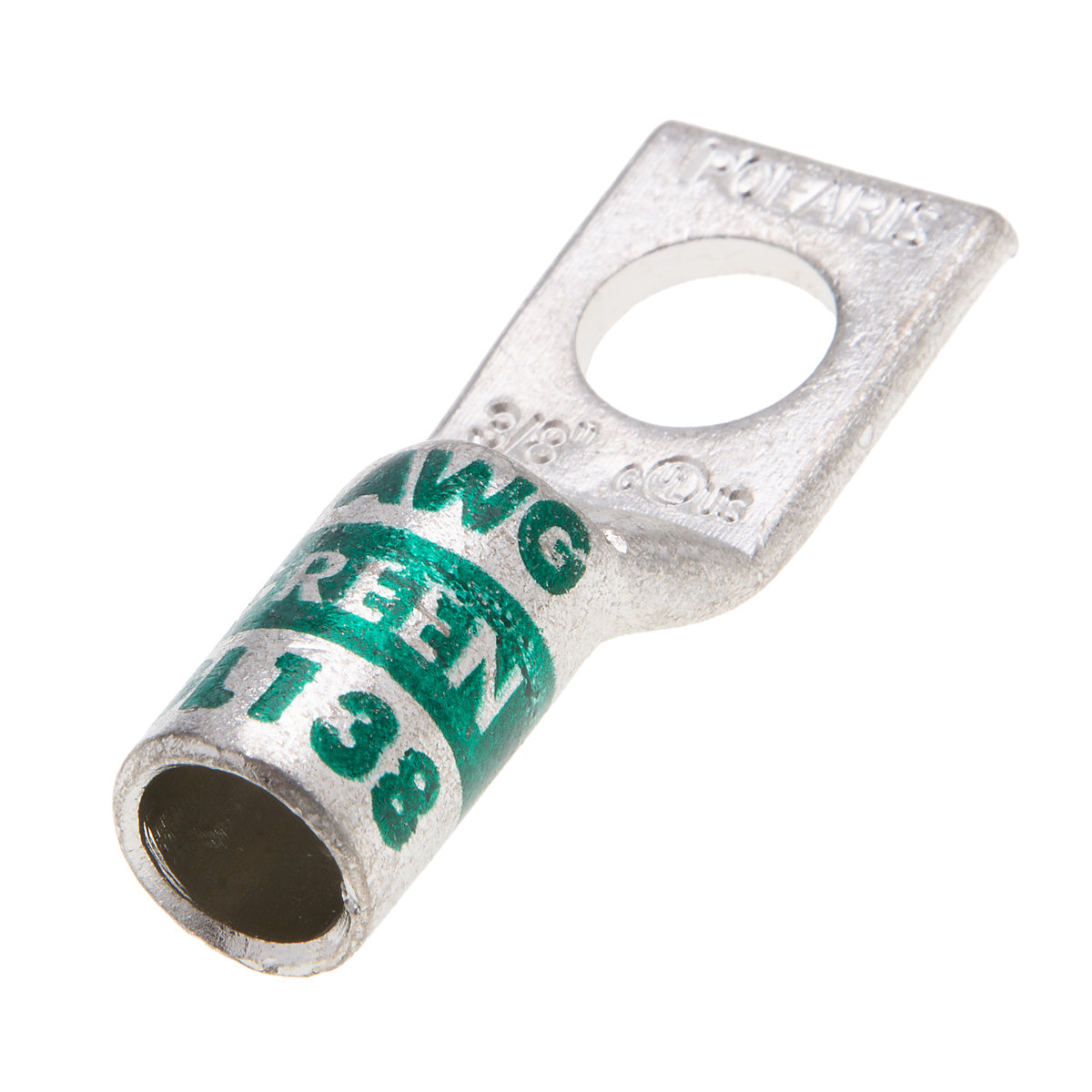

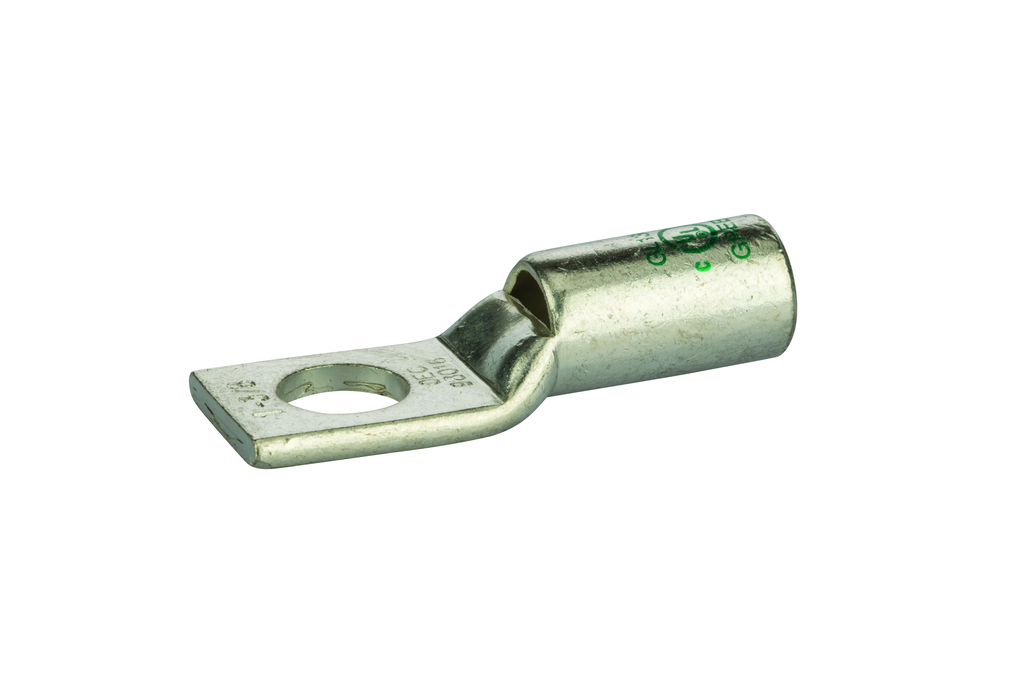

The NSI INDUSTRIES GL138 copper compression lug features a short barrel. Made from high-conductivity copper tubing, it is tin-plated for corrosion resistance and low contact resistance. This lug is marked with a die index and color-coded green for easy identification. It is suitable for power distribution, grounding, and data transmission applications.

• Strong Conductivity - Produced from high-conductivity copper tubing
• Corrosion-Resistant - Tin-plated to provide corrosion and low-contact resistance
• Die-Indexed - Marked with die index and color-coded green

Product Highlights

This copper compression lug offers strong conductivity, corrosion resistance, and easy inspection, ensuring a reliable connection for various applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: GL138
• Country of Origin: India

Technical Specifications

• Connection Type: COMPRESSION
• Type: Short Barrel - One Hole
• Brand: NSI Industries
• Finish: Tin Plated
• Material: Copper
• Standard: UL486
• Stud Size: 3/8 in
• Sub Brand: Copper Compression
• Cable Size: 1 AWG
• Applications: Terminate, Splice, Tap Power Connectors
• Mounting Type: 3/8 Mounting Hole
• Max Temperature: 194 degrees F
• Number of Holes: 1 Hole
• Country of Origin: India
• Environmental Conditions: 90 degrees C
• Rated: 35KV Max
• Holes: 1
• Expanded Wire Range: 1-6 AWG
• Color Code: Green
• ID: 0.358
• OD: 0.469
• End of Connection to Center: 0.394
• Tang Length: 0.811
• Barrel Length: 0.827
• Tang Thickness: 0.106
• Mounting Hole Diameter: 0.413
• Manufacturer: NSi Industries
• Part Number: GL138
• Item [Specifications]: One-Hole Lug Compression Connector
• Material [Specifications]: Tin-Plated High Conductivity Copper
• Cable Size [Specifications]: 1 AWG
• Color Code [Specifications]: Green
• Connector Type [Specifications]: Short Barrel with Peep Hole
• Country of Origin (subject to change) [Specifications]: India
• Voltage Rating: 35kV
• Ul Standard: UL 486A-486B, UL467
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Assortment: Copper Compression Terminations
• Die Color Code: Green
• Mounting Bolt Size: 3/8
• Barrel Outside Diameter: 0.47 in.
• Barrel Type: Short Barrel
• Conductor Material: Copper
• Die Index: 17/473/106
• Tongue Length: 0.81 in.
• Tongue Thickness: 0.11 in.
• Conductor Size: 1/0 AWG
• Barrel Size: 0.36 in ID x 0.47 in OD
• Tongue Size: 0.81 in L x 0.67 in W x 0.11 in THK
• Temperature Rating: 90 deg C
• Mounting Hole Size: 3/8 in
• Overall Length: 1.83 in
