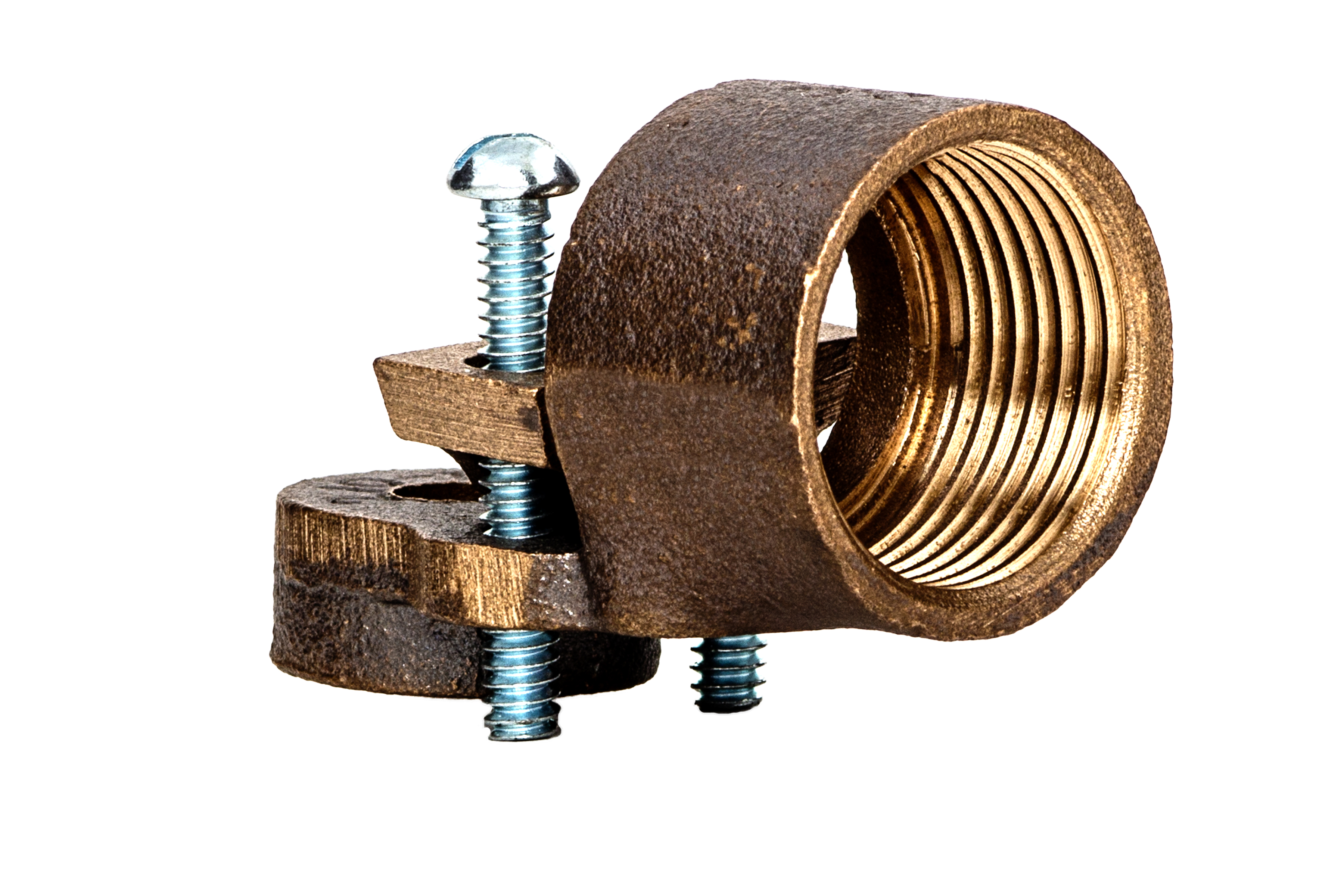

Nsi Industries GHM-75 Swing Conduit Hub 3/4 Inch Bronze

Product Description

The NSI INDUSTRIES GHM-75 is a 360-degree swing type conduit hub designed to ground copper grounding conductors to water pipes in indoor environments. Built from bronze with zinc-plated steel screws, this hub accepts 3/4 inch conduit or wire ranging from 10 SOL to 2/0 STR. The full 360-degree rotation allows the hub to accept entry from any direction, simplifying alignment during installation. It is intended for use with NSI ground clamps that feature serrated hubs. Licensed electricians install this fitting as part of grounding electrode conductor systems in residential and commercial applications.

The GHM-75 is suited for indoor grounding installations where a rigid metal conduit or wire entry point must be aligned to a water pipe clamp assembly. The 360-degree swing eliminates the need to reposition the pipe clamp or reroute conduit to achieve a straight entry angle, making it especially useful in tight mechanical rooms or panel rooms where conduit routing options are limited. The 3/4 inch hub size accommodates a broad range of conductor sizes from 10 SOL to 2/0 STR.

Key Features

• Full 360-degree swing allows conduit entry from any direction
• Bronze hub construction for durable, corrosion-resistant performance
• Zinc-plated steel screws included
• Accepts 3/4 inch conduit or wire from 10 SOL to 2/0 STR
• Designed for use with NSI ground clamps with serrated hubs
• Simplifies alignment in confined or awkward installation spaces

Compatibility

Designed for use with NSI ground clamps featuring serrated hubs for grounding copper conductors to water pipes in indoor environments. Fits 3/4 inch conduit or wire in the range of 10 SOL to 2/0 STR.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for grounding electrode conductor fittings. De-energize the circuit and verify power is off before handling any conductors or making connections. Ensure the conduit hub is fully seated and screws are snug before completing the grounding conductor termination. This fitting is rated for indoor use only and should not be installed in wet or outdoor locations.

Technical Specifications

• Hub Size: 3/4 inch
• Wire Range: 10 SOL to 2/0 STR
• Hub Material: Bronze
• Screw Material: Zinc-plated steel
• Swing Range: 360 degrees
• Environment: Indoor

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: GHM-75
