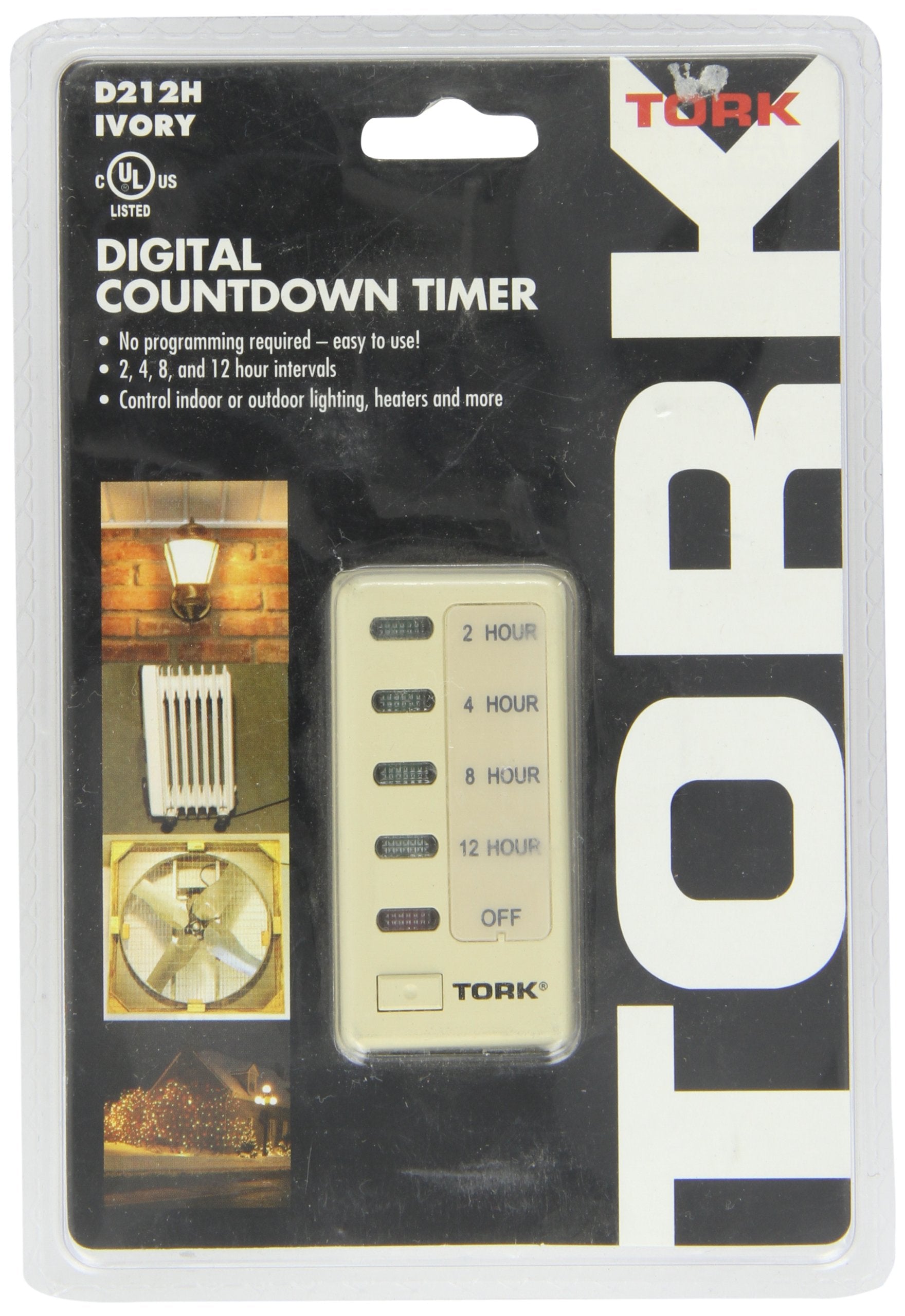

Nsi Industries D212H D Series Electronic Auto Off In-Wall Time Switch 120 VAC 2, 4, 8, 12 Hours

Product Description

The NSI Industries D212H digital timed switch accepts 120 VAC input and can activate a 15 amp load. This timer includes four timed On settings of 2, 4, 8, or 12 hours with an automatic Off. LED lights indicate time remaining. The single-gang in-wall switch is suitable for indoor use and is UL Listed and CSA certified. This switch is suitable for controlling lighting and fans.

• User -selectable timed On cycle for use with fans and lights
• Four timed On settings from two to 12 hours
• 120 VAC input voltage, 15 amp output contacts

Product Highlights

The NSI Industries D212H is a digital timer with four timed settings and automatic Off, LED status. It has a 120 VAC, 60 Hz input power supply and is UL Listed and CSA certified.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: D212H

Technical Specifications

• Switch type: Digital timer with four timed settings and automatic Off, LED status
• Input power supply: 120 VAC, 60 Hz
• Output contacts: 15 amp load rating
• On/off control: 2, 4, 8, or 12 hours with an automatic Off
• Enclosure: Single-gang in-wall, indoor use
• Terminal wire size range: #14 AWG (American wire gauge)
• Operating temperature range: 32 to 122 degrees F (0 to 50 degrees C)
• Standards met: UL Listed, CSA certified
• Mounting Type: Screw
• Number Of Poles: 1
• Series: D
• Temperature Rating: 32 to 122 deg F
• Type: Electronic Auto Off In Wall Time Switch
• Voltage Rating: 120 VAC
• Application: For whole house fans, indoor/outdoor lighting, bathroom fans and lights and self storage
• Amperage Rating: 15 A
• Contact Form: SPST
• Display: LED
• Horsepower: 1/4 hp
• Time Setting: 2 to 12 hr
• Scheduling: 2-4-8-12 Hours
• Frequency Rating: 60 Hz
• Brand: NSI
• Operating Temperature: 32-122 F
