Nsi Industries C-350 Long Barrel Tinned Copper Splice 350 MCM C-350

Product Description

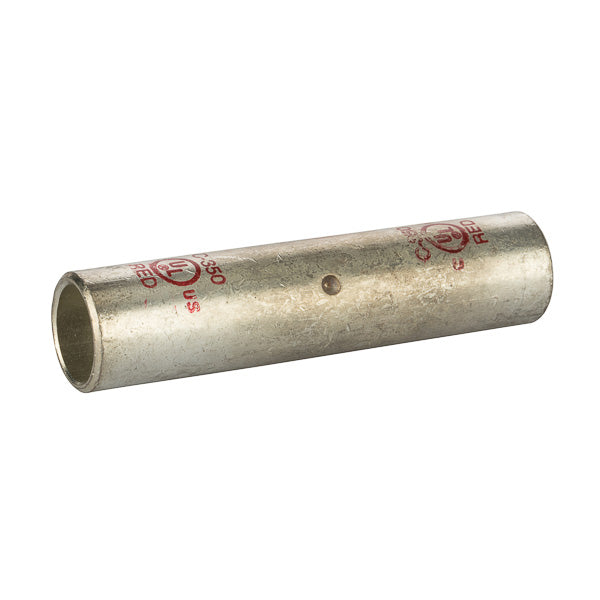

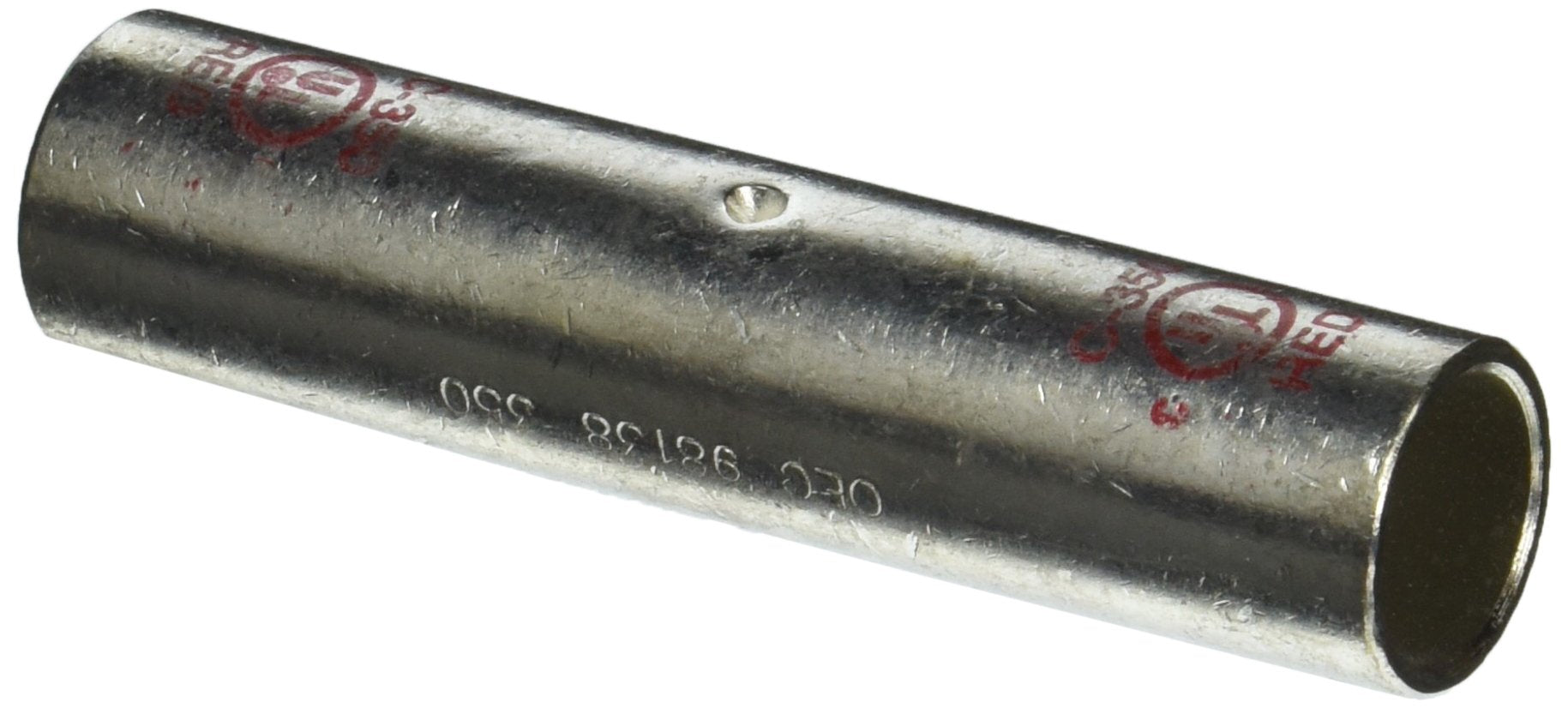

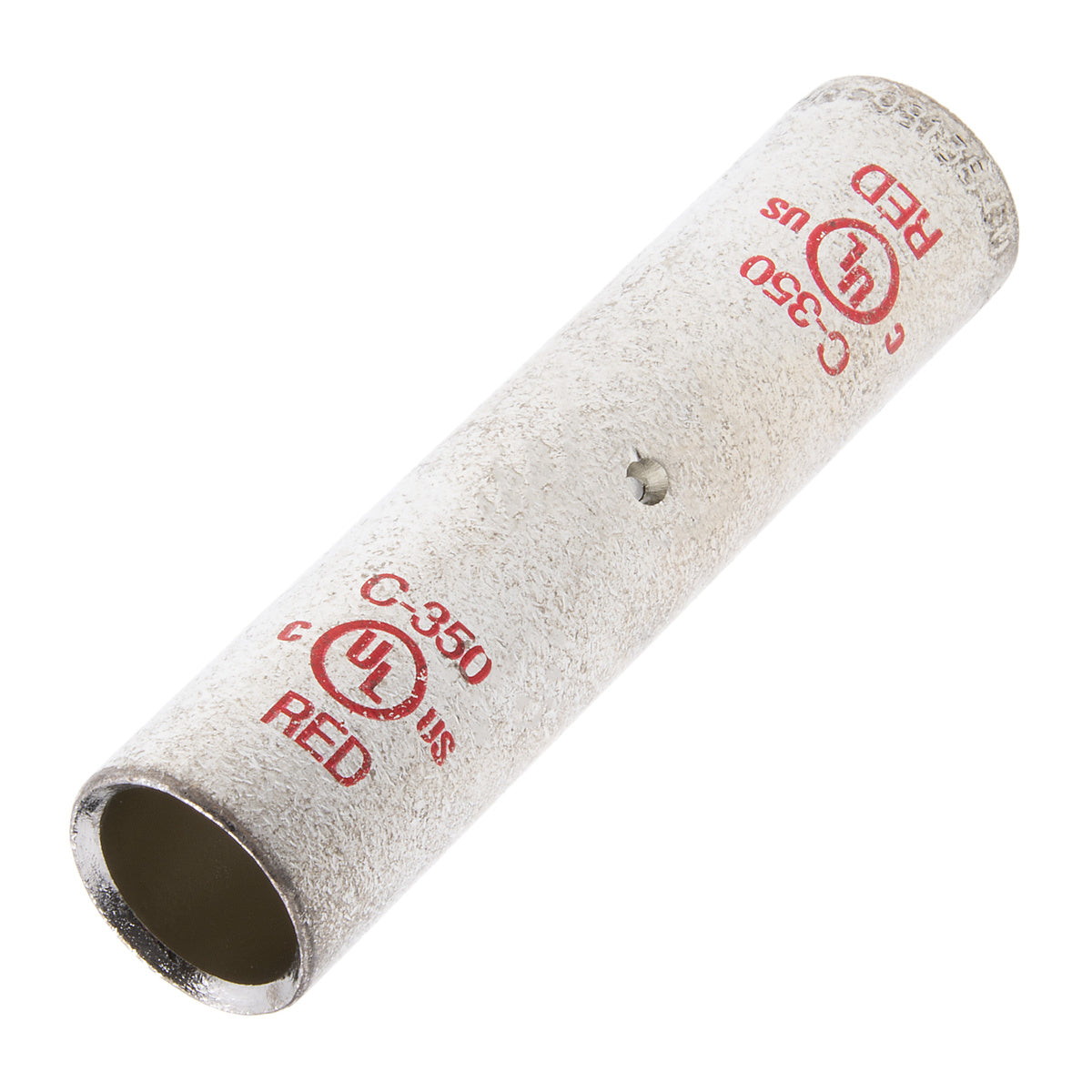

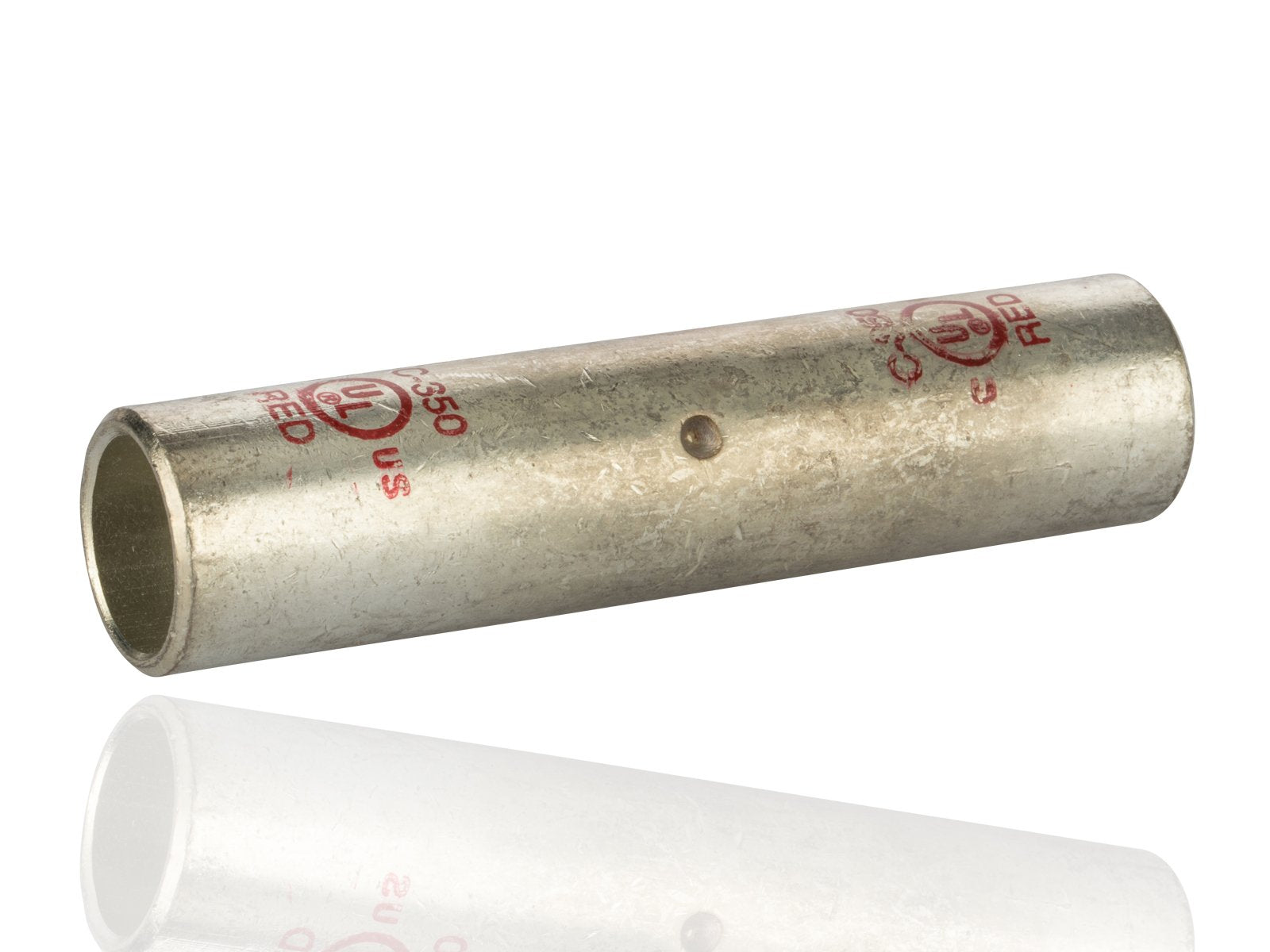

The NSI INDUSTRIES C-350 is a long barrel tinned copper splice produced from high conductivity copper tubing. Serrations indicate proper crimp locations. It is tin-plated to provide corrosion resistance and marked with die index and color code. Suitable for use at voltages up to 35KV provided connector is properly taped.

• Produced from high conductivity copper tubing
• Serrations indicate proper crimp locations
• Tin plated to provide corrosion resistance

Product Highlights

The NSI C-350 splice is ideal for making quick in-line connections and repairing damaged wiring. It is dual rated and suitable for use at voltages up to 35KV.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: C-350
• Country of Origin: India

Technical Specifications

• QUANTITY: 1 Count
• Voltage Rating: 600V
• WIRE RANGE: 350 MCM
• EXPANDED WIRE RANGE: 350 MCM - 3/0 AWG
• COLOR CODE: Red
• ID: 0.701
• OD: 0.874
• LENGTH: 3.752
• BRAND EQUIVALENT: Blackburn CU350 Burndy YS31 Homac C-350 Ilsco CTL350 Morris Products 94532 Panduit SCL350-X Penn Union BBCU-035
• TEMPERATURE RATING: 90 degrees C
• Conductor Size: 350 kcmil
• Manufacturer Part Number: C-350
• Material: Copper
• Finish: Tin Plated
• Type: Dual Rated
• Conductor Type: Stranded Copper
• Barrel Size: 0.7 in ID x 0.87 in OD
• Standards/Approvals: UL 486
• Application: For splice, tap power connectors and terminate
• Inner Diameter: 0.7 Inch
• Outer Diameter: 0.87 Inch
• Approval: UL 486A/B, UL (Canada and US)
• Barrel Type: Long
• Body Material: Tin Plated Copper
• Ul Standard: UL 486A
• Wire Cable Class: Class B, Class C
• Die Color Code: Red
• Barrel Length: 3.75
• No. of Conductors: 2
• Applications: For Terminate, Splice, Tap Power Connectors
• Standards: UL486A/B Listed, cULus Listed
