Nsi Industries ASC4T Aluminum Compression Splice 4 AWG

Product Description

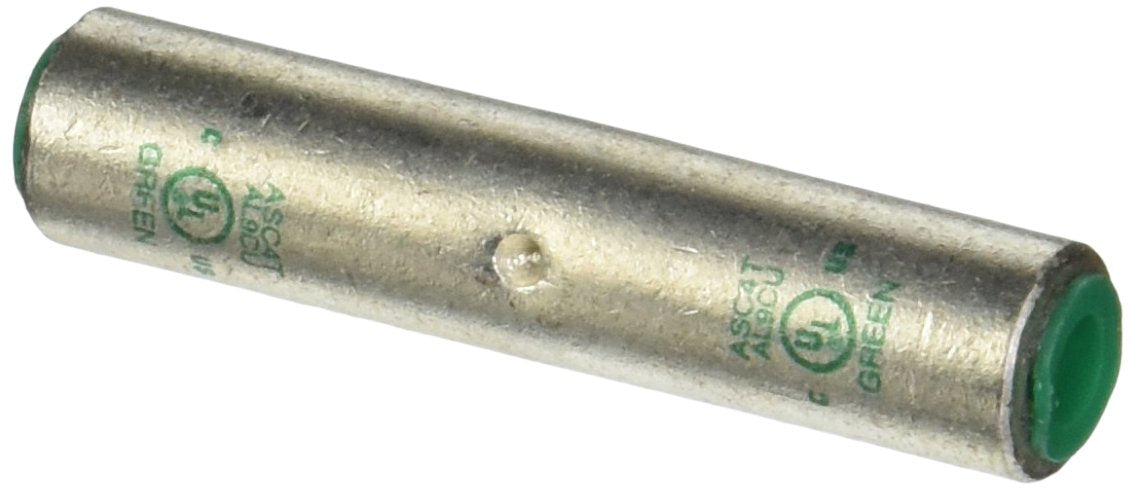

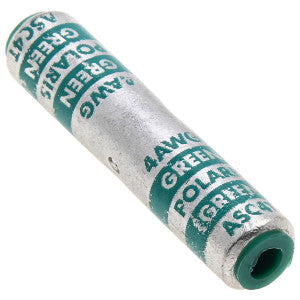

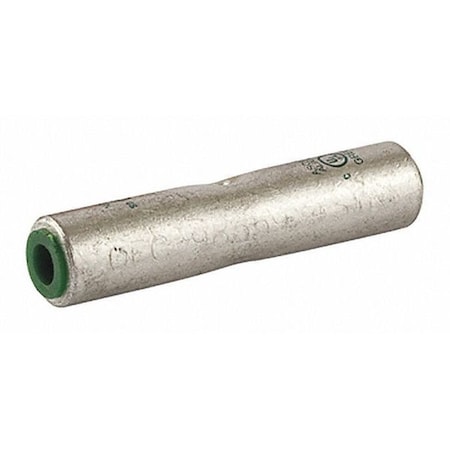

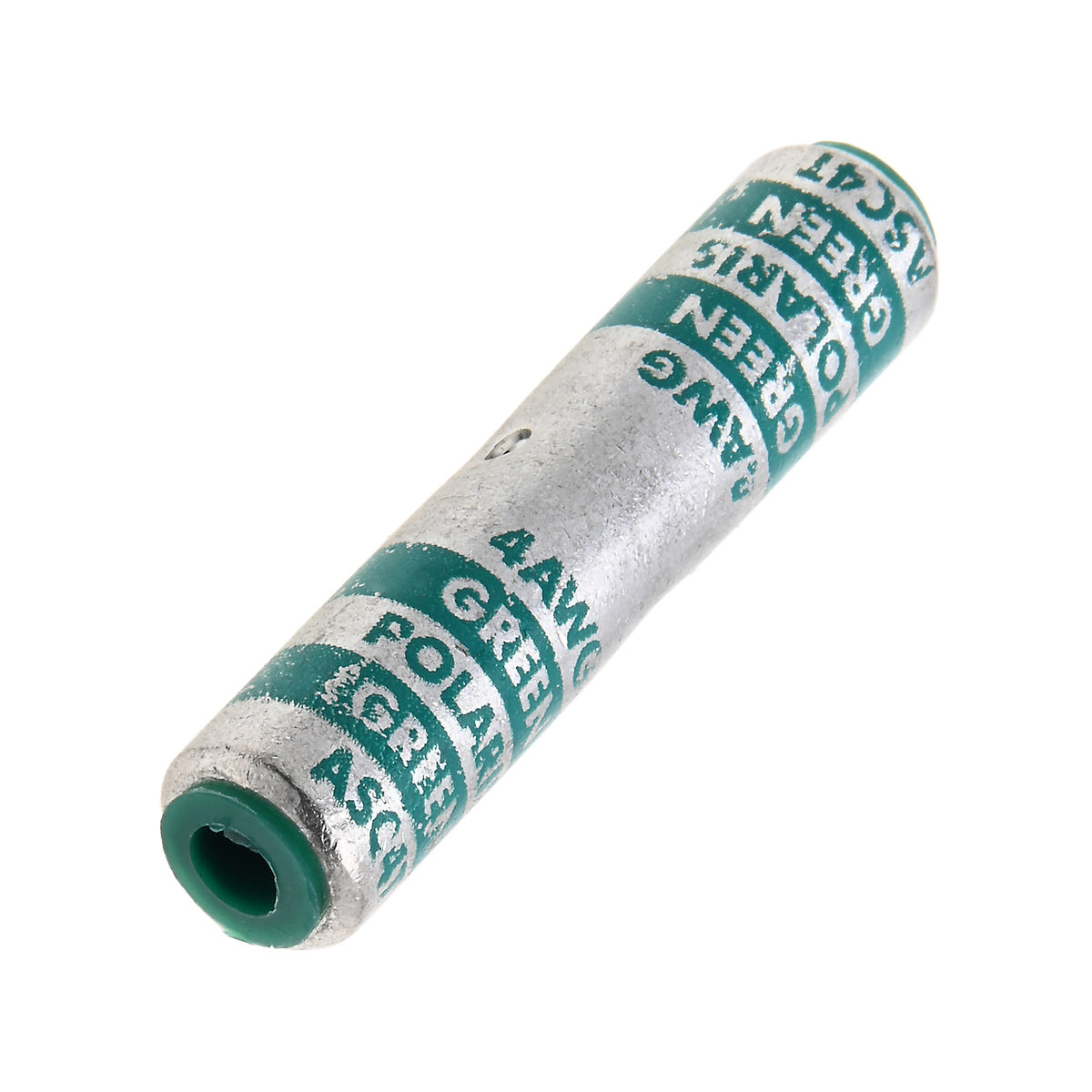

The NSI INDUSTRIES ASC4T is a dual rated aluminum splice for 4 AWG conductors. It is suitable for indoor and outdoor applications with a voltage rating of 600V. Produced from high conductivity aluminum tubing with a center stop to assure proper cable installation. Electro-tin plated for corrosion resistance.

• Dual Rated Aluminum Splice
• Produced from high conductivity aluminum tubing
• Center stop assures proper cable installation

Product Highlights

The ASC4T aluminum compression splice is pre-filled with oxide inhibitor and capped with color coded cap. It is flex rated for use with K, H, G, I, M and DLO cable.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: ASC4T
• Country of Origin: India

Technical Specifications

• Conductor Size: 4 AWG
• Termination/Splice: SPLICE
• Indoor/Outdoor: INDOOR/OUTDOOR
• Voltage: 600V
• Lug Wire Size: 4 AWG
• Wire Range: 4 AWG
• Expanded Wire Range: 4 - 6 AWG
• Color Code: Green
• O.D.: 0.437
• I.D.: 0.248
• Length: 2.000
• Material: Aluminum
• Finish: Tin Plated
• GTIN: 6.62381E+11
• UPC: 662381032010
• EAN: 6.62381E+11
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Aluminum, Copper
• Assortment: Aluminum Compression Splices
• Die Color Code: Green
• Barrel Length: 2
• Application: Terminate, Splice, Tap Power Connectors
• Rated Voltage: 600 V
• No. of Poles: 1
• Color Family: Green
• Brand: NSi Industries
• Model: ASC4T
• Series: ASC-T
• Temperature Rating: 90 deg C
• Type: Standard Barrel Dual Rated
• Voltage Rating: 600 VAC
• Connector Style: Compression Splice
