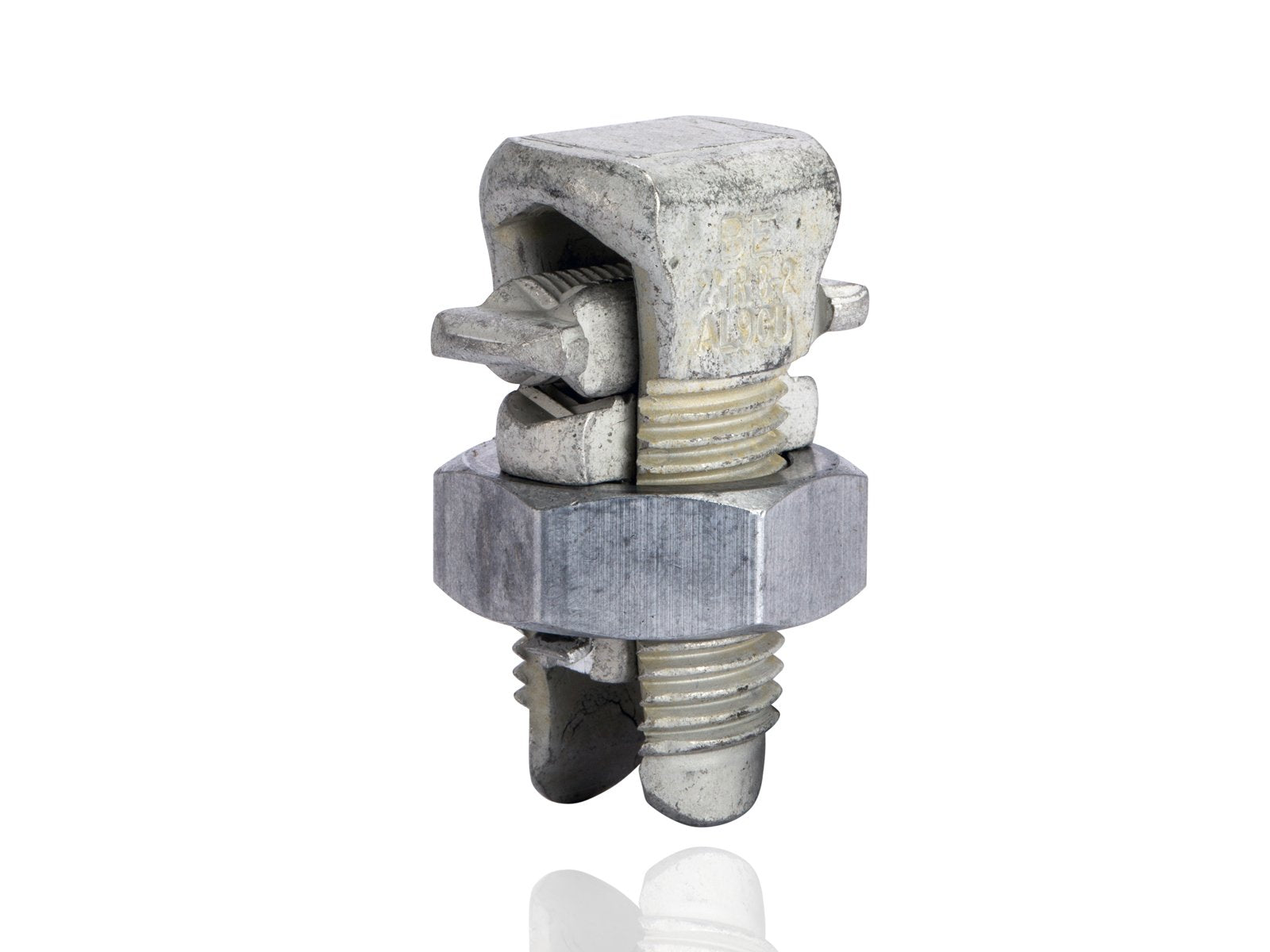

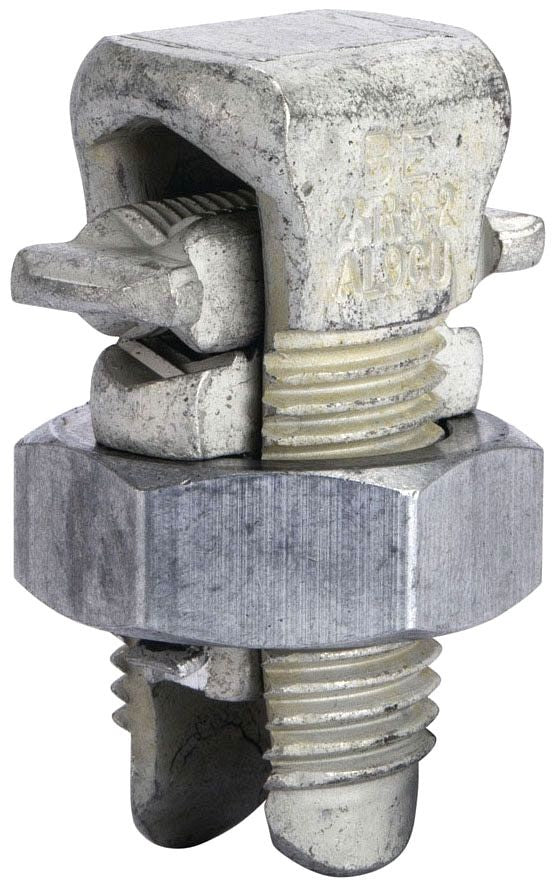

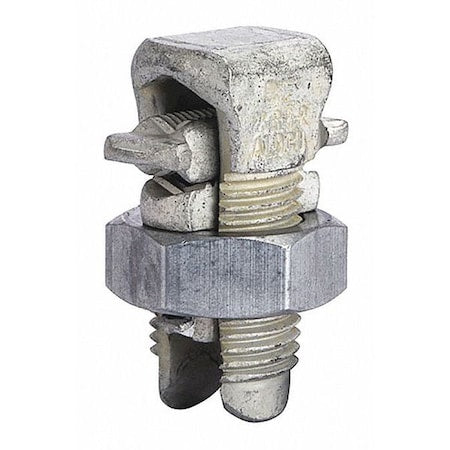

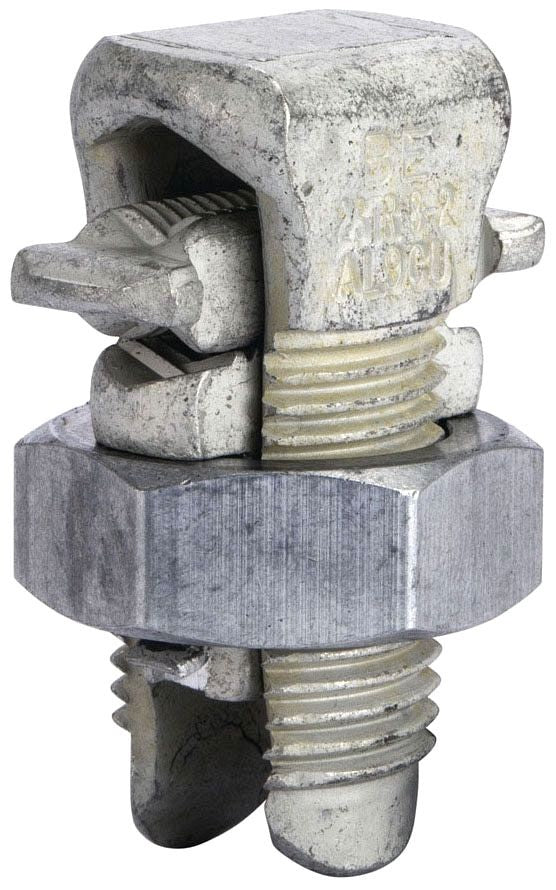

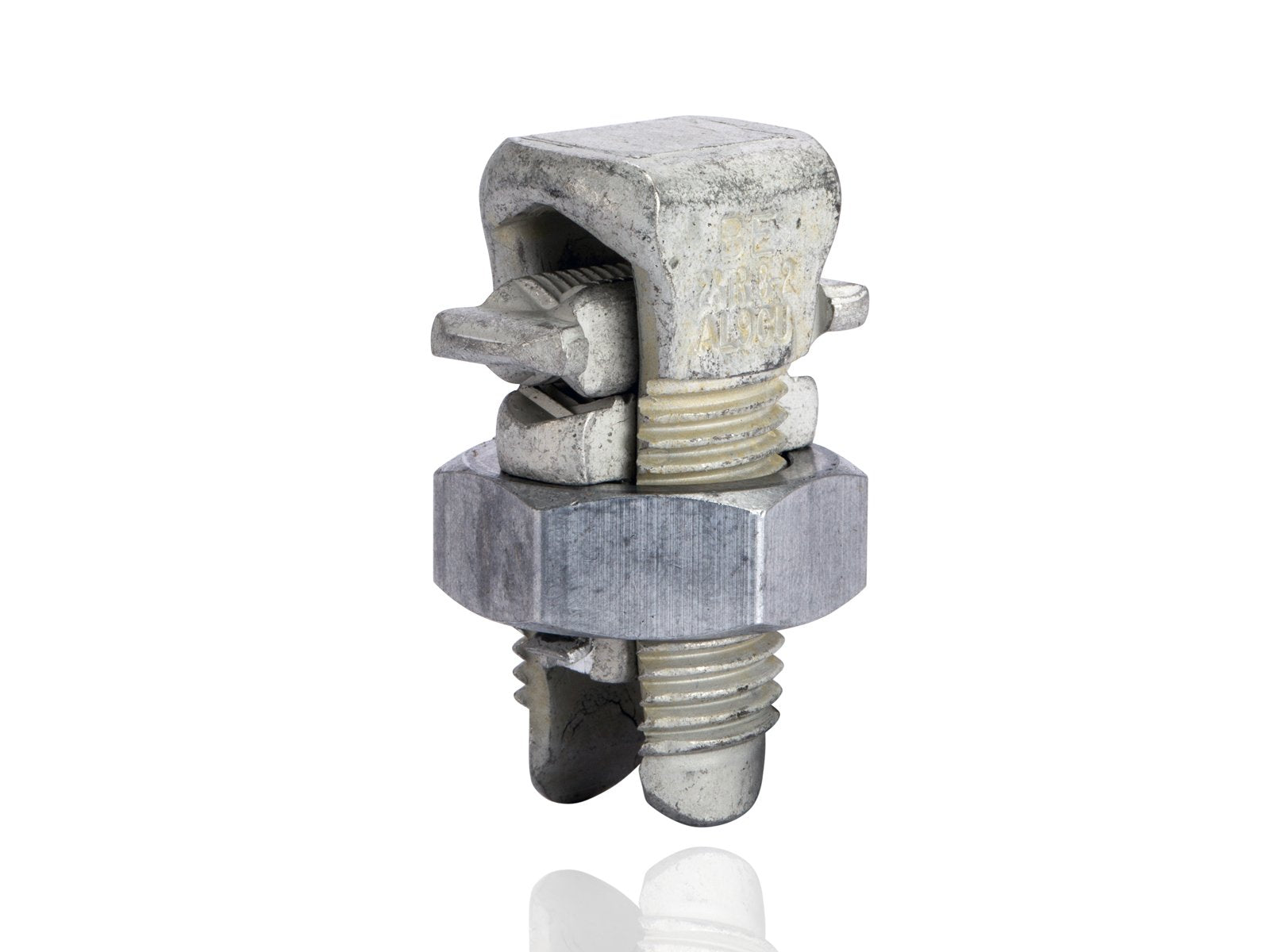

Nsi Industries APS02 Aluminum Split Bolt 600V (8-2 Str)

Product Description

Nsi Industries APS02 is an aluminum split bolt connector designed for termination and splicing of 8-2 stranded conductors. The APS02 is dual rated for aluminum and copper conductor combinations, tin-plated for corrosion resistance, and listed to UL 486A/B. It is rated 600 V and suitable for indoor or outdoor use with a temperature rating up to 90 C and a recommended torque of 275 in-lb.

• Accepts 8 to 2 AWG stranded conductors for termination, splice, and tap applications; two-conductor configuration.
• Tin-plated aluminum alloy construction; dual rated and UL 486A/B listed for aluminum and copper conductor combinations.
• Electrical rating 600 V, temperature rating 90 C, wire diameter range 0.146�0.292 in, recommended torque 275 in-lb.

Product Highlights

Dual-rated tin-plated aluminum split bolt for 8-2 AWG, UL 486A/B listed, 600 V, 90 C, 275 in-lb torque

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: APS02
• Country of Origin: United States

Technical Specifications

• Manufacturer: Nsi Industries
• Brand: Nsi Industries
• MPN: APS02
• Product Type: Aluminum Split Bolt Connector (Dual Rated)
• Material: Tin-plated aluminum alloy
• Finish: Tin plated
• Conductor Size: 8-2 AWG (stranded)
• Number of Conductors: 2
• Wire Diameter Range: 0.146 - 0.292 in
• Dimensions: 1.58 in L x 0.69 in W
• Voltage Rating: 600 V
• Temperature Rating: 90 C
• Torque Rating: 275 in-lb
• Standards/Certifications: UL 486A/B; CSA
• Application: Wire termination, splice, tap
• Country of Origin: United States
• GTIN: 00662381020529
• UPC: 662381020529
