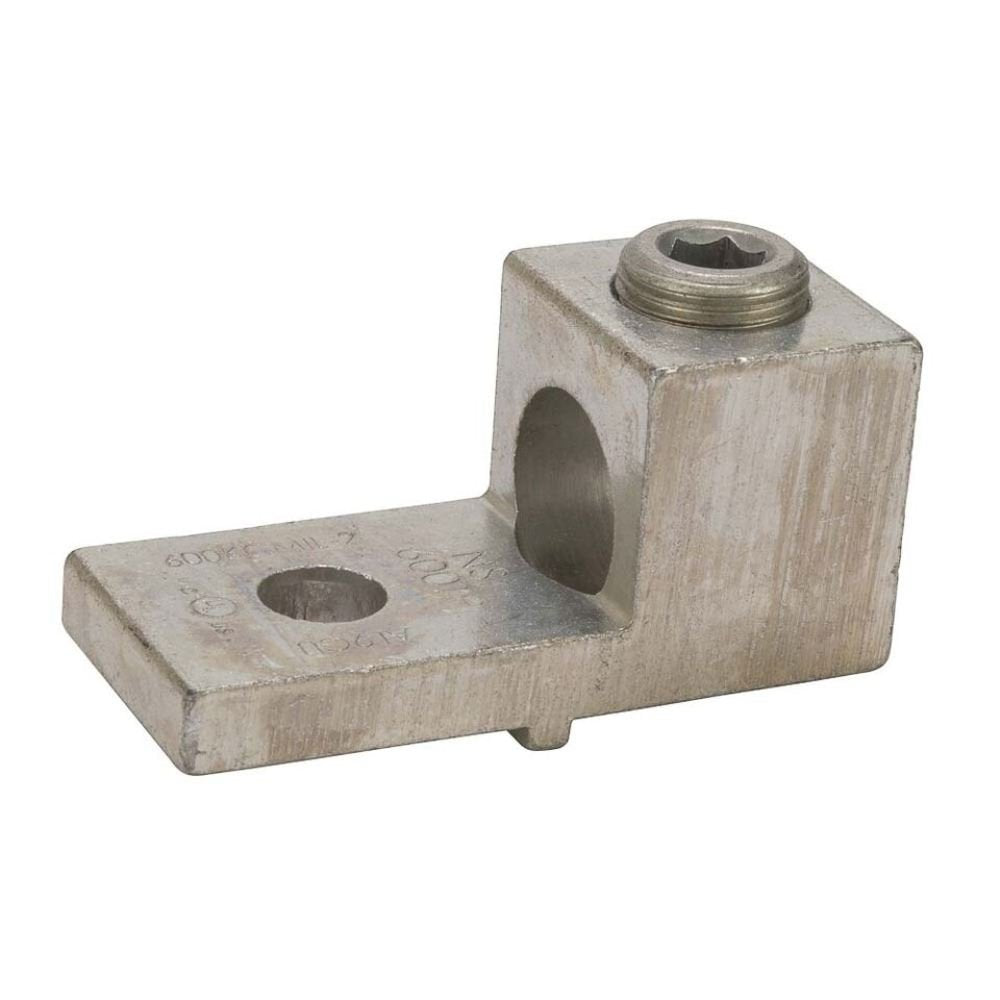

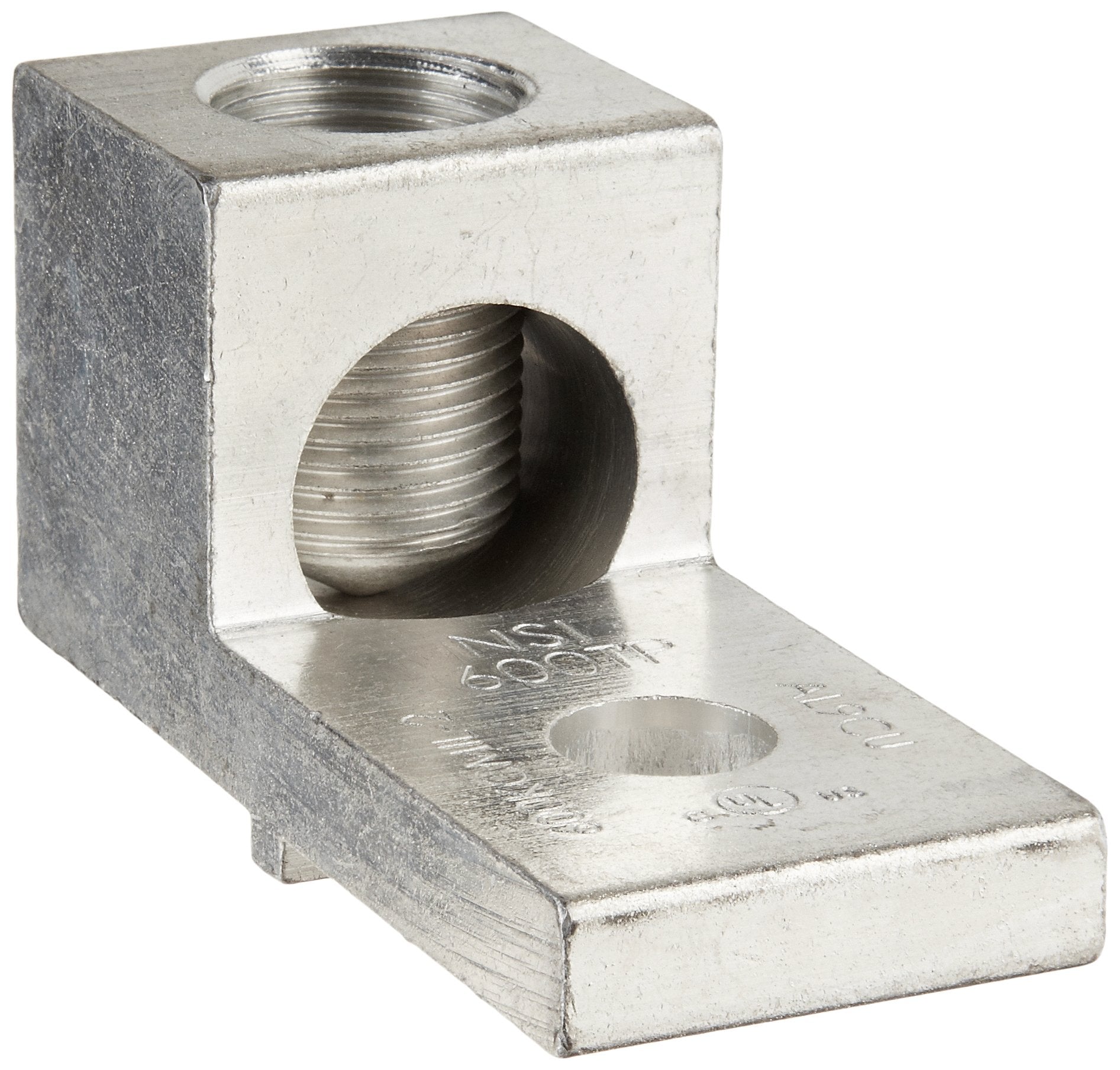

Nsi Industries 600TP Turn Prevent Lug 600V (600 MCM-2)

Product Description

The Nsi Industries 600TP is a set-screw turn-prevent lug rated 600 volts for termination of 600 MCM to 2 AWG conductors. Made from 6061T-6 aluminum alloy and tin plated to reduce contact resistance, the connector accepts copper or aluminum conductors and includes a turn-prevent on the tang to resist rotation. The lug is UL listed and CSA certified and features a 0.531 in mounting hole.

• Set-screw connector with bottom turn-prevent to resist conductor rotation
• 6061T-6 aluminum alloy construction with tin plating for low contact resistance; suitable for copper and aluminum
• Mounting hole 0.531 in; turn-prevent to mounting hole center 0.625 in; overall length 3.125 in

Product Highlights

Set-screw turn-prevent lug for 600 MCM�2 AWG conductors; 6061T-6 aluminum, tin plated; UL listed and CSA certified.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: 600TP
• Country of Origin: United States
