NSI Industries 3002 Button Flush Mount 208-277V 3470-4620W Tungsten

Product Description

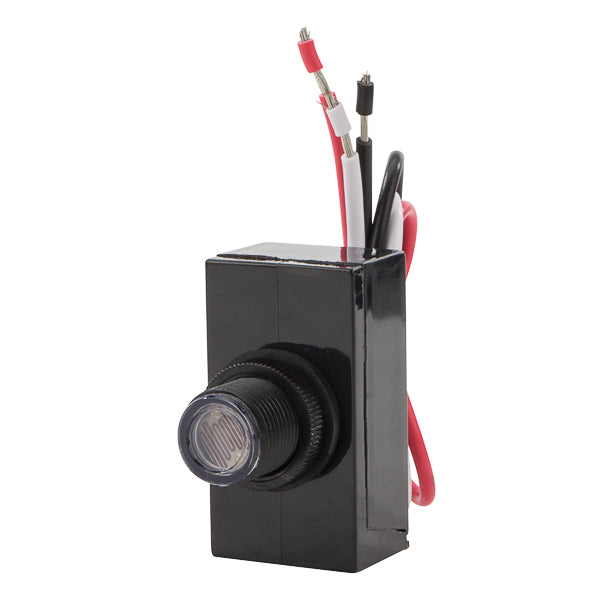

The NSI Industries 3002 is a button flush mount photocontrol designed for 208 to 277 volts. It accommodates loads ranging from 3470 to 4620 watts for tungsten lighting and 2080 to 2770 VA for ballast. The product features a weather-resistant housing for reliable outdoor performance.

• Designed for voltage ranges of 208 to 277 VAC.
• Flush mounting design ensures easy installation in various fixtures.
• Built with Lexan for durability and resistance against environmental factors.

Product Highlights

This photocontrol is ideal for controlling lighting in outdoor settings, such as pole lanterns, walkways, and lawn lighting. Its cadmium sulfide sensor provides a responsive design that adjusts to changing light conditions.

Product Information

Standard Information

• Manufacturer: NSI Industries
• MPN: 3002

Technical Specifications

• Application: Pole Lanterns, Lawn Lighting and Walkways
• Voltage Rating: 208 to 277 VAC
• Ballast Load: 2080 to 2770 VA
• Tungsten Rating: 3470 to 4620 W
• Sensor Type: Cadmium Sulfide Cell
• Timing Range: 2 min
• Dimensions: 2 in H x 2-1/4 in D
• Environmental Conditions: -40 to 140 deg F Operating Temperature
• Frequency Rating: 50/60 Hz
• Material: Lexan
• Mounting Type: Flush
• Sensitivity: 1 to 5 FC (ON)/3 to 15 FC (OFF) Ratio
