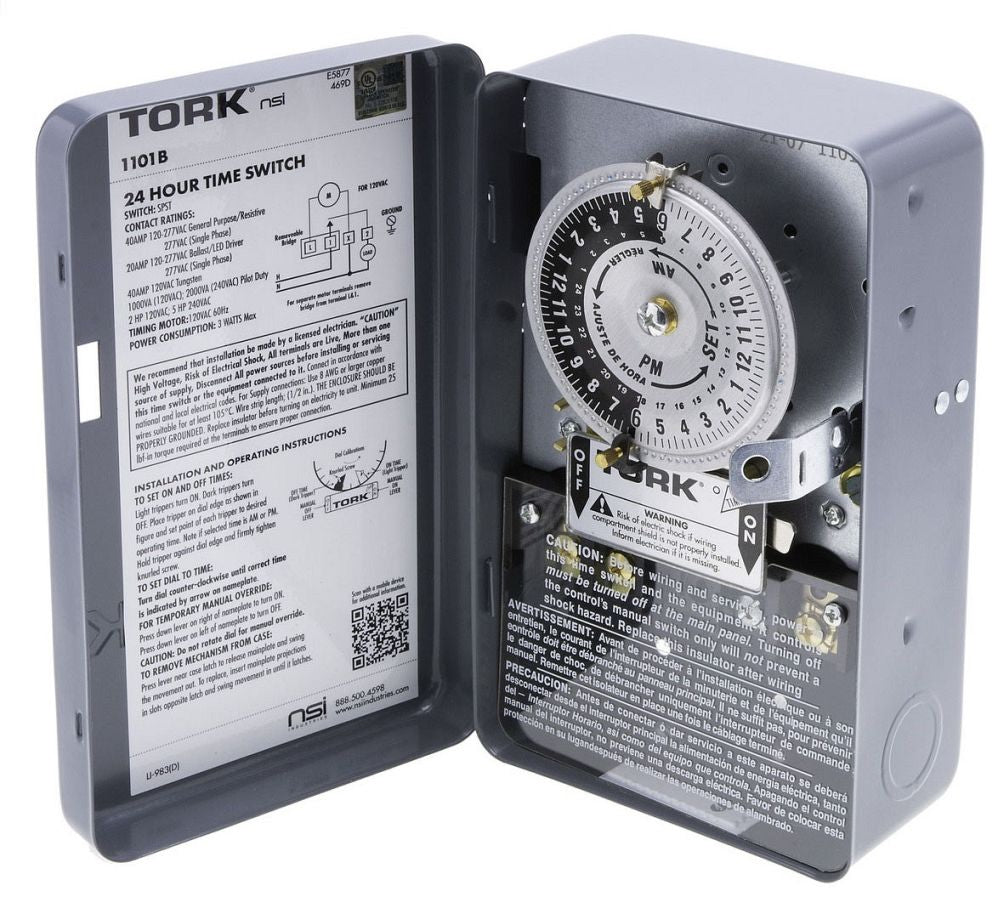

NSI INDUSTRIES 1101B 24 Hour Time Switch 40A 120V SPST Indoor

Product Description

The NSI Industries 1101B is a 24 hour time switch designed for indoor applications. This time switch operates at 120 VAC and is rated for forty amps. It is equipped with a single pole, single throw (SPST) contact mechanism. The compact dimensions of four point six eight seven inches in length, two point nine three seven inches in width, and seven point nine three seven inches in height make it suitable for various installations.

• Rated for forty amps at 120 volts
• SPST contact form for reliable performance
• NEMA 1 enclosure for indoor use

Product Highlights

The NSI Industries 1101B provides precise control over lighting, pumps, signs, air conditioning units, and water heaters. With a robust design and ease of installation, this time switch is ideal for both residential and commercial environments. The temperature rating ranges from minus forty to one hundred sixty-five degrees Fahrenheit, ensuring reliable operation under various conditions.

Product Information

Standard Information

• Type: ON/OFF
• Voltage Rating: 120 VAC

Technical Specifications

• Amperage Rating: 40 A
• Horsepower: 2 hp
• Contact Form: SPST
• Time Setting: 24 hr
• Enclosure Type: NEMA 1
• Operation Mode: 24 hr
• Dimensions: 4.687 in L x 2.937 in W x 7.937 in H
• Temperature Rating: -40 to 165 deg F
