Nsi GL438 CMP Lug Cu Short 4 AWG 3/8 Bolt Size

Product Description

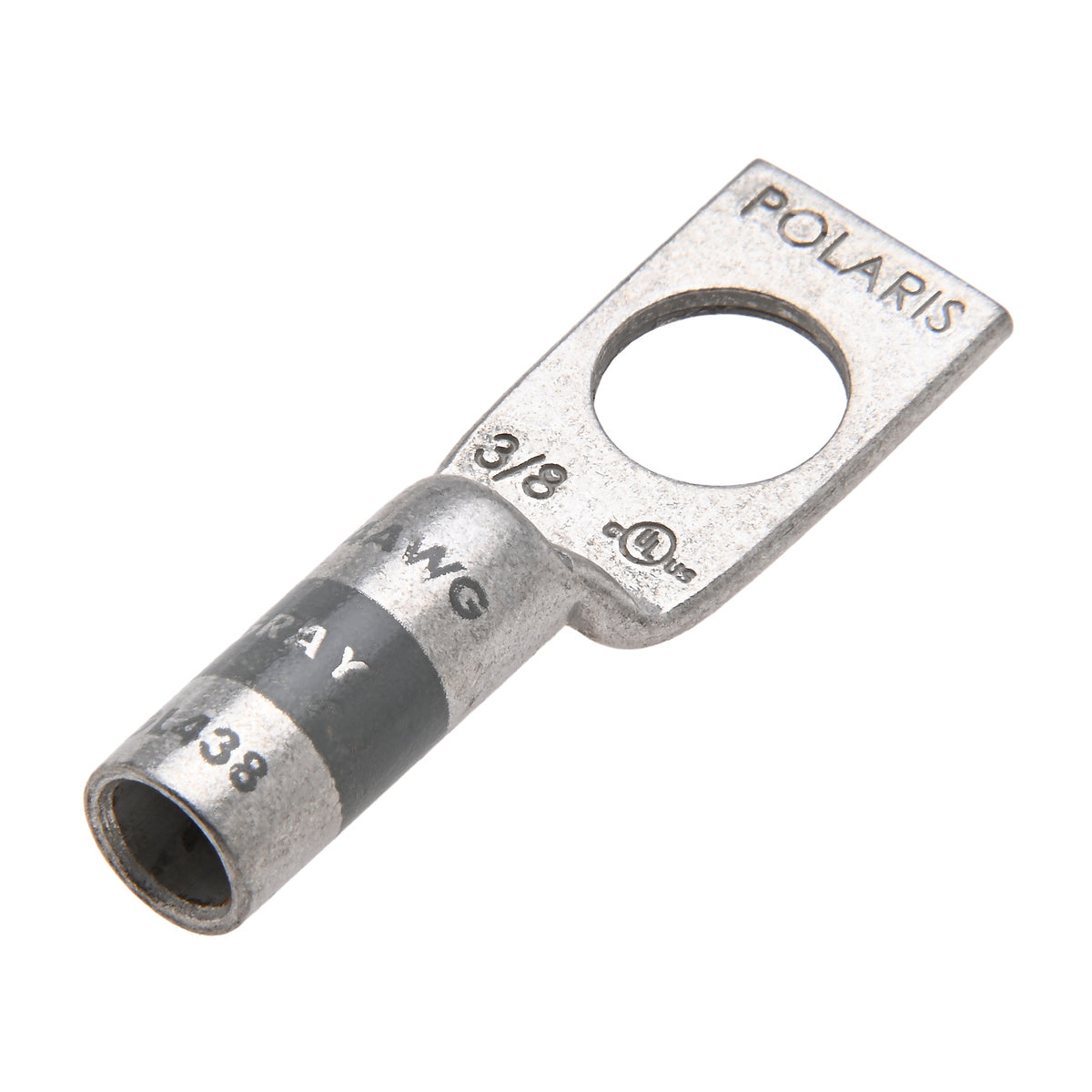

The NSI GL438 POLARIS compression lug creates a permanent, vibration-resistant connection with low contact resistance. It is suitable for power distribution, grounding, and data transmission. Constructed from high conductivity copper tubing with a corrosion-resistant tin-plated finish. The peep hole allows for easy inspection of the termination.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Peep hole allows easy inspection of the termination
• Marked with die index and color coded

Product Highlights

The NSI GL438 copper compression lug offers a dependable, high-performance solution for secure electrical terminations. It is ideal for grounding, bonding, power distribution, and other demanding electrical connections.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: GL438
• Country of Origin: India

Technical Specifications

• Voltage Rating: 35kV
• Material: Copper
• Finish: Tin Plated
• GTIN: 662381036049
• UPC: 662381036049
• EAN: 0662381036049
• UNSPSC: 39121405
• Ul Standard: UL 486A-486B, UL467
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.07
• Tang Length: 0.67
• Wire Range: 4 AWG
• Assortment: Copper Compression Terminations
• Expanded Wire Range: 4 AWG – 6 AWG
• Die Color Code: Gray
• Mounting Bolt Size: 3/8
• Mounting Hole Diameter: 0.41
• Barrel Length: 1
• Stud Size: 3/8 in
• Overall Length: 1-1/2 in
• Catalog ID: NSIGL438
• Color Code: Gray
• Conductor Size: 4/0 AWG
• Temperature Rating: 90 deg C
• Type: Compression Terminal
• Voltage: 600V
• Dimensions: 0.56 in W
• Barrel Style: Short
• Barrel Size: 0.25 in ID x 0.34 in OD
• Standard & Approvals: UL 486 Listed, RoHS Compliant
• Application: For Terminate, Splice and Tap Power Connectors
• Tongue Size: 0.67 in L x 0.56 in W x 0.08 in THK
• Barrel Length/Type: Short
• Lug L x Tongue W: 1.50 x 0.56 in.
• Stud Holes: 1
• Conductor Size - Code: 4 AWG
• Screw/Stud Size: 3/8 in.
• Country of Origin: India - Subject to change
