Nsi C-6 Dual Rated Compression Splice 6 AWG

Product Description

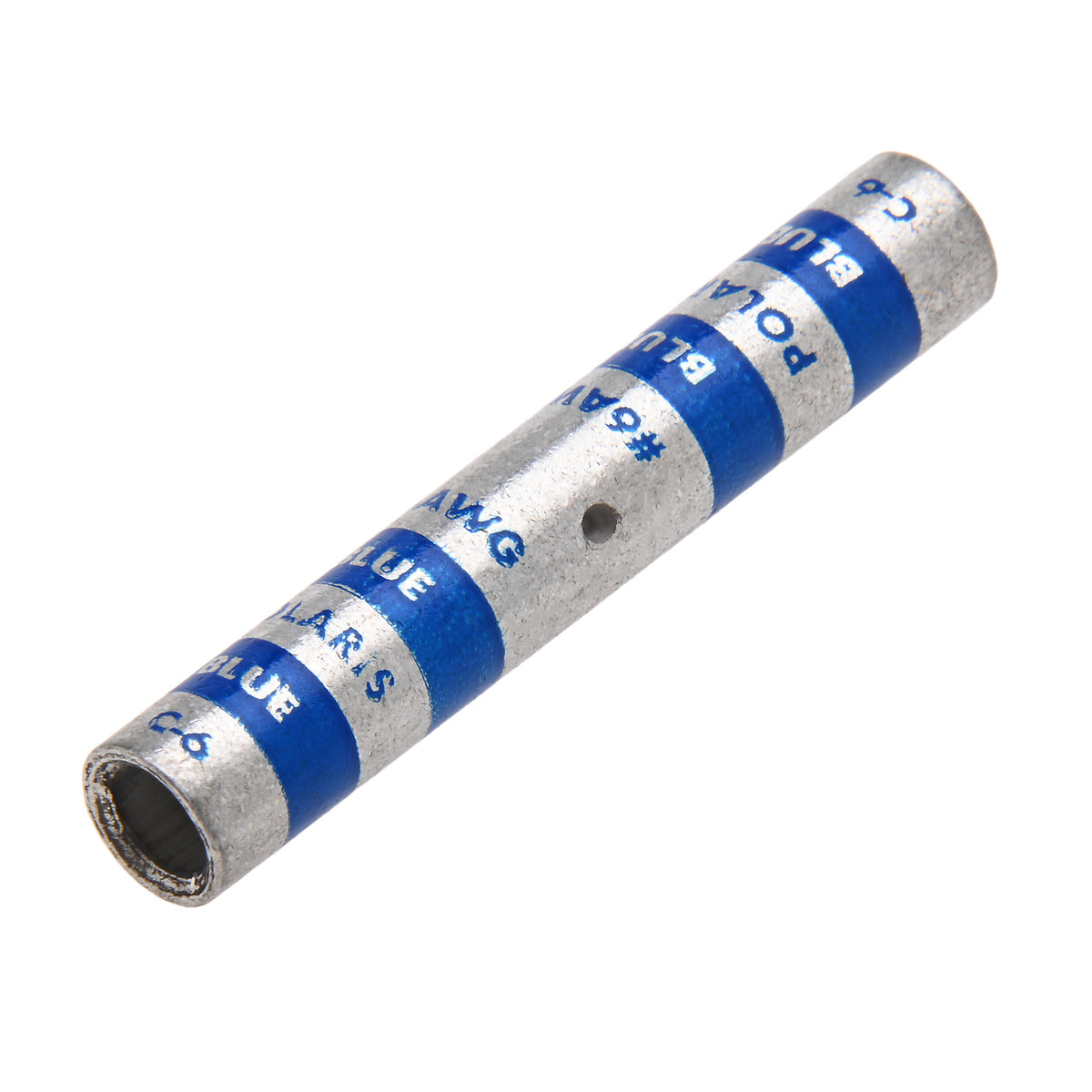

The NSI C-6 dual-rated compression splice is designed for 6 AWG conductors. Constructed from high-conductivity copper tubing and tin-plated for corrosion resistance. Serrations indicate proper crimp locations. It is marked with die index and color coded. Suitable for use at voltages up to 35 kV when properly taped.

• Produced from high conductivity copper tubing
• Serrations indicate proper crimp locations
• Tin-plated to provide corrosion resistance

Product Highlights

This copper compression splice is ideal for making quick in-line connections and repairing damaged wiring.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: C-6

Technical Specifications

• Material: Copper
• Barrel Type: Long
• Color: Blue
• Conductor Size: 6 AWG
• Conductor Type: Stranded Copper
• Finish: Tin Plated
• Temperature Rating: 90 deg C
• Type: Dual Rated
• Voltage Rating: 600 VAC
• Application: For Splice, Terminate, Tap Power Connectors
• Standard & Approvals: UL486 Listed
• Length: 1-3/4 in
• Catalog ID: NSIC-6
• Barrel Size: 0.2 in ID x 0.3 in OD
• GTIN: 6.62381E+11
• UPC: 662381037503
• EAN: 6.62381E+11
• UNSPSC: 39121449
• Ul Standard: UL 486A, UL 467
• Wire Cable Class: Class B, Class C
• Conductor Cu Size Range: 250 MCM – 6 AWG
• Conductor Al Size Range: 250 MCM – 6 AWG
• Wire Range: 6 AWG
• Expanded Wire Range: 6 AWG – 8 AWG
• Die Color Code: Blue
• Barrel Length: 1.75
• Manufacturer: NSi
• Catalog #: C-6
• NorthEast Part #: 227370
