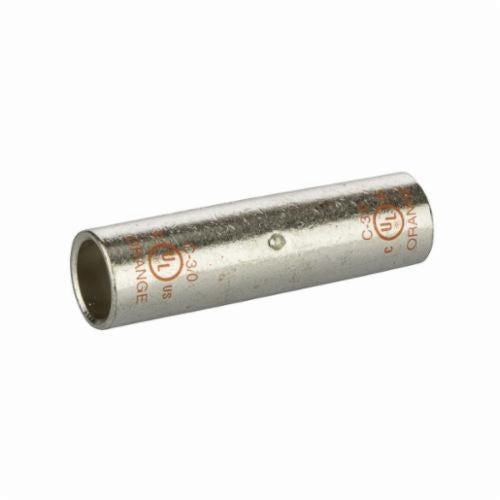

Nsi C-3/0 C Series Long Barrel Compression Splice 3/0 AWG

Product Description

The NSI C-3/0 Long Barrel Tinned Copper Splice is produced from high conductivity copper tubing. Serrations indicate proper crimp locations. Tin-plated to provide corrosion resistance. Marked with die index and color code. Suitable for use at voltages up to 35KV provided connector is properly taped.

• Long Barrel Tinned Copper Splice
• Produced from high conductivity copper tubing
• Serrations indicate proper crimp locations

Product Highlights

The NSI C-3/0 splice is tin-plated to provide corrosion resistance and marked with die index and color code.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: C-3/0
• Country of Origin: United States

Technical Specifications

• Quantity: 1 Count
• Rated: 35KV Max
• Wire Range: 3/0 AWG
• Expanded Wire Range: 3/0 - 2 AWG
• Color Code: Orange
• ID: 0.492
• OD: 0.622
• Length: 2.252 in
• Brand Equivalent: Blackburn CU30 Burndy YS27 Homac C-3/0 Ilsco CTL3/0 Morris Products 94524 Panduit SCL3/0-X Penn Union BBCU-3/0
• Manufacturer: NSi Industries
• Part Number: C-3/0
• Temperature Rating: 90 deg C
• Material: Copper
• Catalog ID: NSIC-3/0
• Conductor Size: 3/0 AWG
• Conductor Type: Stranded Copper
• Finish: Tin Plated
• Voltage Rating: 600 VAC
• Barrel Type: Long
• Standard & Approvals: UL486 Listed
• Application: For Splice, Terminate, Tap Power Connectors
• Type: Dual Rated
