NSI AL500N Double-Hole Compression Lug, 500 MCM, 1/2 Mounts, Pink

Product Description

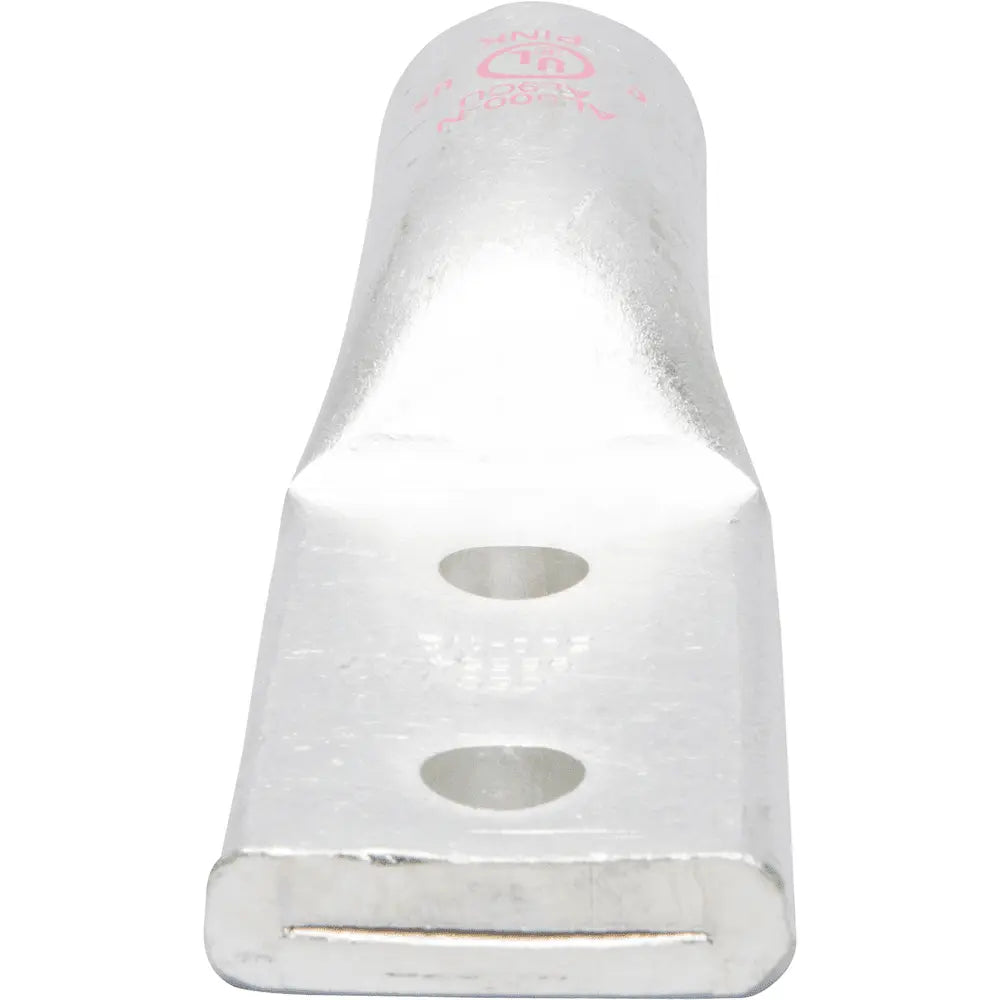

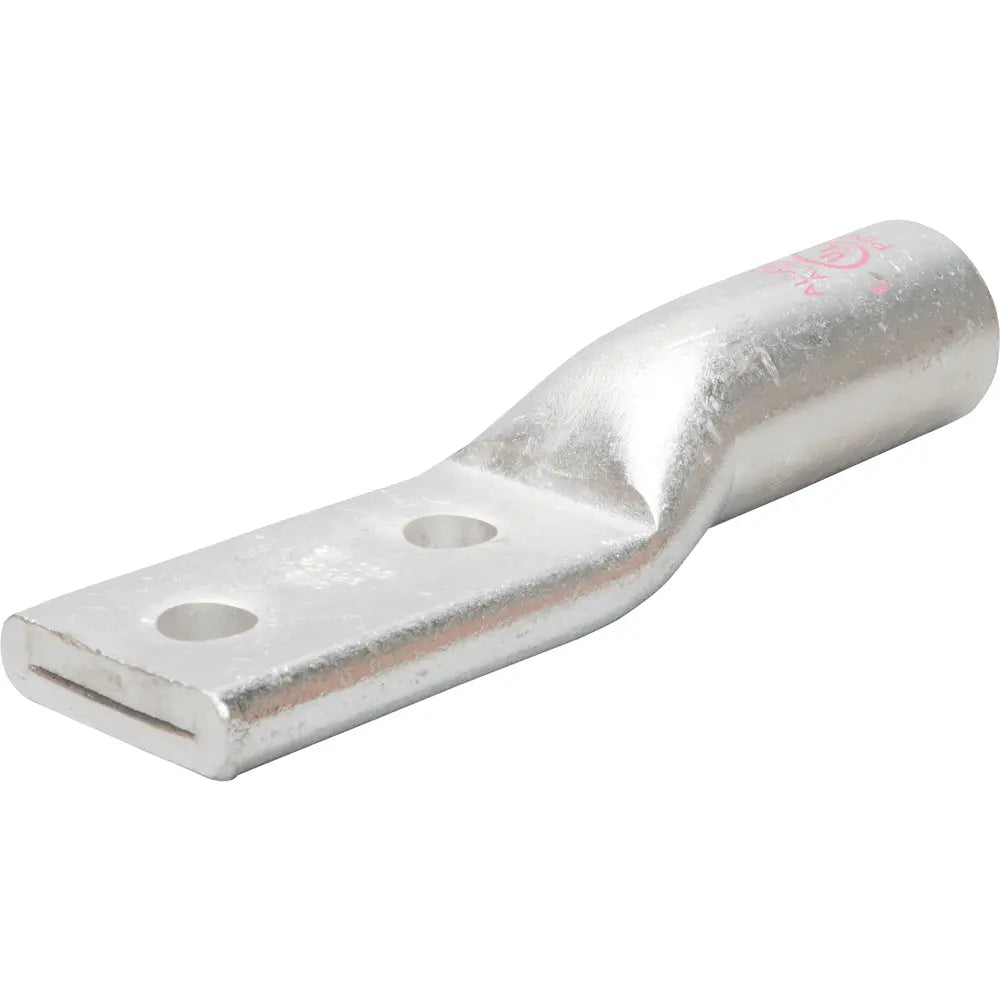

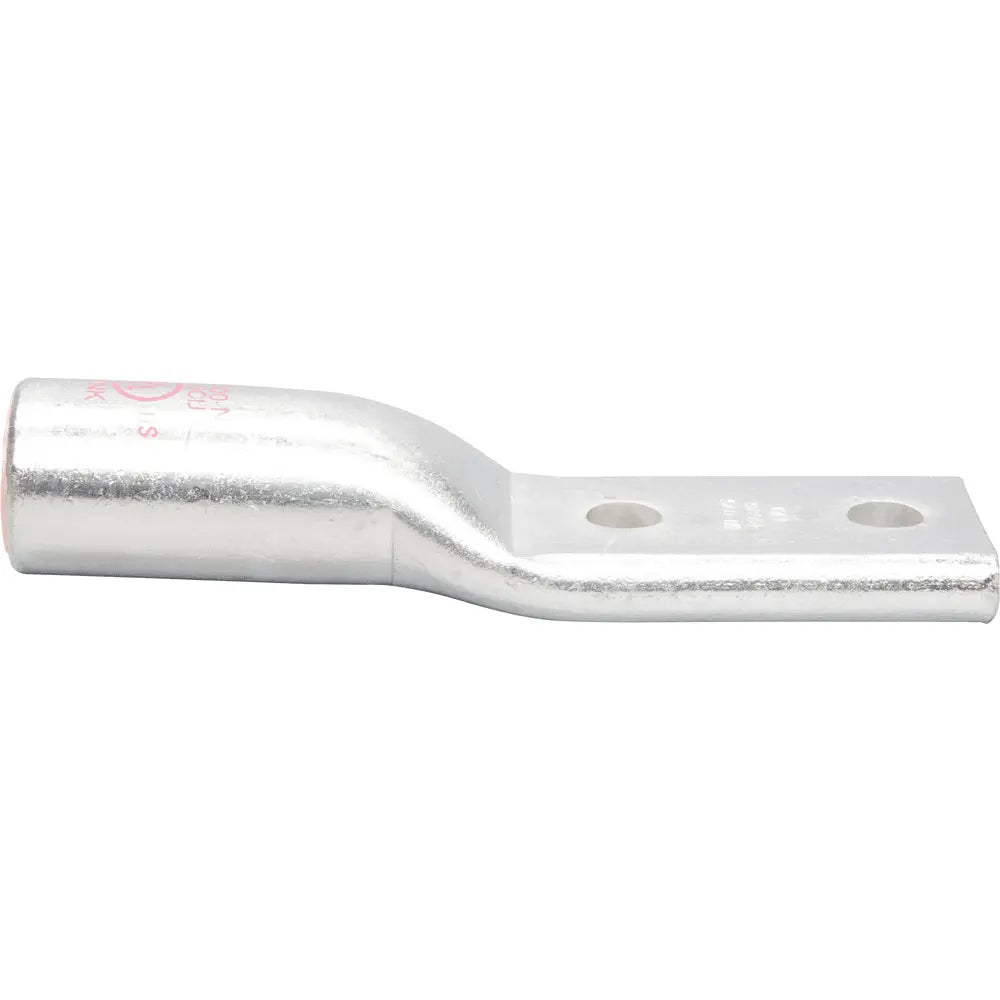

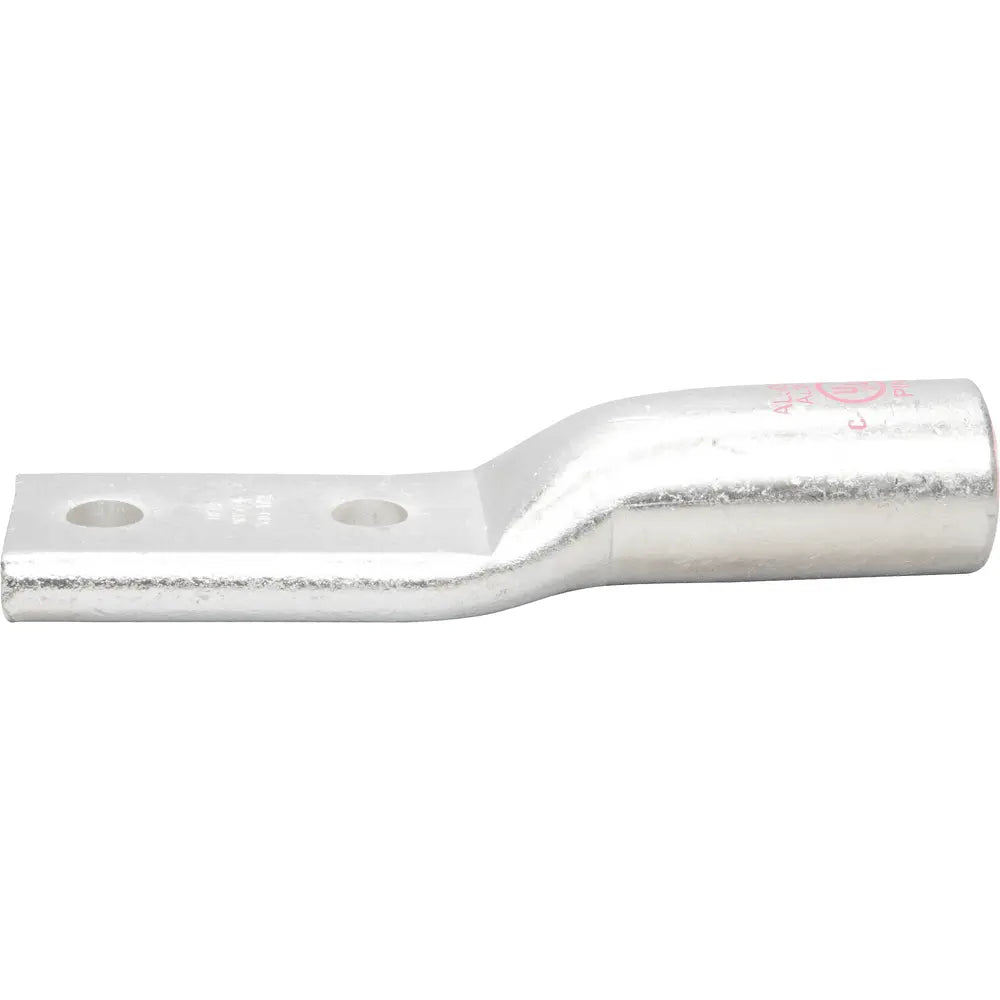

NSI AL500N is a double-hole aluminum barrel compression lug designed for high-current wire applications. This product is suitable for terminating large conductors, up to five hundred MCM. It features a durable aluminum body that is electro-tin plated for added corrosion resistance.

• Safe for use with high-current wires.
• Coded for easy identification and installation.
• Constructed for reliable connections in electrical systems.

Product Highlights

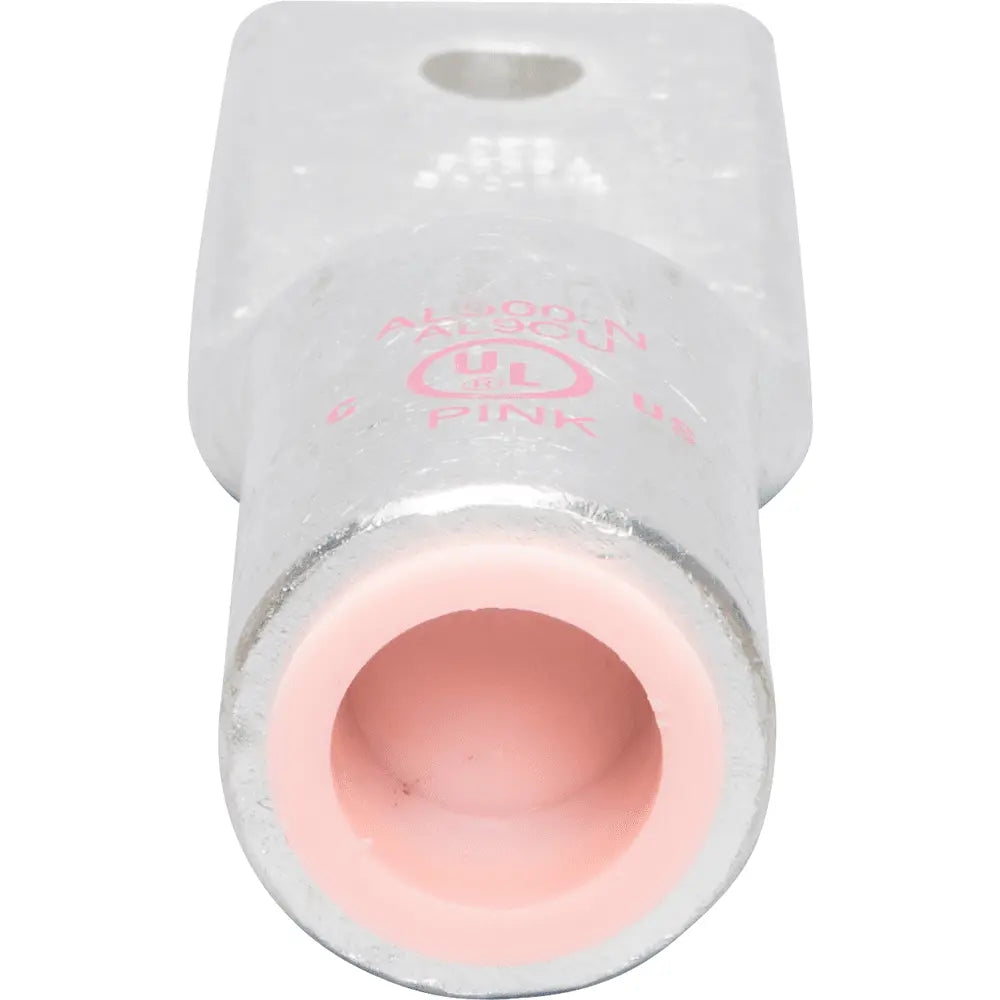

This compression lug is ideal for power distribution and is rated for a maximum voltage of six hundred volts AC. Its design includes a chamfered entry for simple wire insertion and a pre-filled oxide inhibitor to ensure optimal conductivity when installed properly.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Material: Aluminum
• Voltage Rating: 600 VAC
• Conductor Size: 500 kcmil
• Stud Size: 1/2 in
• Length: 6.50 inches
• Width: 1.78 inches
• Weight: 0.52 pounds
• Mounting Type: Bolt-On
• Color: Pink
• Environmental Conditions: Dry Location
