Product Description

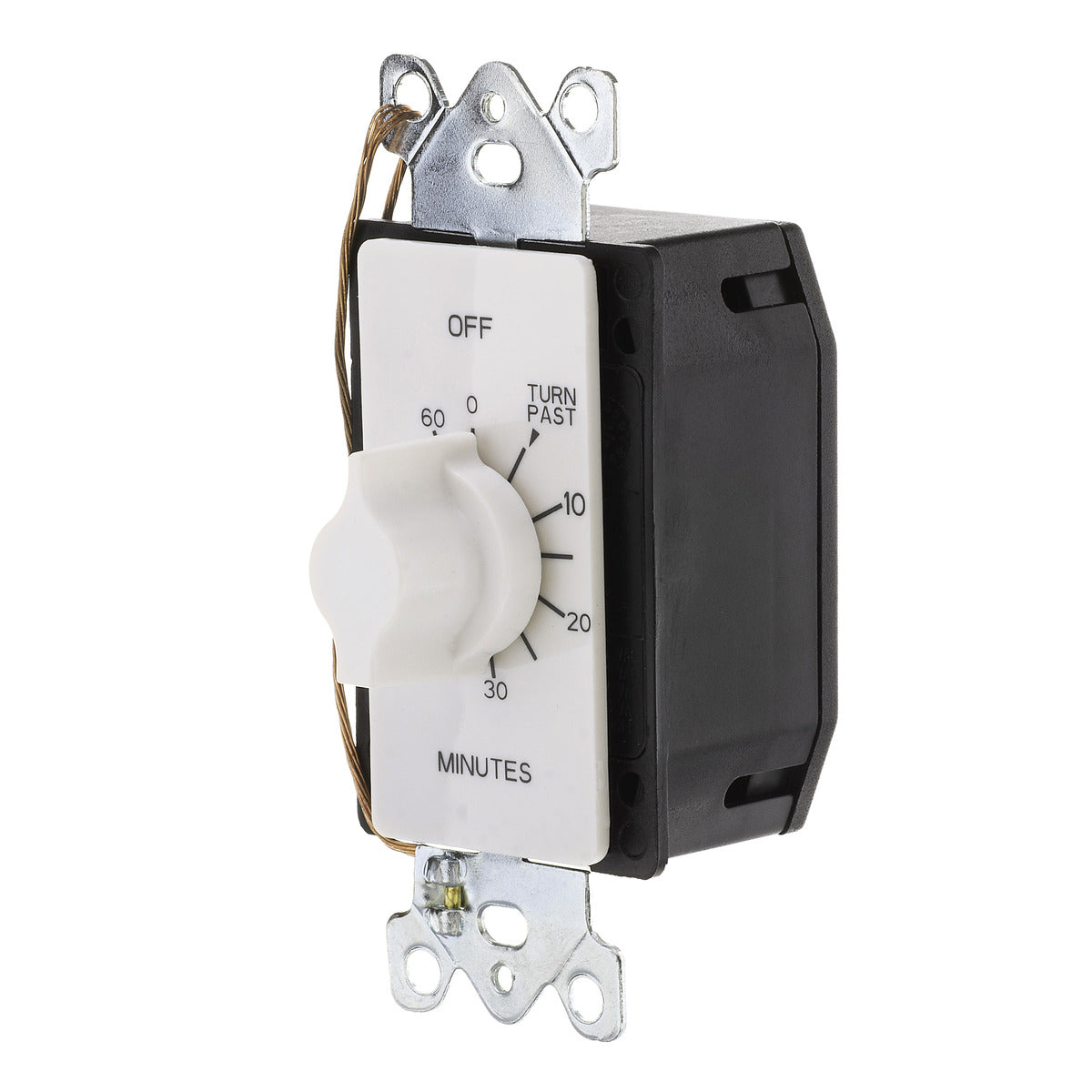

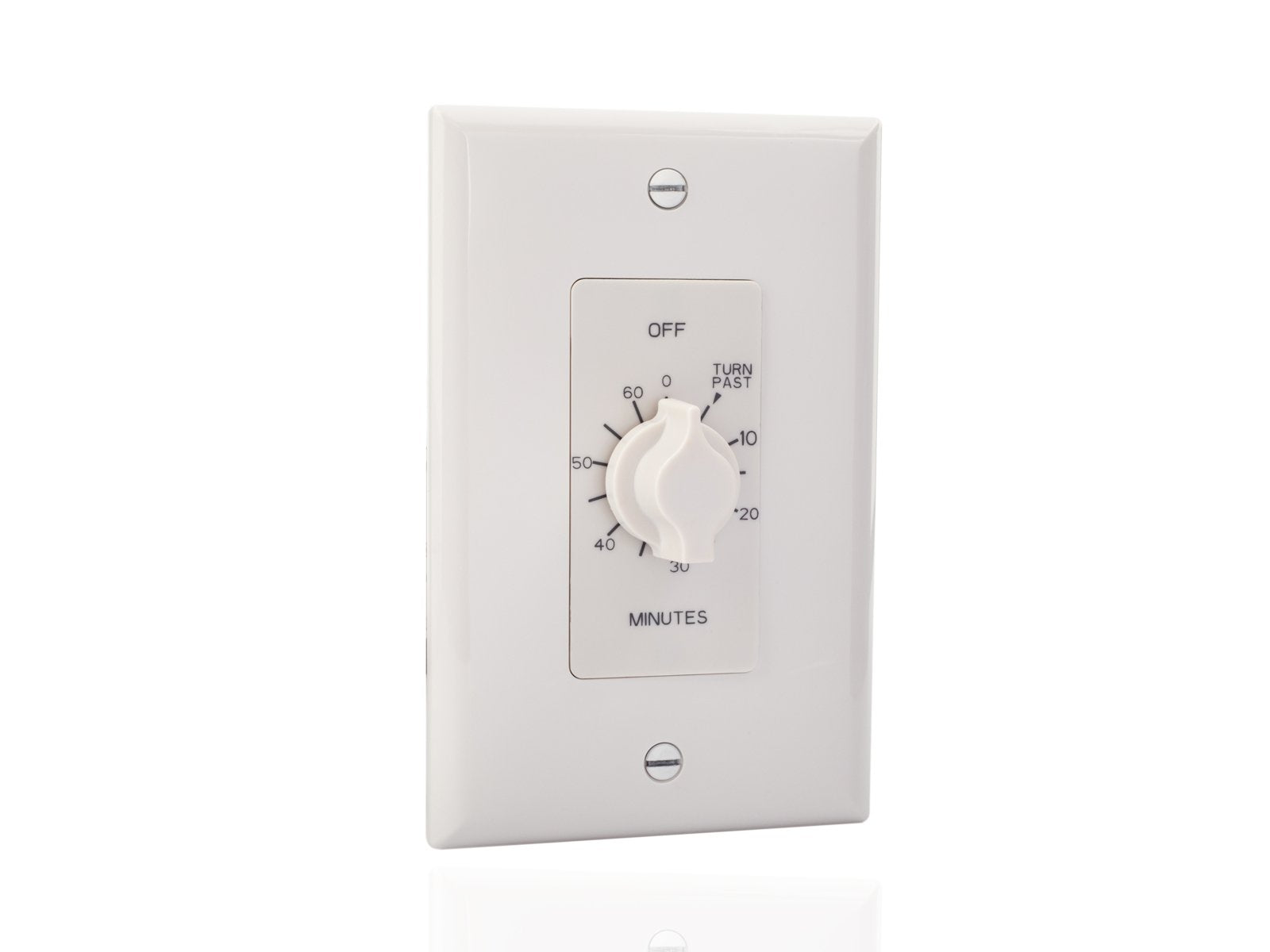

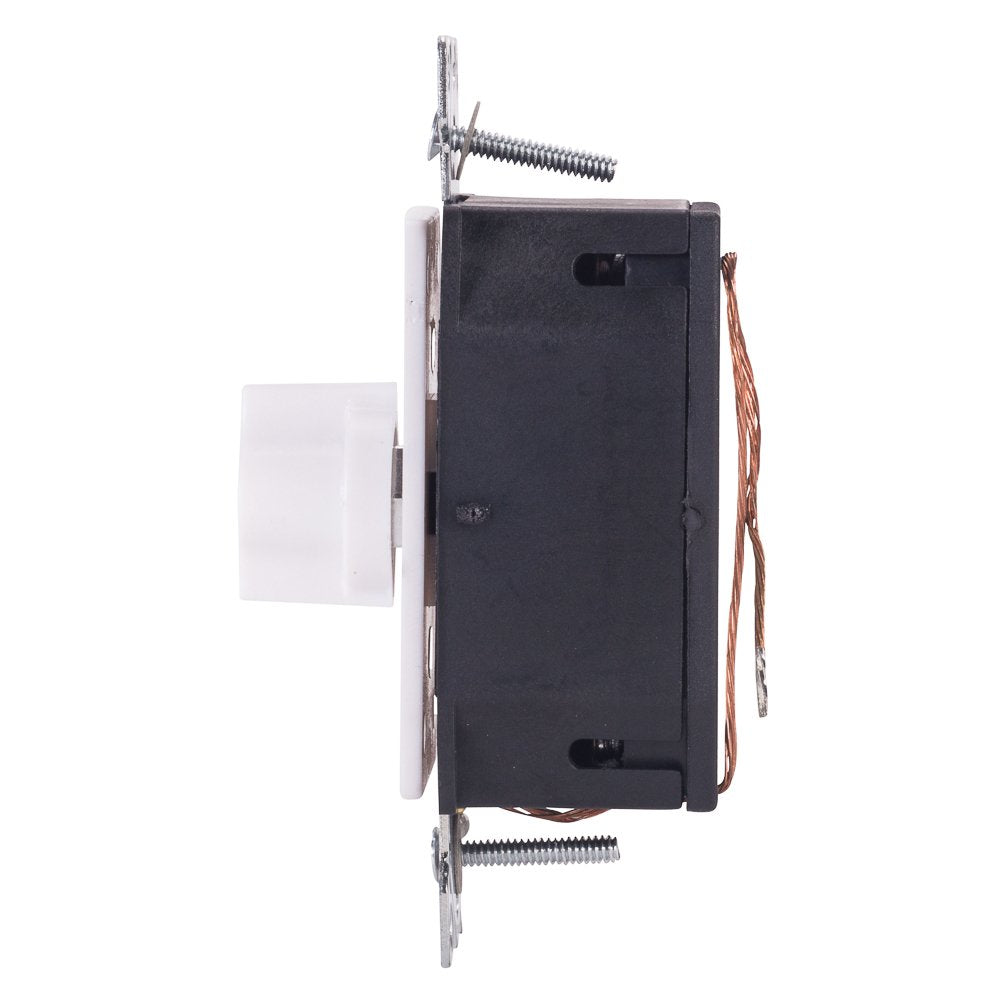

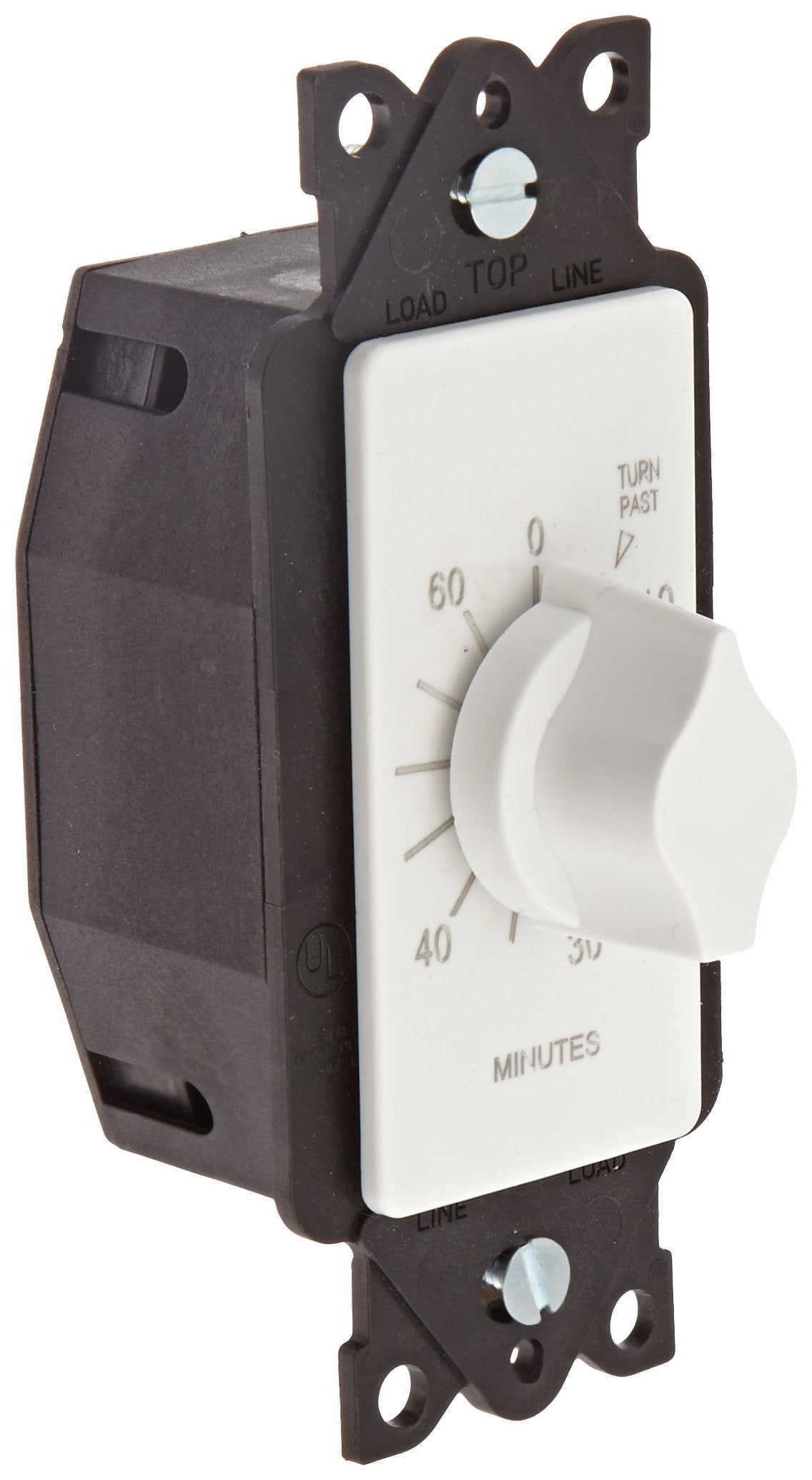

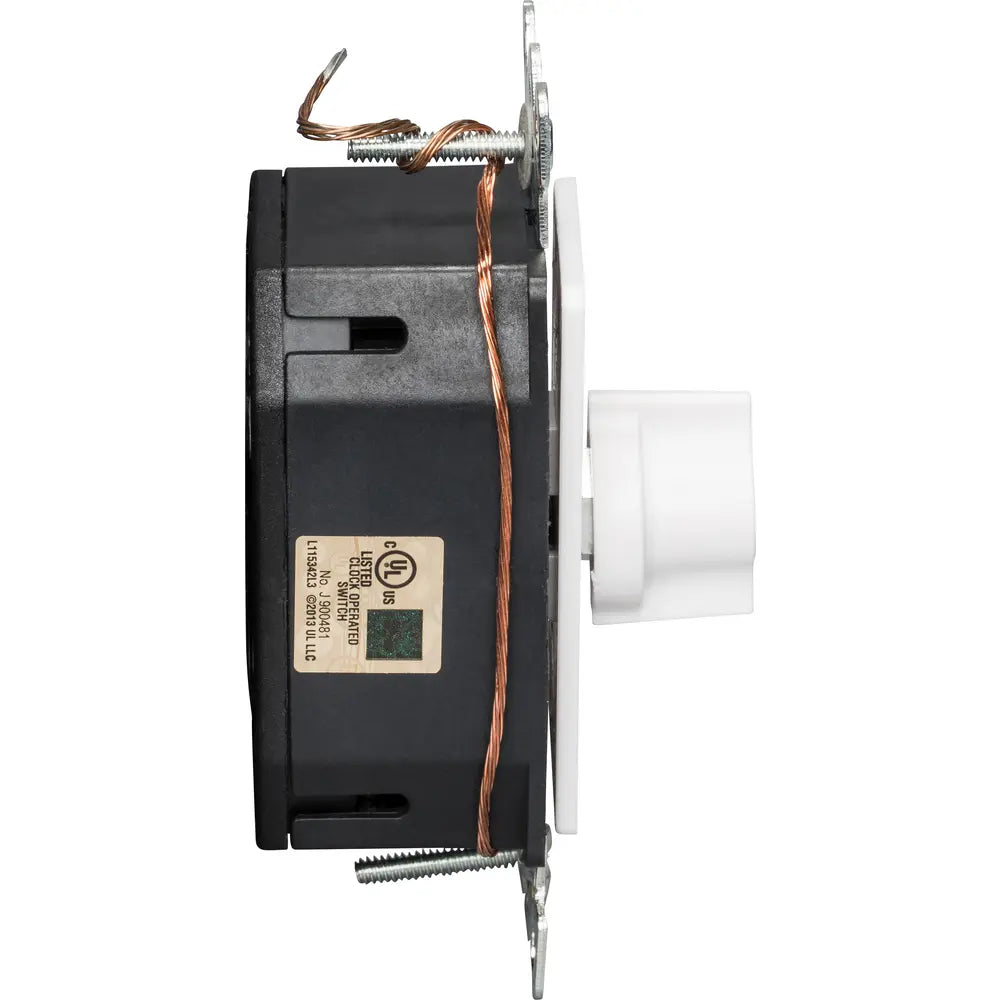

The NSI A560MW TORK In-Wall Timer offers a simple way to control automation for your home or office. The spring-wound twist mechanical knob provides reliable control in a variety of situations from a standard electrical box with in-wall mounting. The timer has a timing range of 0 to 60 minutes and operates at 125/250/277 VAC.
- Provides timing from 0 to 60 minutes
- Suitable for single-phase systems
- Features a screw terminal connection
Product Highlights
This mechanical in-wall countdown timer is cULus certified and ideal for dry locations with operating temperatures between 32°F to 122°F.
Product Information
Standard Information
-
Brand: NSI
-
Manufacturer Part Number: A560MW
-
Country of Origin: CN
Technical Specifications
-
Type: Mechanical In-Wall Countdown Timers
-
Phase: Single-Phase
-
Width: 3 Inches
-
Height: 5 Inches
-
Mounting Type: Surface
-
Standard: cULus
-
Connection: Screw terminal
-
Initiation: On/Off
-
Timing Range: 0 to 60 Minutes
-
Number Of Poles: Single-Pole
-
Frequency Rating: 50/60 Hertz
-
Contact Configuration: SPDT
-
Operating Temperature: 32°F to 122°F
-
Environmental Conditions: Dry Location
-
Amperage Rating: 20/10 A
-
Voltage Rating: 125/250/277 VAC
-
Horsepower: 1 hp, 2 hp hp
-
Temperature Rating: 32 to 122 deg F
-
Time Setting: 60 min
-
Terminal Size: 12 AWG
-
Application: Whole House Fan, Indoor/Outdoor Lighting, Bathroom Fan, Self Storage Control
