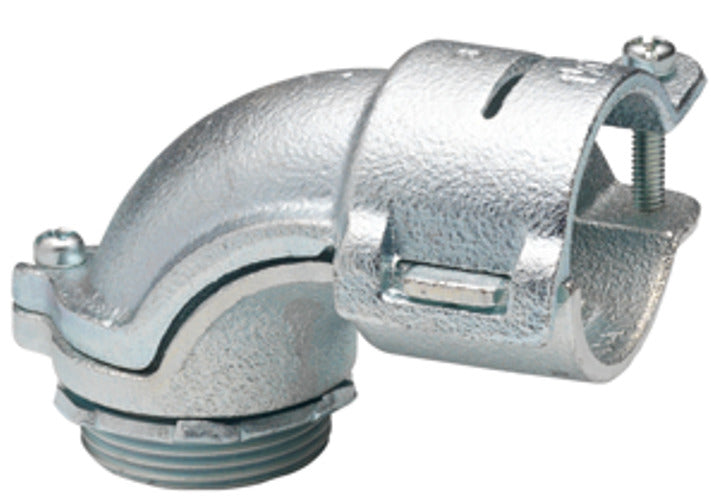

Nsi 806 Insulated 90-Degree Connector 3/4 inches

Product Description

The NSI 806 is an insulated 90-degree connector used to join flexible metal conduit to an electrical box or enclosure at a 90-degree angle. Its insulated throat protects inner wiring up to a temperature of 105°C. It is suitable for use with flex trade size 3/4" FMC when installing through a 3/4" knockout.

• Insulated throat protects inner wiring up to 105°C
• For use with flex trade size 3/4" FMC when installing through a 3/4" knockout
• Connects flexible metal conduit to an electrical box or enclosure at a 90-degree angle

Product Highlights

The NSI 806 connector is made of heavy-duty malleable iron and is UL listed and RoHS compliant.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 806

Technical Specifications

• Material: Malleable Iron
• Finish: Zinc Plated
• Pack Qty: 50
• GTIN: 00781747108067
• UPC: 781747108067
• EAN: 0781747108067
• UNSPSC: 39121419
• Ul Standard: UL-514B
• Application: 90 Degrees fitting with cover for connecting flexible metal conduit to box or enclosure. Plastic insulator rated 105 degree C.
