Nsi 78270ts Bat Toggle Switch DPDT 1-1/2, 2 hp

Product Description

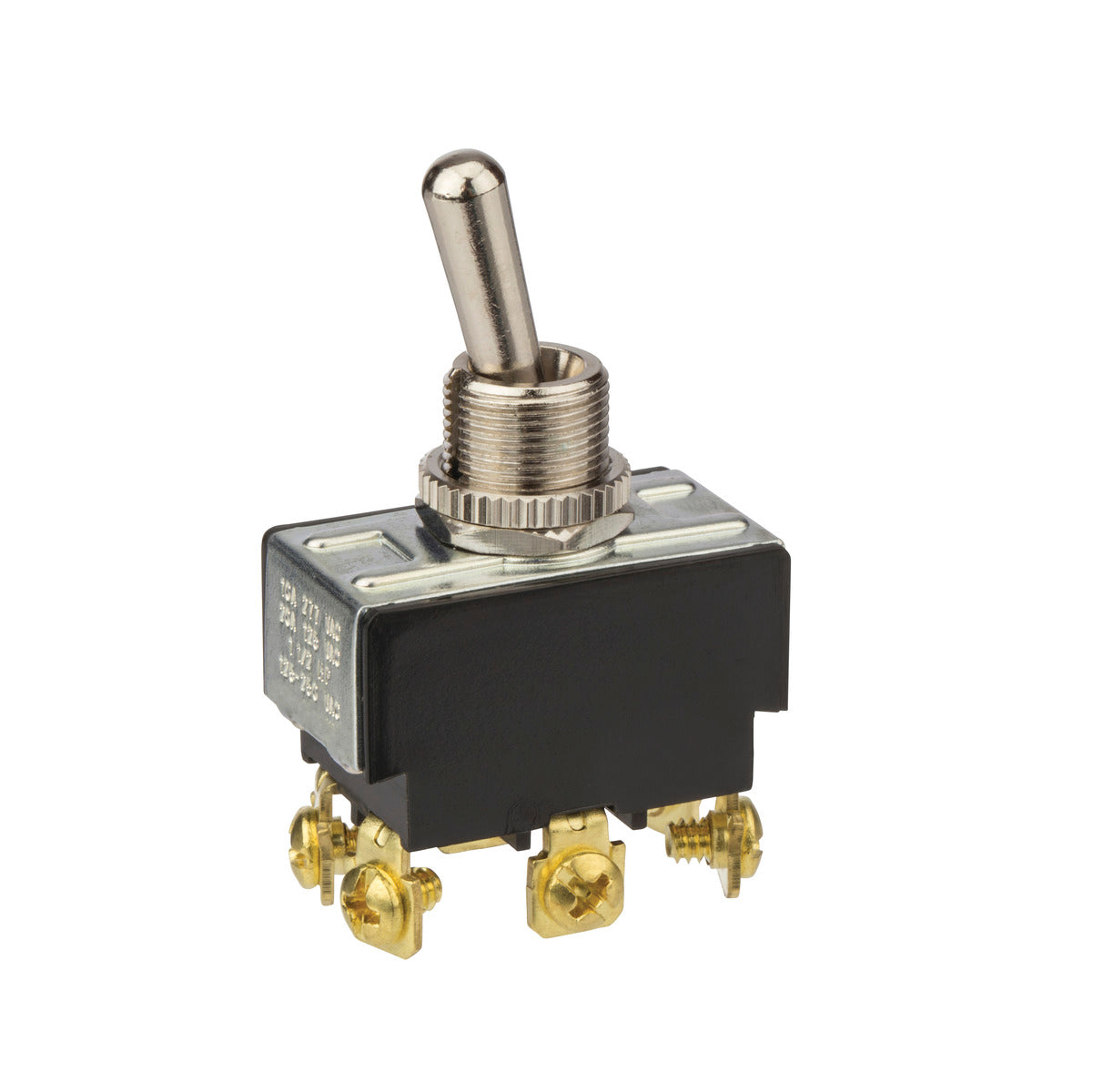

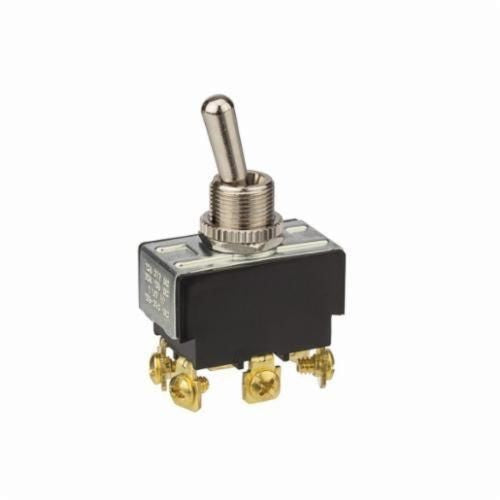

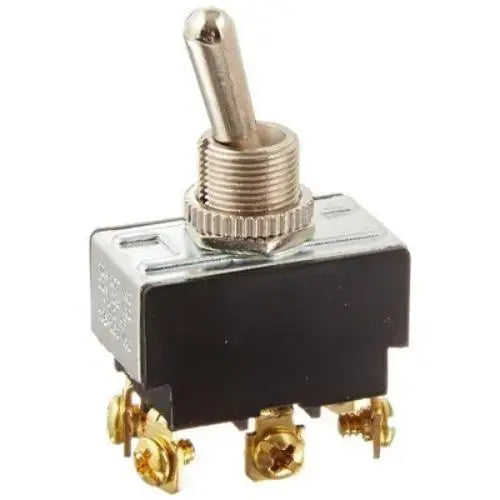

The NSI 78270TS is a bat toggle switch with a DPDT contact configuration. Rated at 125/250 VAC and 20/10 A, with a power rating of 1-1/2, 2 hp, this switch is suitable for motor and equipment control. It features a nickel-plated brass bat handle and screw terminals for secure connections.

• Nickel plated brass bat handle
• ON/ON (maintained)
• DPDT contact configuration

Product Highlights

Durable toggle switch for motor-equipment control, featuring a robust design and reliable performance.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 78270TS

Technical Specifications

• Mounting: Snap-In
• Number Of Poles: 2
• Actuator: Toggle
• Amperage Rating: 20/10 A
• Contact Configuration: DPDT
• Contact Rating: 20 A at 125 VAC, 10 A at 250 VAC
• Power Rating: 1-1/2 hp/2 hp
• Terminal Type: Screw
• Voltage Rating: 125/250 VAC
• Application: Motor-Equipment Control
• Standard & Approvals: CSA Certified, RU Recognized
• Brand: NSI
• Maximum Amperage: 20 A
• Type: Toggle Switch
• Material: Brass/Nickel
• Poles: 2
• Amps: 10, 20
• Color: Metallic
• Volts AC: 120, 240
