Nsi 78170TS Toggle Switch Momentary SPST Off-(On)

Product Description

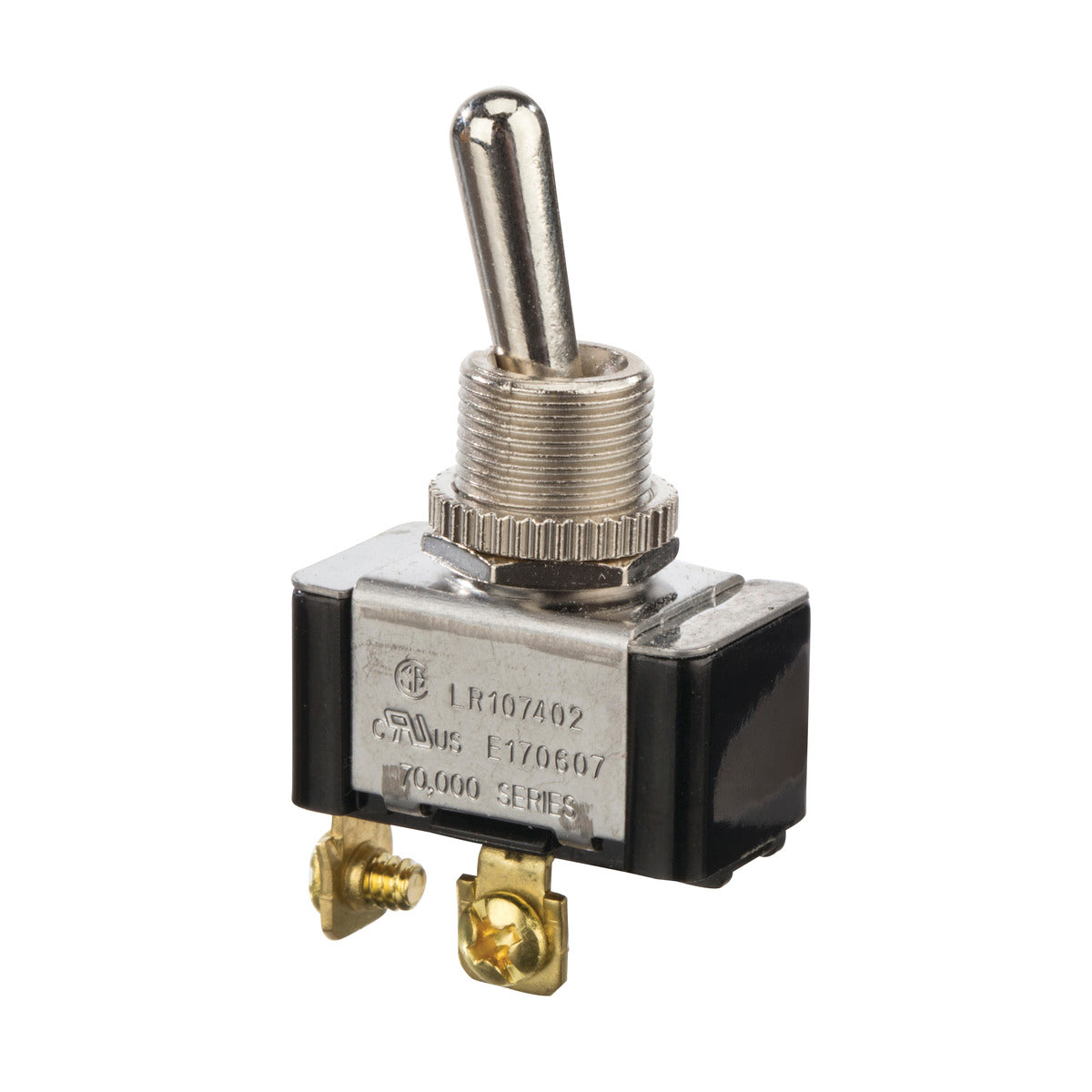

The NSI 78170TS is a toggle switch with momentary SPST Off-(On) functionality. This switch is designed for motor equipment control. It features a nickel-plated brass bat handle and screw terminal connections. The switch has a contact rating of 15A at 125VAC and 10A at 250VAC.

• Nickel plated brass bat handle
• OFF/ON (momentary/maintained)
• For motor equipment control

Product Highlights

The NSI 78170TS toggle switch is ideal for motor equipment control with momentary Off-(On) SPST function.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 78170TS
• Country of Origin: CN

Technical Specifications

• CAT. NO.: 78170TS
• UPC CODE: 78170
• CIRCUIT FUNCTIONS: OFF (ON)
• POLES & THROWS: SPST
• AMPS 125 VAC: 15
• AMPS 250 VAC: 10
• ACTUATOR STYLE: BAT
• ACTUATOR MATERIAL: BRASS/NICKEL
• CONN. TYPE: SCREWS
• ACTUATOR: Bat
• Contact Configuration: SPST
• Contact Rating: 15A (125VAC) to 10A (250VAC)
• Mounting: Snap-Mount
• Standards: UL Listed & CSA Certified
• Brand: NSI
• Model: 78170TS
• Number Of Poles: 1
• Power Rating: 3/4 hp
• Terminal Type: Screw
• Application: Motor-Equipment Control
• Material: Brass/Nickel
• Number of Poles: 1
• Country of Origin: CN, TW
• Manufacturer Name: NSi Industries
• Voltage Rating: 125/250VAC
• Amperage Rating: 15/10A
