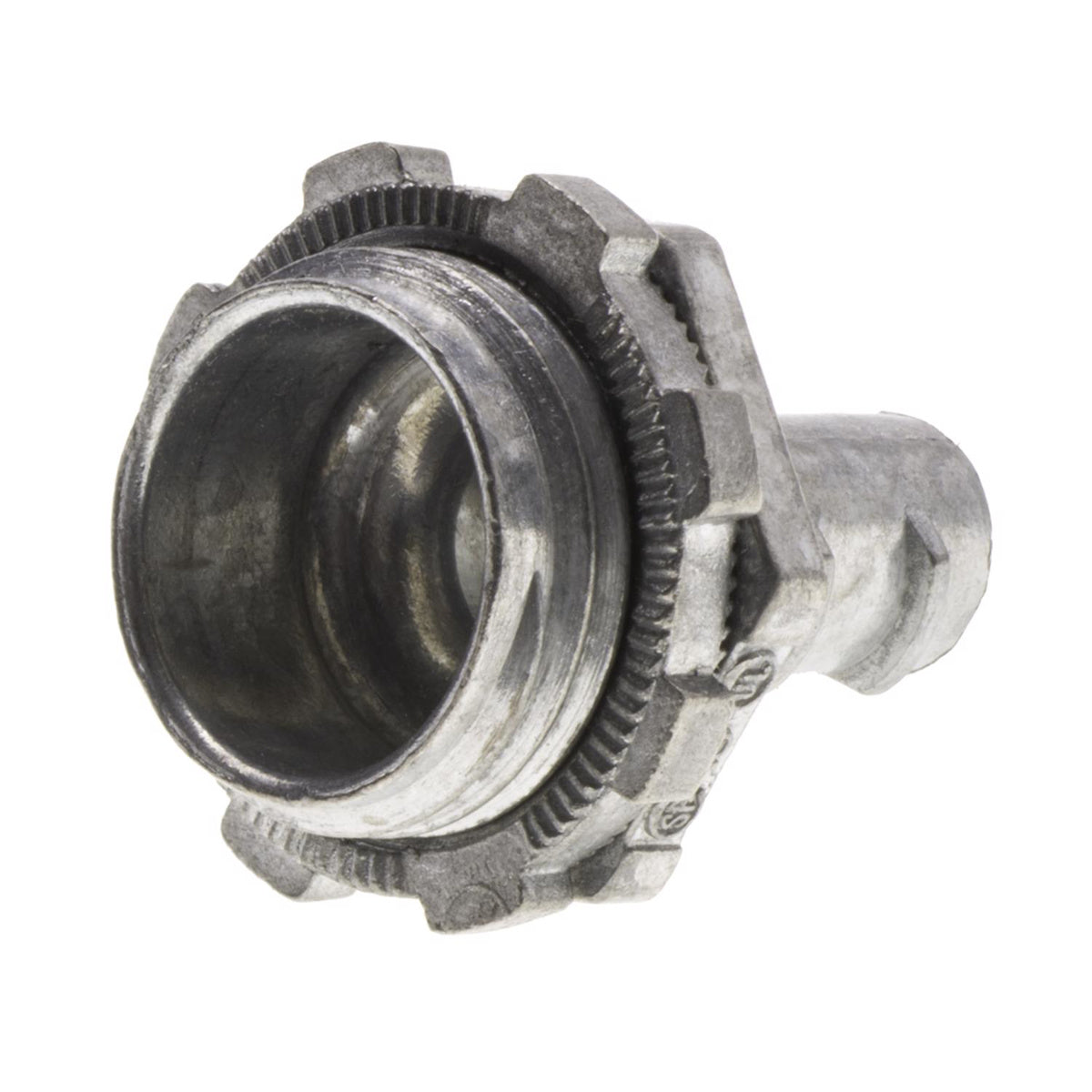

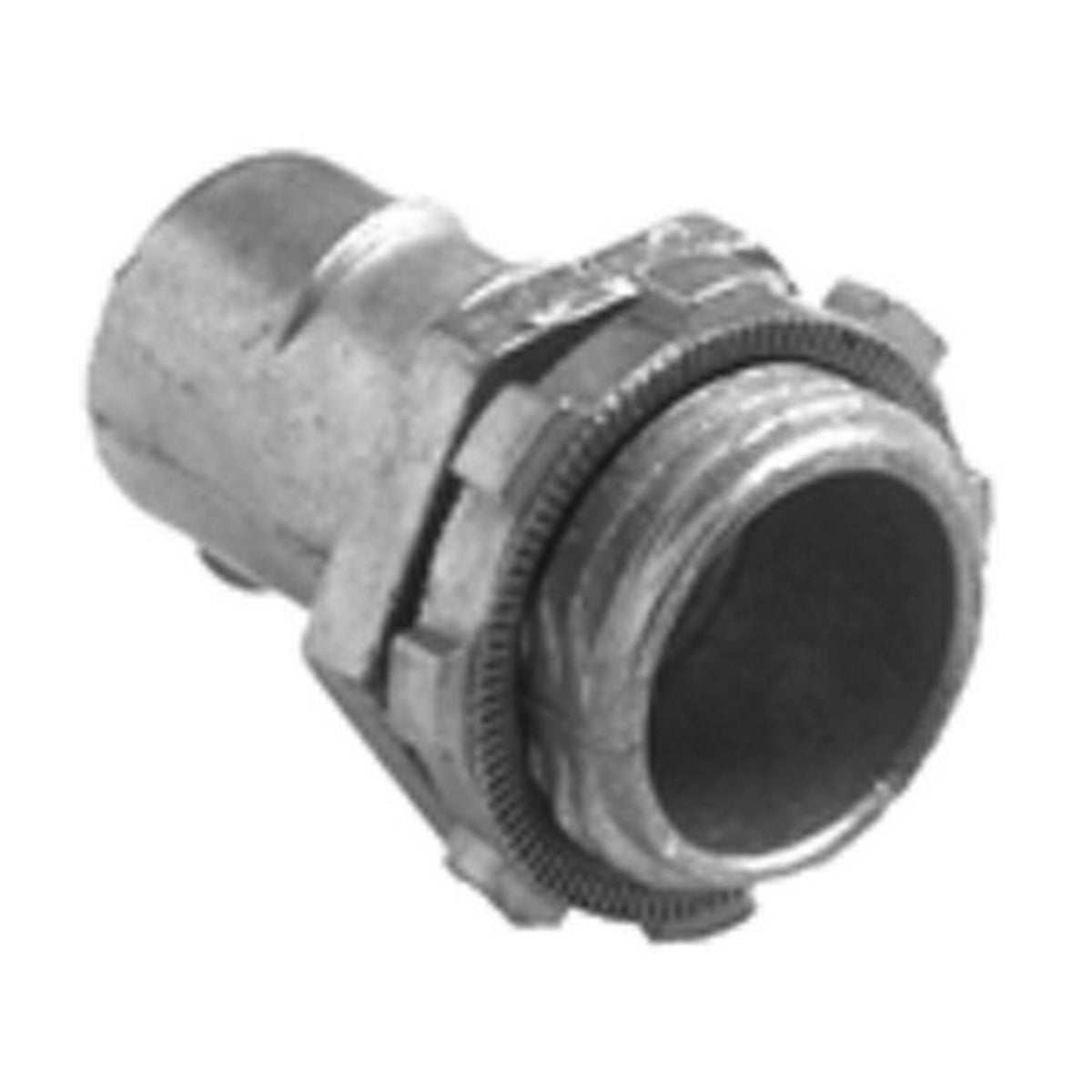

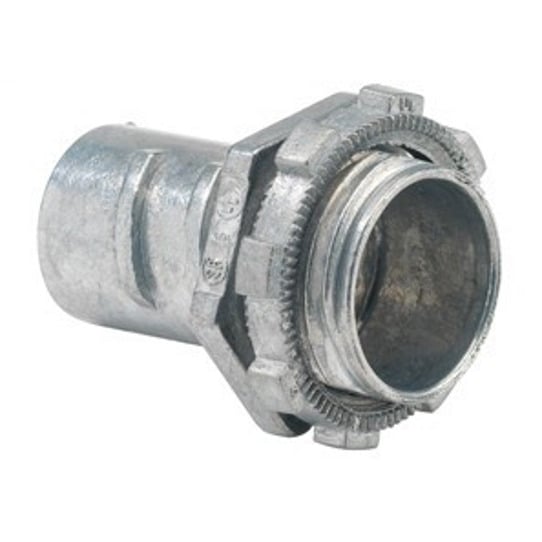

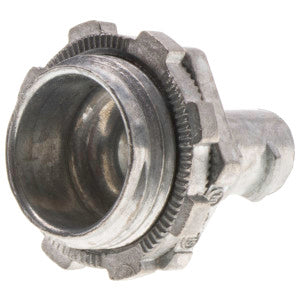

Nsi 520-DC2 Screw-In Connector 1/2 inches

Product Description

The NSI 520-DC2 screw-in connector makes fast, reliable connections between flexible metal conduit (FMC) and an electrical box or enclosure knockout. The screw-in design allows for quick and easy installation. Once installed, the locknut fastens and holds the connector in place. It is used to secure flex trade size 1/2" conduit.

• Quick Installation: The screw-in design of this connector allows for quick and easy installation
• Locknut: Once installed, Bridgeport’s legendary locknut fastens and holds this connector in place
• Sizing: Used to secure flex trade size 1/2" conduit to electrical box or enclosure through a 1/2" knockout

Product Highlights

This zinc die cast connector features a precise fit and finish for a trouble-free performance, ease of assembly and excellent corrosion resistance. UL listed.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 520-DC2
• Country of Origin: US - United States

Technical Specifications

• Material: Zinc Die Cast
• Finish: Ball Burnished Mirror Smooth
• Pack Qty: 1000
• UNSPSC: 39121419
• Ul Standard: UL-514B
• Application: Used to connect flexible metal conduit to box or enclosure.
• Connection Type: Screw-In
• Type: Conduit Connector
• Use With: Flexible Metallic Conduit
• Throat Type: Non-Insulated
• Part Number: 520-DC2
• Conduit Type: Flexible Metal Conduit
• Hazardous Rated: Not Hazardous Rated
• Angle: Straight
• Fitting Type: Connector
• Insulation: Non-insulated
• Size: 1/2 in
• Manufacturer: NSi Industries
• Country of Origin: United States
• Made in USA: Yes
• Standard: UL,CSA
• Item Type: Connector
• Trade Size: 1/2 IN
