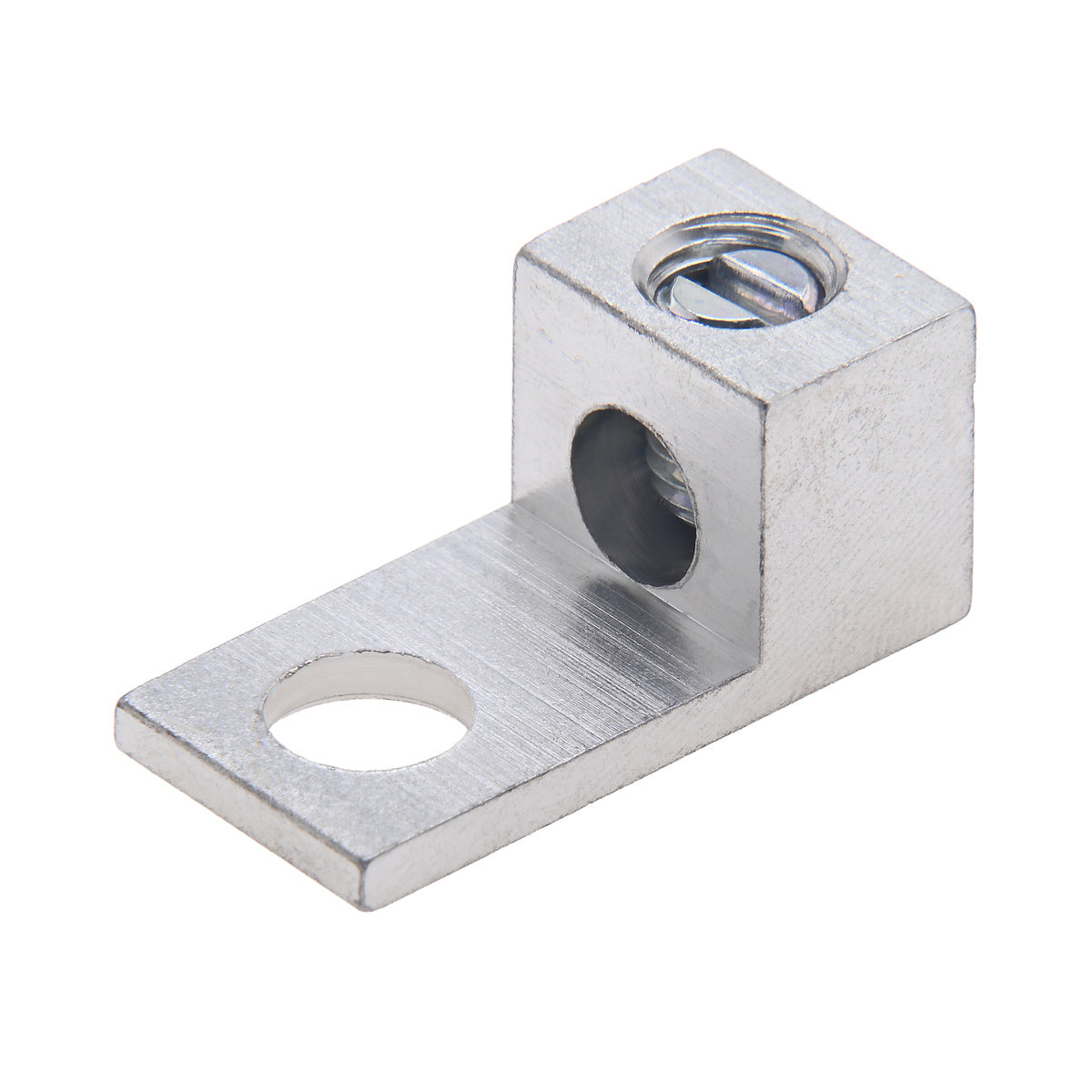

Nsi 4T dual rated lug 4-14 AWG

Product Description

The NSI 4T is a dual rated lug designed for use with copper or aluminum conductors. These versatile and reusable set-screw connectors are made of 6061T-6 aluminum alloy and electro-tin plated for low contact resistance. Suitable for a range of applications requiring secure and reliable connections.

• Dual Rated Lug Al/Cu 4-14 Awg
• Versatile and reusable set-screw connectors
• Made of 6061T-6 aluminum alloy

Product Highlights

Dual rated lug made from 6061-T6 aluminum alloy with electro-tin plating, ensuring low contact resistance and compatibility with both copper and aluminum conductors.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 4T

Technical Specifications

• Temperature Rating: 90 deg C
• Voltage Rating: 600 V
• Material: 6061T-6 Aluminum Alloy
• Finish: Electro-Tin Plated
• Ul Standard: UL 486A-486B
• Conductor Type: Aluminum, Copper
• Wire Range: 4 AWG – 14 AWG
• Series: T Series
• Conductor Size: 14 to 4 AWG
• Stud Size: 1/4 in
• Number of Bolt Holes: 1
