Nsi 4256-DC Set Screw TraNsition Coupling 1/2 to 3/4 in.

Product Description

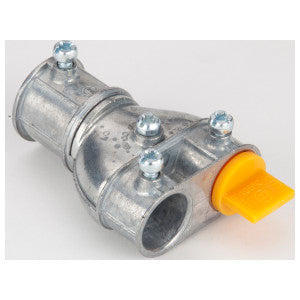

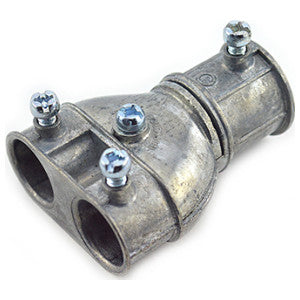

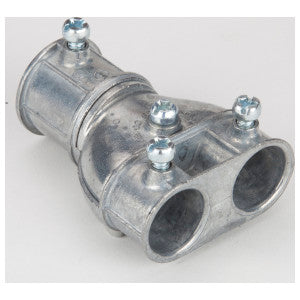

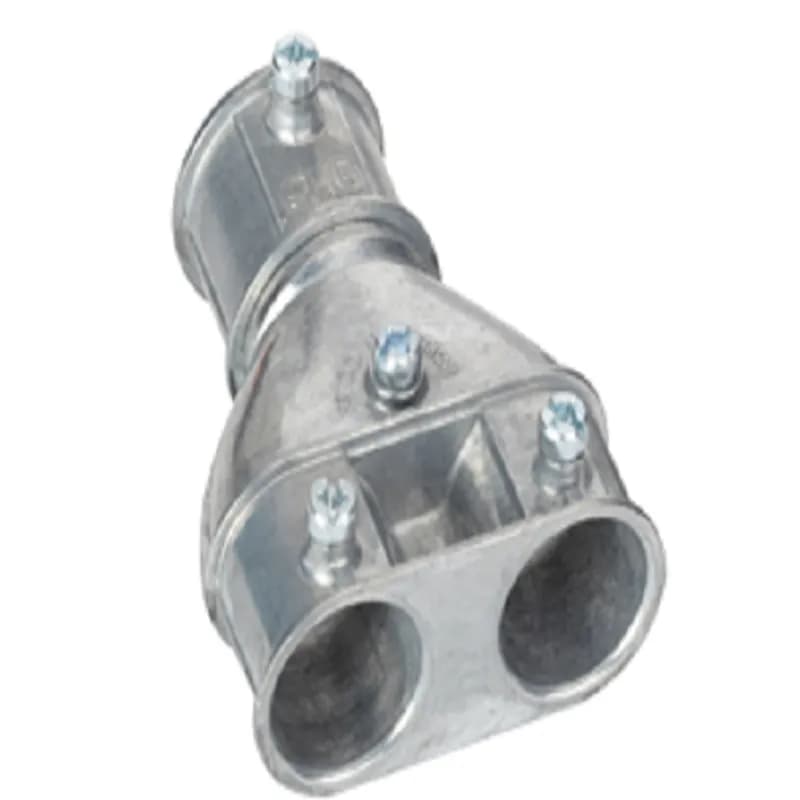

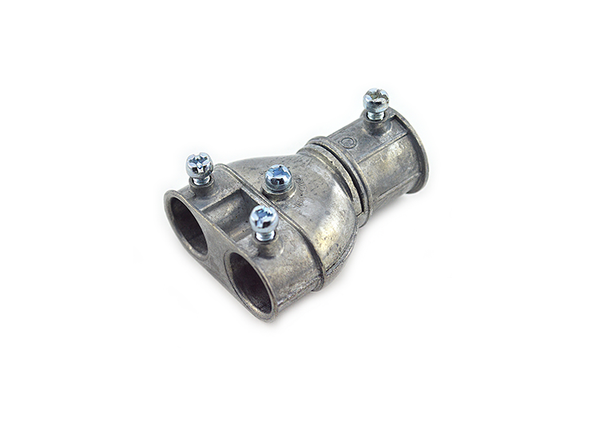

The NSI 4256-DC set screw transition coupling joins two 1/2 in. EMT to one 3/4 in. EMT. It is suitable for commercial, institutional construction, and OEM designs requiring tight parallel raceway management. It simplifies EMT conduit installations by merging two conduits into one without needing a pull-box.

• Set screw transition couplings used to join two 1/2 in. EMT to one 3/4 in. EMT.
• Can be used in commercial and institutional construction.
• Used in OEM designs requiring tight parallel raceway management.

Product Highlights

This coupling reduces material costs, labor time, and installation complexity while maintaining code compliance.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 4256-DC
• Country of Origin: China

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39131707
• Application: Set screw transition couplings used to join two ½” EMT to one ¾” EMT. The Mighty-Merge™ Two to One can be used in commercial and institutional construction or OEM systems. When limited knockout space is available entering an enclosure or panel, use to sep
• Connection Type: Set-Screw
• Type: Transition
• Use With: EMT Conduit
• Temp. Rating: 105°C
• Connector Type: Transition
• Material Quality: Zinc Die Cast
• Series: Mighty-Merge™ Transition Fittings
• Size: 1/2" to 3/4" EMT Coupling
• Special Features: Dry Location
• Standard: cULus
