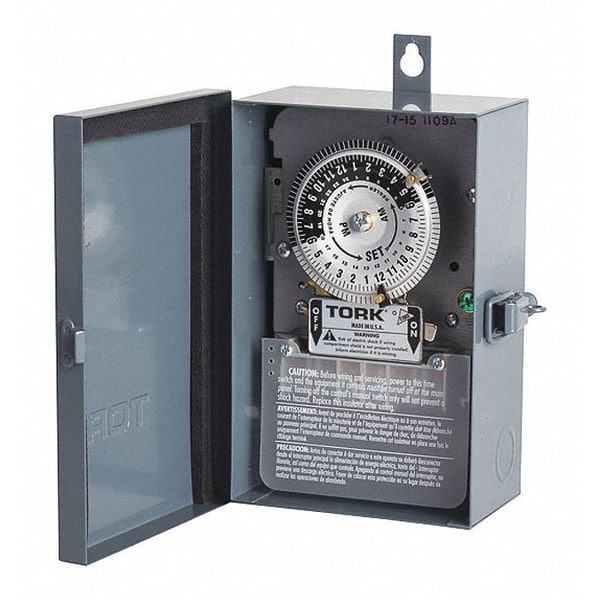

NSI 1109A-O 1-Phase Mechanical Timer 24 hr Setting 120/208 to 277 VAC 2 hp 5 hp

Product Description

The NSI Tork® 1109A-O is a mechanical timer that operates on a voltage range of 120/208 to 277 VAC. It features a 24-hour setting and is suitable for various applications including lighting, pumps, and air conditioning. This timer is designed for safe and effective ON/OFF control in both indoor and outdoor settings.

• Durable design with metal construction
• Enclosed motor protects gears for extended reliability
• Automatic ON/OFF control for consistent timing

Product Highlights

The timer offers a 20-minute minimum ON setting with a 75-minute OFF setting and can hold up to twelve pairs of trippers for flexible scheduling.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Time Setting: 24 hr
• Operation Mode: ON/OFF
• Amperage Rating: 40 A
• Contact Form: DPST
• Enclosure Type: NEMA 3
• Type: 1-Phase
• Voltage Rating: 120/208 to 277 VAC
• Horsepower: 2 hp, 5 hp
• GTIN: 00786261101068
• Number Of Poles: 2
• Temperature Rating: -40 to 165 deg F
• Dimensions: 4.12 in L x 5.25 in W x 8.25 in H
• Mounting Type: Threaded
• UPC: 786261101068
• Standard & Approvals: cULus Listed, UL Listed, CSA 60730
• Application: Indoor/Outdoor, Lighting, Pumps, Signs, Air Conditioning, Water Heater and Fan Control Applications
