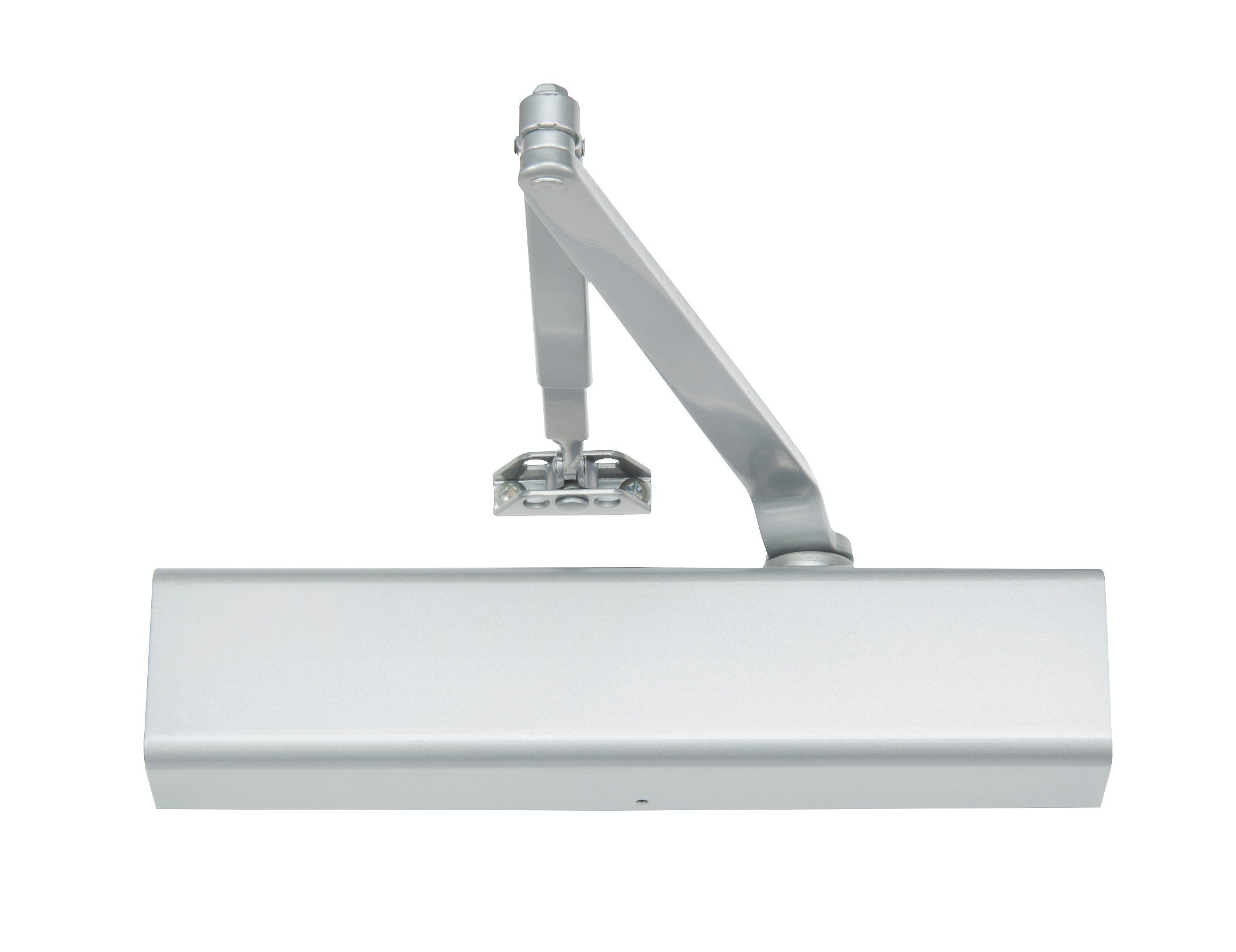

Norton Closers 8501689 Surface Mount Door Closer

Product Description

The NORTON CLOSERS 8501689 is an adjustable surface mount door closer with a full cover and sex nut hardware, finished in aluminum. It uses a rack and pinion mechanism with hydraulic valve controls to regulate door swing speed and backcheck. The unit mounts directly to the door face or frame and is suited for commercial and light industrial entryways where consistent, controlled door closure is required. Licensed door hardware technicians and commercial finish carpenters typically handle installation. At 7.2 pounds and measuring 15.4 inches in length, 6.3 inches in width, and 3.7 inches in height, it is a full-size closer designed for standard commercial door applications.

This closer is appropriate for commercial buildings, office entryways, and institutional facilities requiring surface-mounted hardware. The adjustable closing and latching speed valves allow field technicians to fine-tune door swing performance after installation without replacing components. The aluminum finish coordinates with standard commercial door hardware. Sex nut fasteners are included, enabling through-bolt mounting where door construction requires it. The full cover conceals the closer body and arm mechanism for a cleaner appearance on finished interior doors.

Key Features

• Adjustable closing speed and latching speed via hydraulic valve controls
• Rack and pinion closer mechanism for consistent, reliable door swing
• Surface mount design installs directly to door face or frame header
• Full cover included for concealed appearance of closer body and arm
• Sex nut fasteners included for through-bolt mounting capability
• Aluminum finish compatible with standard commercial door hardware

Compatibility

Designed as an OEM-style surface mount door closer for standard commercial door applications requiring adjustable hydraulic control and through-bolt mounting capability.

Installation Notes

Installation is typically performed by a licensed door hardware technician or commercial carpenter. Verify door construction and frame material before selecting mount configuration. Follow all applicable building and accessibility codes, including ADA requirements where applicable, for closer opening force and sweep speed settings. Adjust closing and latching speed valves only after the closer is fully mounted and hardware is torqued to the door manufacturer's specifications.
