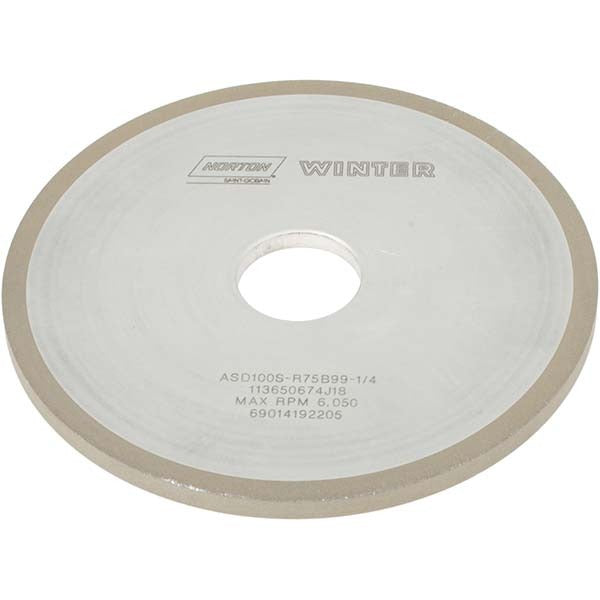

Norton 69014192205 Surface Grinding Wheel 100 Grit

Product Description

The NORTON 69014192205 is a Type 1A1 diamond surface grinding wheel designed for precision surface grinding applications. It features an Armored Synthetic Diamond (ASD) abrasive with a resinoid bond, delivering controlled material removal at a fine, 100-grit grade. The wheel measures 6 inches in diameter, 0.25 inches thick, and accepts a 1.25-inch arbor hole. With a soft hardness rating (R) and a superabrasive concentration of 75, it is engineered for wet roughing operations on hard or brittle materials. Licensed grinding technicians and tool-and-die professionals are the typical end users.

This wheel is suited for wet surface grinding in both production shop and maintenance environments. The ASD abrasive construction is appropriate for roughing passes on carbide, ceramic, glass, and similarly hard workpiece materials. The resinoid bond provides a degree of compliance that reduces chipping on sensitive materials. The 0.25-inch superabrasive depth supports extended service life under consistent wet-coolant use. This wheel is identified under Norton series specification ASD100S-R75B99-1/4.

Key Features

• Armored Synthetic Diamond (ASD) abrasive for high-hardness material removal
• 100-grit fine grade with soft (R) hardness rating for controlled stock removal
• Resinoid bond provides compliance and reduces workpiece chipping
• Designed for wet operation, compatible with standard grinding coolants
• No recess, no taper — standard flat Type 1A1 wheel geometry
• Superabrasive concentration of 75 balances cut rate and wheel life

Compatibility

Designed as an OEM-style replacement or direct-fit grinding wheel for surface grinders accepting a 6-inch diameter, 1.25-inch arbor hole Type 1A1 wheel. No specific machine model compatibility was stated in the product data.

Installation Notes

Mounting and dressing of superabrasive grinding wheels should be performed by a qualified grinding machine operator or machinist following the machine manufacturer's instructions and applicable ANSI B11 safety standards. Power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for cracks or damage before installation and never exceed the rated maximum RPM marked on the wheel. Wet operation requires proper coolant flow to be established before the wheel contacts the workpiece.
