Norton 69014191665 Diamond Grinding Wheel 6in 220 Grit

Product Description

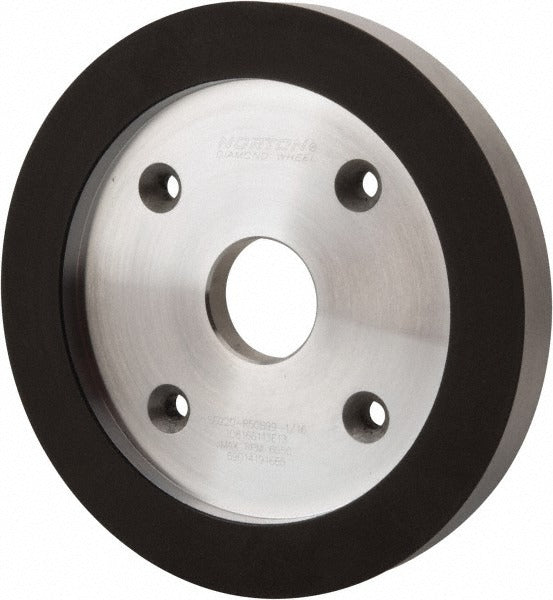

The NORTON 69014191665 is a Type 6A2C resinoid-bond diamond grinding wheel designed for precision tool grinding and sharpening applications. The wheel measures 6 inches in diameter with a 3/4-inch face width and a 1-1/4-inch bore, and it carries a 220-grit synthetic diamond abrasive at R hardness grade. The 1/16-inch superabrasive depth and 50 concentration rating make this wheel well suited for controlled stock removal on hard and brittle tool materials. Licensed tradespeople and toolroom machinists install this wheel on bench grinders and surface grinders for finishing work on carbide, ceramic, and hardened steel cutting tools.

This wheel is used in toolroom and machine shop environments where consistent surface finish and dimensional accuracy are required. It supports both wet and dry operation, giving the operator flexibility depending on the machine setup and the material being ground. Typical applications include resharpening of carbide-tipped tooling, grinding of ceramic components, and fine finishing passes on hardened cutting inserts. The Very Fine 220-grit rating targets final sharpening and light stock removal rather than aggressive material takedown.

Key Features

• Type 6A2C wheel form — suited for tool and cutter grinding on standard arbor-mount machines
• Synthetic diamond abrasive (SD) at 220 grit for fine, controlled cutting action
• 50 concentration resinoid bond provides consistent abrasive exposure throughout wheel life
• 1/16-inch superabrasive depth rated for finishing and light sharpening passes
• Supports both wet and dry grinding operation
• 3/4-inch face width and 1-1/4-inch bore for direct arbor mounting

Compatibility

Designed as an OEM-style replacement or direct-fit grinding wheel for bench grinders and tool-and-cutter grinders accepting a 6-inch diameter, 1-1/4-inch bore Type 6A2C wheel.

Installation Notes

Grinding wheel installation should be performed by a qualified toolroom machinist or maintenance technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before mounting or removing any wheel. Inspect the wheel for cracks or chips before installation, and never exceed the maximum RPM rating marked on the wheel or machine. Use properly sized flange sets and blotters as required by the grinder manufacturer.
