Norton 69014191635 Type 11V9 Diamond Grinding Wheel

Product Description

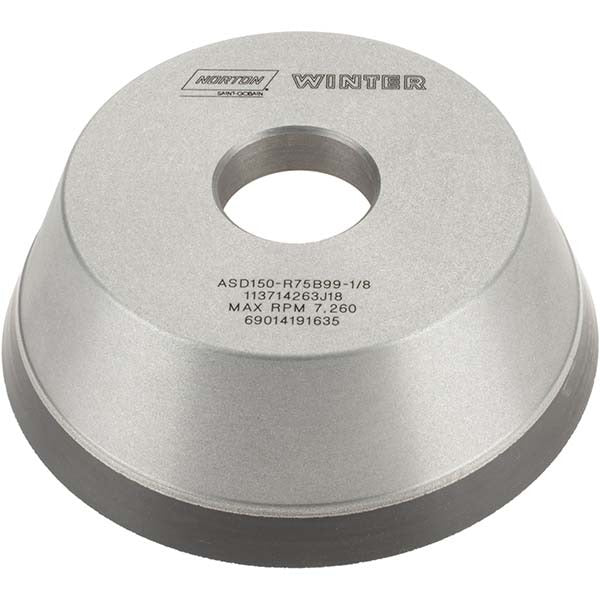

The NORTON 69014191635 is a Type 11V9 resinoid-bond diamond grinding wheel designed for precision grinding of hard and superhard materials. Built with Armored Synthetic Diamond (ASD) abrasive at a 150-grit Very Fine grade, it delivers controlled material removal and fine surface finishing. The wheel measures 5 inches in diameter with a 1-3/4 inch overall thickness and accepts a 1-1/4 inch arbor bore. It is rated for both wet and dry operation, giving technicians flexibility depending on the application and workpiece requirements. The specification designation is ASD150-R75B99-1/8, indicating abrasive type, concentration, bond, and depth.

This wheel is suited for tool and cutter grinding, carbide tooling, ceramics, and other hard materials that require diamond abrasive action. The 70-degree face angle and 7/16 inch face width make it appropriate for form grinding and clearance angle work on cutting tools. A superabrasive depth of 1/8 inch and hub diameter of 3-23/32 inches support consistent performance across the working life of the wheel. Licensed grinding machine operators and tool room machinists are the primary installers and users of this wheel.

Key Features

• Armored Synthetic Diamond (ASD) abrasive for grinding hard and superhard tooling materials
• 150 grit Very Fine grade for controlled stock removal and fine surface finish
• Resinoid bond construction provides vibration dampening during operation
• Rated for both wet and dry grinding operation
• 70-degree face angle with 7/16 inch face width suited for tool clearance and form grinding
• Superabrasive concentration of 75 (R75) balances wheel life and cutting performance

Compatibility

Designed as an OEM-style replacement or direct-fit diamond cup wheel for Type 11V9 tool and cutter grinders accepting a 5 inch diameter, 1-1/4 inch bore wheel.

Installation Notes

Installation should be performed by a qualified tool room machinist or grinding machine operator following the machine manufacturer's mounting instructions. Power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for cracks or damage before each use and confirm the machine speed rating does not exceed the wheel's rated maximum RPM. Follow applicable ANSI B11 safety standards for abrasive wheel operation.
