Norton 6891-689 Clearance/Support Blade Stop

Product Description

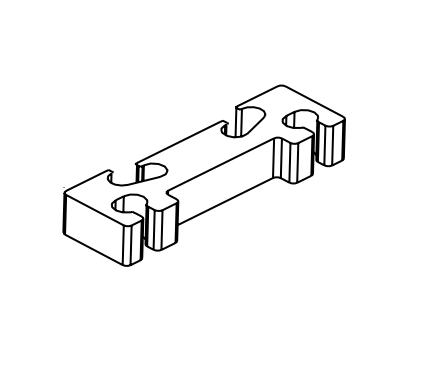

The Norton 6891-689 Clearance/Support Blade Stop is designed for use with 1600, 7500, 8000, and 78-B/F Series door closers. This steel spacer block is used where the door frame has a blade stop and the soffit plate must be mounted on the frame rabbet. It is used in combination with the standard spacer block to provide clearance.

• For use with 1600, 7500, 8000, 78-B/F Series Door Closers
• For use where the door frame has a blade stop and the soffit plate must be mounted on the frame rabbet.
• Used in combination with the standard spacer block to provide clearance of the blade stop.

Product Highlights

The Norton 6891-689 blade stop provides necessary clearance in door frame installations. It is compatible with various Norton door closer series.

Product Information

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 6891-689

Technical Specifications

• Brand: Norton
• Part Type: Blade Stop Spacer
• Material: Steel

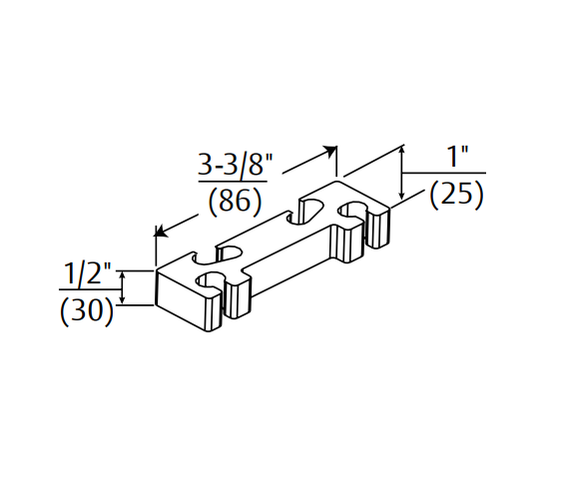

• Product Length: 3-3/8 Inch
• Product Width: 1 Inch
• Finish: 689/US28
• Series: Norton Drop Plates & Brackets
• Type: Door Closers and Operators
• Sub Type: Door Closer Mounting Plates
• Model: 6891
