Norton 66260195373 Diamond Dresser Grit Impregnated

Product Description

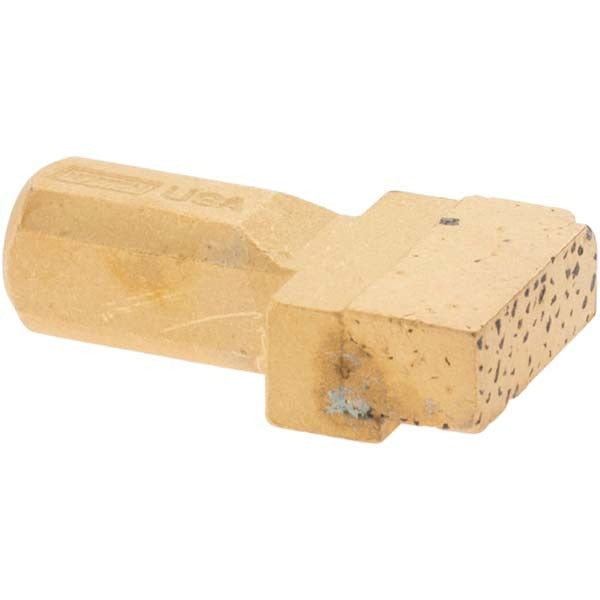

The NORTON 66260195373 is a grit impregnated diamond dresser designed for truing and dressing abrasive grinding wheels. Diamond dressers remove glazing, restore wheel form, and expose fresh abrasive grain to maintain consistent cut performance. This dresser features a multi-point grit impregnated head measuring 1/4 inch in diameter and 3/4 inch in length, with a head thickness of 5/16 inch. The 7/16-inch diameter shank extends 3/4 inch and fits standard dresser holders used on bench grinders, surface grinders, and cylindrical grinding machines. It is installed and used by machinists, tool and die makers, and grinding machine operators in production and maintenance environments.

This diamond dresser is suited for use on conventional abrasive grinding wheels in both light manufacturing and precision grinding applications. It performs well on aluminum oxide and silicon carbide wheels where regular dressing is required to maintain wheel geometry and surface finish quality. The grit impregnated, multi-point design distributes wear across multiple diamond particles, extending service life compared to single-point dressers. Typical applications include surface grinding, tool grinding, and general-purpose bench grinder maintenance in machine shops and industrial facilities.

Key Features

• Grit impregnated multi-point head distributes wear for longer service life than single-point designs
• Head diameter of 1/4 inch with a head length of 3/4 inch and head thickness of 5/16 inch
• 7/16-inch shank diameter fits standard dresser holders on most bench and surface grinders
• Shank length of 3/4 inch provides compact, rigid tool positioning in the holder
• Suitable for truing and dressing aluminum oxide and silicon carbide abrasive wheels

Compatibility

Designed as an OEM-style replacement diamond dresser for standard grinding machine dresser holders accepting a 7/16-inch shank diameter.

Installation Notes

Diamond dressers are typically installed and used by machinists or grinding machine operators. Before mounting or dressing a wheel, power down the grinder and allow it to come to a complete stop. Secure the dresser firmly in the holder with no excessive overhang to minimize vibration during dressing passes. Always wear appropriate eye protection and follow applicable ANSI B11 grinding safety standards when dressing abrasive wheels.
