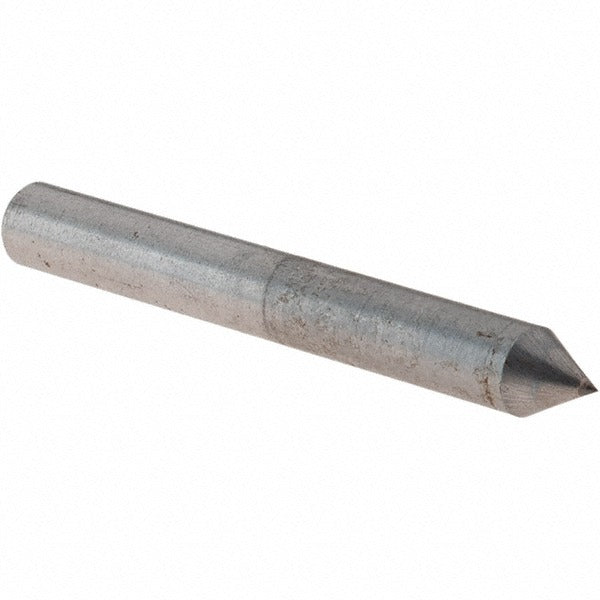

Norton 66260195226 Single Point Diamond Dresser

Product Description

The NORTON 66260195226 is a single point diamond dresser used to true and dress abrasive grinding wheels. It restores the cutting face of a wheel to proper geometry and removes glazing or loading from the wheel surface. The 60-degree included angle tip delivers precise, controlled contact with the wheel face, making it suitable for surface grinders, cylindrical grinders, and tool and cutter grinders. The 3/16-inch shank diameter and 1-inch shank length allow it to seat in standard dresser holders found in most grinding setups. Installation is handled by machinists, tool room technicians, and grinding operators as part of routine wheel maintenance.

This diamond dresser is suited for use in machine shops, tool rooms, and production grinding environments. It is used during wheel setup and periodic dressing cycles to maintain consistent surface finish and dimensional accuracy on workpieces. The single point configuration provides a sharp, repeatable contact point for straight dressing passes across the wheel face. It is not resettable, so the tip orientation is fixed at the time of manufacture.

Key Features

• Single point diamond tip for precise wheel truing and dressing
• 60-degree included angle for controlled contact geometry
• 3/16-inch shank diameter fits standard dresser holders
• 1-inch shank length provides stable seating in the holder
• Non-resettable tip maintains factory-set orientation
• Lightweight at 0.33 pounds for easy handling and positioning

Compatibility

Designed as an OEM-style replacement single point diamond dresser for use with standard grinding wheel dresser holders accepting a 3/16-inch shank diameter.

Installation Notes

Installation is performed by a machinist or grinding equipment operator. Before mounting or adjusting the dresser, power down the grinder and confirm the wheel has come to a complete stop. Secure the shank firmly in the dresser holder to prevent movement during the dressing pass. Present the diamond tip to the wheel at the recommended approach angle per the machine manufacturer guidelines to avoid tip damage from improper contact.
