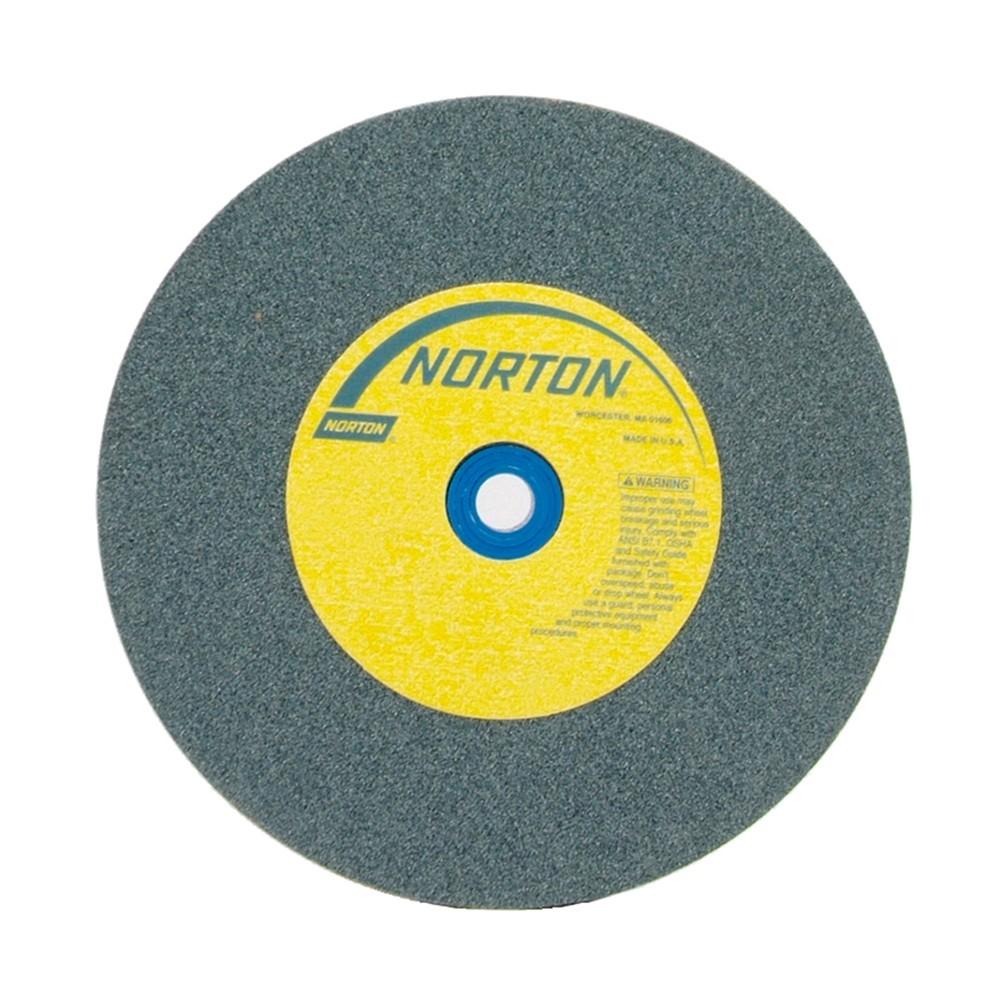

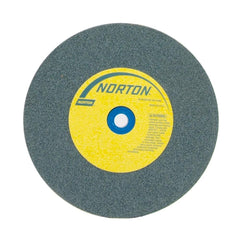

Norton 662531-44536 Bench Pedestal Grinding Wheel 10in

Product Description

The NORTON 662531-44536 is a Type 1 bench and pedestal grinding wheel engineered for non-metal applications using a silicon carbide abrasive composition. Part of the CRYSTOLON 01 series, this wheel measures 10 inches in diameter, 1 inch wide, with a 1-1/4 inch arbor bore. The 60M grit designation indicates a medium grit rating, suited for moderate stock removal on non-metallic materials such as carbide, ceramics, stone, and cast iron. Weighing 5.62 pounds, it is built for use on standard bench grinders and pedestal-mounted grinding machines. Machinists, toolroom techs, and maintenance professionals typically spec this wheel for sharpening and dressing non-ferrous tooling.

This grinding wheel is intended for use on bench grinders and pedestal grinder units that accept a 1-1/4 inch arbor bore. Its silicon carbide composition makes it appropriate for grinding non-metallic and non-ferrous materials where aluminum oxide wheels are less effective. Common applications include carbide tool grinding, ceramic shaping, and general shop maintenance tasks on non-metal workpieces. The green color identifies this as a silicon carbide wheel, following standard industry color coding for abrasive identification.

Key Features

• Type 1 straight wheel profile for use on bench and pedestal grinders
• Silicon carbide abrasive for non-metal and non-ferrous material grinding
• 60M grit rating delivers medium stock removal with a moderate finish
• 10 inch diameter x 1 inch wide x 1-1/4 inch arbor bore sizing
• CRYSTOLON 01 series designation for silicon carbide identification
• Green color for quick visual identification as a silicon carbide wheel

Compatibility

Designed as an OEM-style replacement or direct-fit grinding wheel for bench grinders and pedestal grinder units with a 1-1/4 inch arbor bore accepting a 10 inch diameter Type 1 straight wheel.

Installation Notes

Grinding wheel installation and dressing should be performed by qualified personnel following ANSI B11.9 and OSHA 29 CFR 1910.215 standards for abrasive wheel machinery. Always power down and lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before installation using the ring test, and never exceed the maximum RPM rating marked on the wheel. Use appropriate flanges and a blotter on each side of the wheel during mounting.

Technical Specifications

• Wheel Diameter: 10 inches
• Wheel Width: 1 inch
• Arbor Bore: 1-1/4 inches
• Wheel Type: Type 1
• Abrasive Material: Silicon Carbide
• Grit: 60M (Medium)
• Series: CRYSTOLON 01
• Color: Green
• Application: Non-Metal
• Weight: 5.62 pounds

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662531-44536
