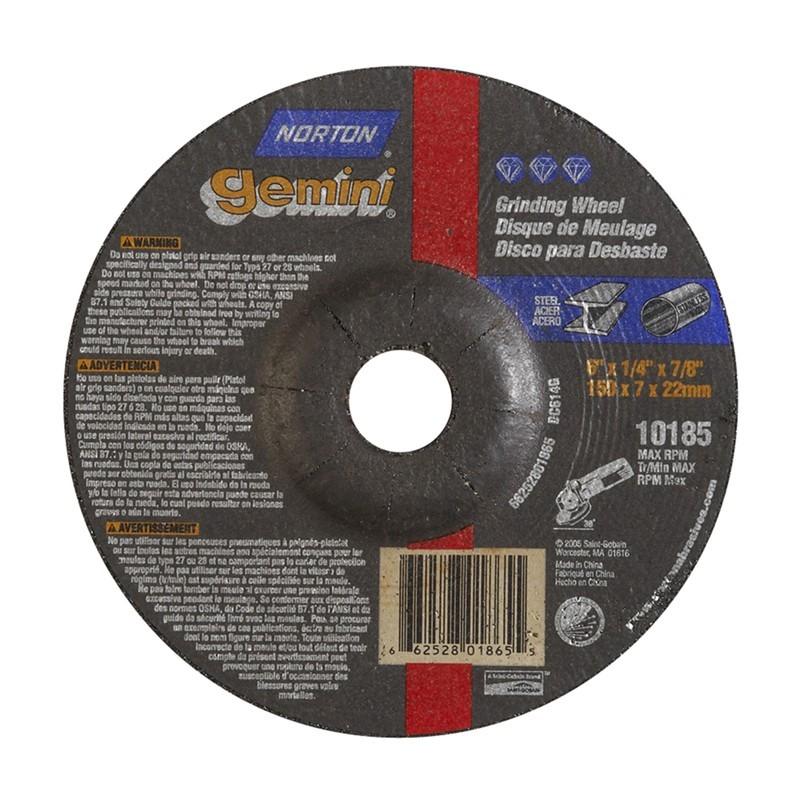

Norton 662528-01865 Type 27 Grinding Wheel 6x1/4x7/8

Product Description

The NORTON 662528-01865 is a Type 27 depressed-center grinding wheel engineered for metal grinding and weld removal applications. Made with Gemini aluminum oxide abrasive, it delivers consistent material removal on ferrous metals including steel and structural iron. The wheel measures 6 inches in diameter, 1/4 inch thick, and features a 7/8 inch arbor bore, with a maximum operating speed of 10185 RPM. It is designed for use on angle grinders and is installed by metalworkers, fabricators, pipefitters, and industrial maintenance technicians requiring a durable, high-performance abrasive solution.

This grinding wheel is suited for heavy-duty metal grinding tasks in fabrication shops, field construction environments, and maintenance facilities. Its Type 27 depressed-center profile provides better access to flat surfaces and inside corners compared to flat-profile wheels. Typical applications include weld blending, surface stock removal, and deburring on structural steel, pipe, and plate.

Key Features

• Type 27 depressed-center profile for improved surface access and weld blending
• Gemini aluminum oxide abrasive for consistent, aggressive material removal on ferrous metals
• 6 inch diameter x 1/4 inch thickness x 7/8 inch arbor bore
• Maximum rated speed of 10185 RPM for compatibility with standard angle grinders
• Designed specifically for metal grinding applications

Compatibility

Designed as a direct-fit replacement-style abrasive wheel for angle grinders accepting a 7/8 inch arbor bore, suitable for metal grinding service in fabrication and maintenance applications.

Installation Notes

This wheel is installed by qualified metalworkers or maintenance technicians using an angle grinder rated at or above the wheel's maximum RPM. Always power down and unplug the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before each use, and never operate above the marked maximum RPM. Appropriate PPE including a face shield and gloves should be worn during operation in accordance with applicable ANSI B7.1 safety standards.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Abrasive Material: Gemini Aluminum Oxide
• Application: Metal Grinding
• Diameter: 6 inches
• Thickness: 1/4 inch
• Arbor Bore: 7/8 inch
• Maximum RPM: 10185 RPM
• Unit of Measure: Each
• Minimum Order Quantity: 20

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662528-01865
