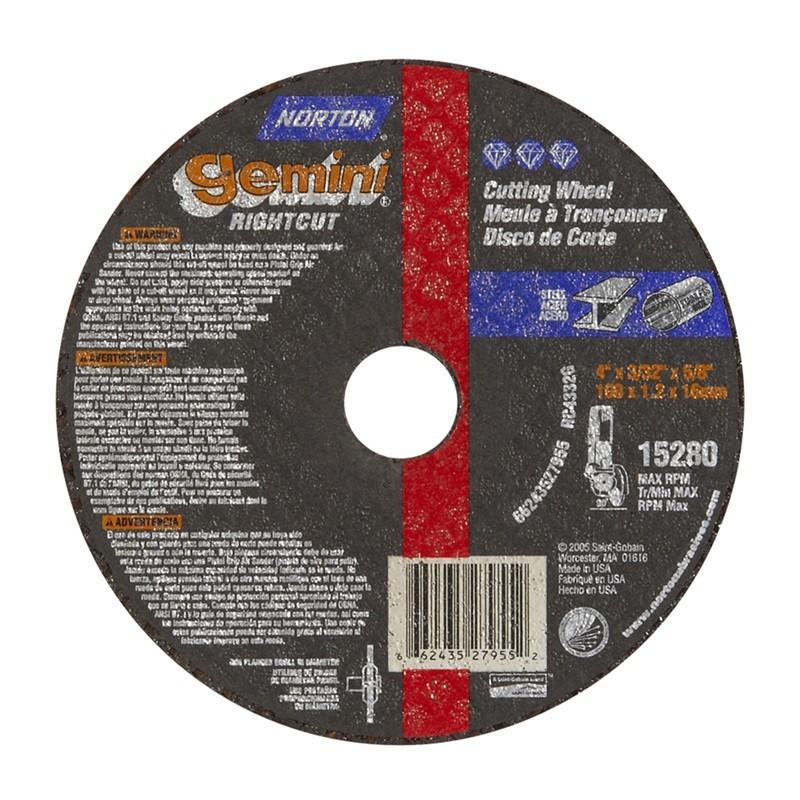

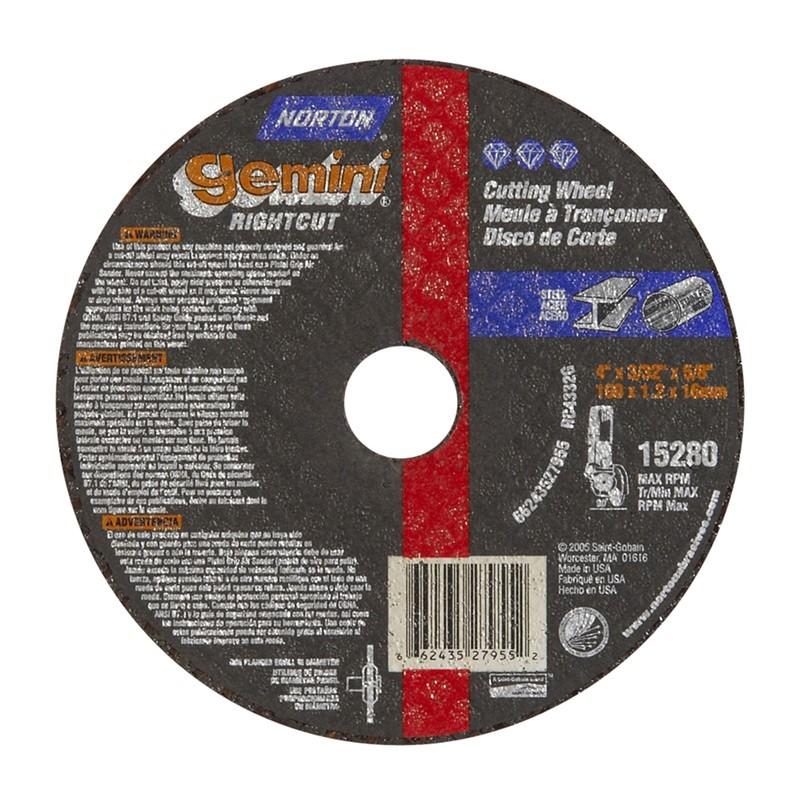

Norton 662435-27955 Type 1 Cut-off Blade 4x3/32x5/8 Metal

Product Description

The NORTON 662435-27955 is a Type 1 right angle cut-off blade engineered for metal cutting applications. It features an aluminum oxide abrasive grain construction under the Gemini bonding system, which is designed to deliver consistent cut quality and extended wheel life on ferrous metals. The blade measures 4 inches in diameter with a 3/32-inch thickness and a 5/8-inch arbor bore, and it is rated to a maximum of 15,280 RPM. This is a professional-grade abrasive wheel suited for use with small right angle grinders in trade and production environments.

This cut-off blade is intended for cutting ferrous metal stock including steel bar, tubing, angle iron, and sheet metal. Its thin 3/32-inch kerf reduces material loss and heat buildup during cuts. The 4-inch diameter and 5/8-inch arbor bore suit compact right angle grinders commonly used by fabricators, pipefitters, ironworkers, and general contractors in both shop and field settings.

Key Features

• Aluminum oxide abrasive grain with Gemini bond for consistent cutting performance on metal
• Type 1 flat wheel profile designed for straight cut-off work
• 4-inch diameter with thin 3/32-inch kerf to minimize material loss
• 5/8-inch arbor bore fits standard small right angle grinders
• Rated to 15,280 RPM maximum operating speed

Compatibility

Designed as an OEM-style replacement and standard fit for right angle grinders accepting a 4-inch Type 1 cut-off wheel with a 5/8-inch arbor bore.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive wheel safety. Always power down and unplug or lock out the grinder before mounting or removing the wheel. Verify the grinder spindle speed does not exceed the 15,280 RPM maximum rating marked on the wheel before operation. Inspect the wheel for cracks or damage prior to each use and never use a damaged wheel.

Technical Specifications

• Abrasive Type: Aluminum Oxide (Gemini)
• Wheel Type: Type 1 (Flat)
• Diameter: 4 inches
• Thickness: 3/32 inches
• Arbor Bore: 5/8 inches
• Maximum RPM: 15,280
• Application: Metal Cutting
• Unit of Measure: Each
• Minimum Order Quantity: 25

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662435-27955
