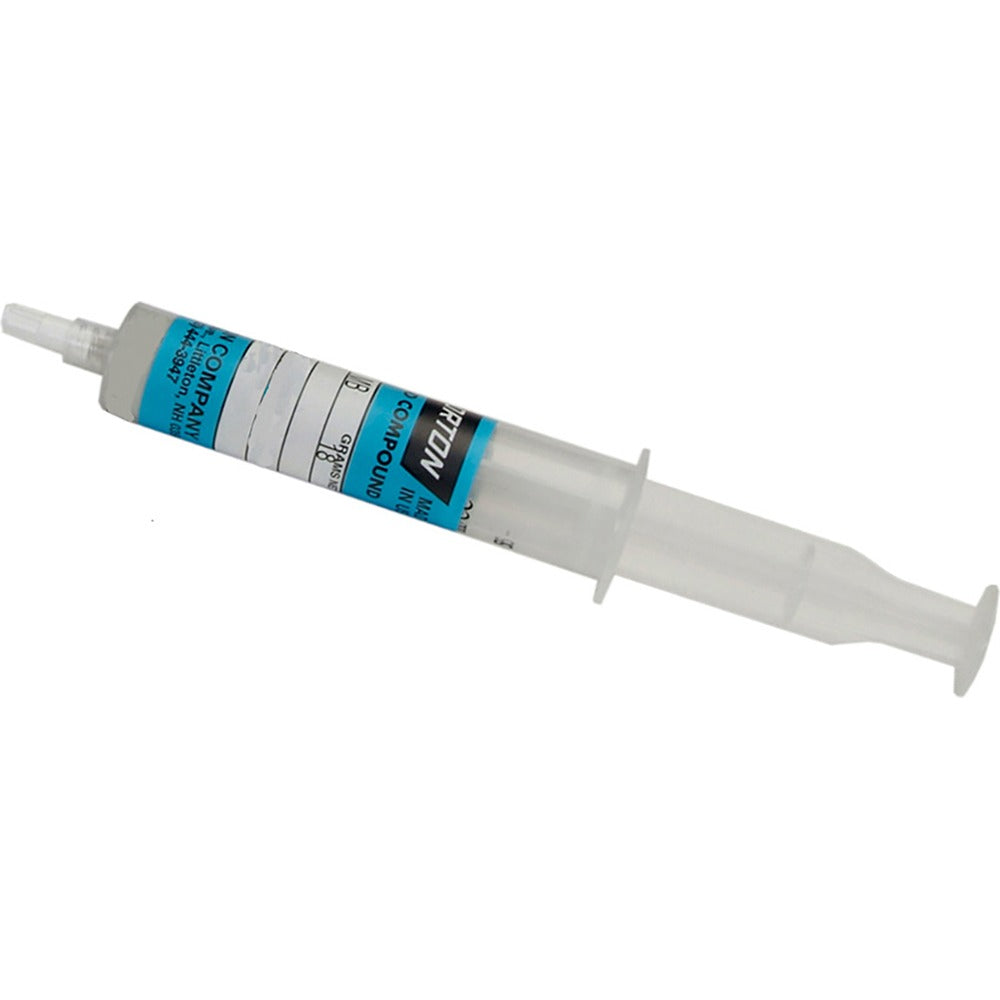

Norton 61463691123 Diamond Grit Compound Ultra Fine 5g

Product Description

The NORTON 61463691123 is an ultra fine diamond grit lapping and polishing compound used to achieve precise surface finishes on hard materials. Rated at Grade 1/4 with a maximum grit size of 0.50 microns, it delivers controlled material removal and a refined surface finish in a single application. Packaged in a 5.00g container, it is well suited for bench work, precision machining, and toolroom applications where consistency at the sub-micron level is required. Machinists, toolmakers, and ceramic technicians are the primary users of this compound.

This compound is formulated for use on ceramic and general purpose metal substrates. It is commonly applied in lapping, honing, and fine polishing operations where surface finish tolerances are tight. Typical scenarios include lapping valve seats and precision flat surfaces, polishing ceramic components, and finishing hardened metal tooling. The gray color coding identifies the ultra fine grade within the NORTON compound grading system, helping technicians quickly select the correct compound at the bench.

Key Features

• Ultra fine Grade 1/4 classification with a maximum grit size of 0.50 microns for sub-micron surface finishing
• Compatible with ceramic and general purpose metal substrates
• Diamond abrasive compound type for consistent cutting action on hard-to-finish materials
• Gray color coding for fast grade identification at the workbench
• Compact 5.00g container suitable for low-volume precision work and field service kits

Compatibility

Designed for use on ceramic and general purpose metal surfaces requiring ultra fine lapping or polishing; suitable for toolroom, machining, and precision finishing applications.

Installation Notes

Applied by hand or with a lapping tool, this compound is typically used by machinists and toolroom technicians following established lapping procedures. Clean the workpiece and lapping surface thoroughly before application to prevent contamination from coarser abrasive particles. Apply a small, controlled amount of compound and maintain consistent pressure throughout the lapping stroke. Remove all compound residue from mating surfaces after finishing to prevent abrasive carry-over into assembled components.
