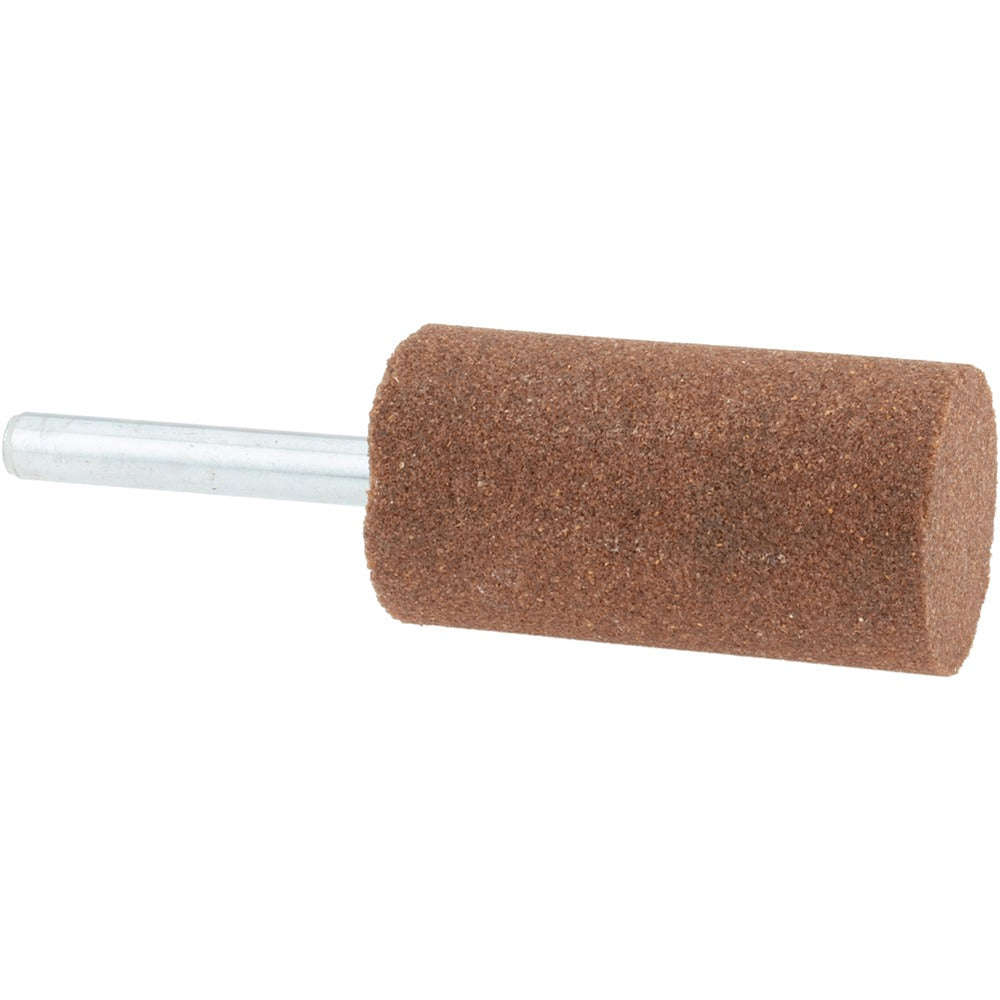

Norton 61463624569 Mounted Point W222 60 Grit Medium

Product Description

The NORTON 61463624569 is a vitrified aluminum oxide mounted point designed for precision grinding, deburring, and surface finishing in metalworking applications. The cylinder-shaped abrasive head measures 2 inches thick and uses a 1/4-inch shank diameter for secure chuck mounting on die grinders and rotary tools. At 60 grit with a medium grade and medium density, this mounted point delivers consistent material removal on ferrous and non-ferrous metals. Licensed tradespeople and shop machinists rely on this type of abrasive for internal bore work, slot grinding, and contour finishing where a handheld or bench-mounted angle grinder cannot reach.

This mounted point is suited for use in maintenance, repair, and fabrication settings including machine shops, manufacturing floors, and industrial service environments. The W222 cylinder profile makes it well-suited for flat-bottom grinding in slots, cavities, and blind holes. The vitrified bond structure provides dimensional stability and consistent cut rate throughout the life of the wheel, making it a reliable choice for production grinding tasks as well as one-off repair work.

Key Features

• Cylinder shape code W222 for flat-bottom and slot grinding applications
• 60 grit aluminum oxide abrasive for moderate stock removal with a medium surface finish
• Vitrified bond for shape retention and consistent cut throughout wheel life
• 1/4-inch shank diameter compatible with standard die grinder collets
• Rated to 20,250 RPM maximum operating speed
• 1-1/2-inch shank length provides clearance for deep cavity and internal bore work

Compatibility

Designed for use with die grinders and rotary tools accepting a 1/4-inch collet. Suitable for grinding ferrous metals, cast iron, and hardened steel in standard shop and field service applications.

Installation Notes

Installation should be performed by a qualified machinist or tool operator familiar with abrasive wheel safety. Always verify that the grinder speed rating meets or exceeds the 20,250 RPM maximum rating of the mounted point before mounting. Inspect the wheel for cracks or chips before each use and discard if damage is found. Operate with appropriate eye protection and follow ANSI B7.1 safety requirements for abrasive wheel use.
