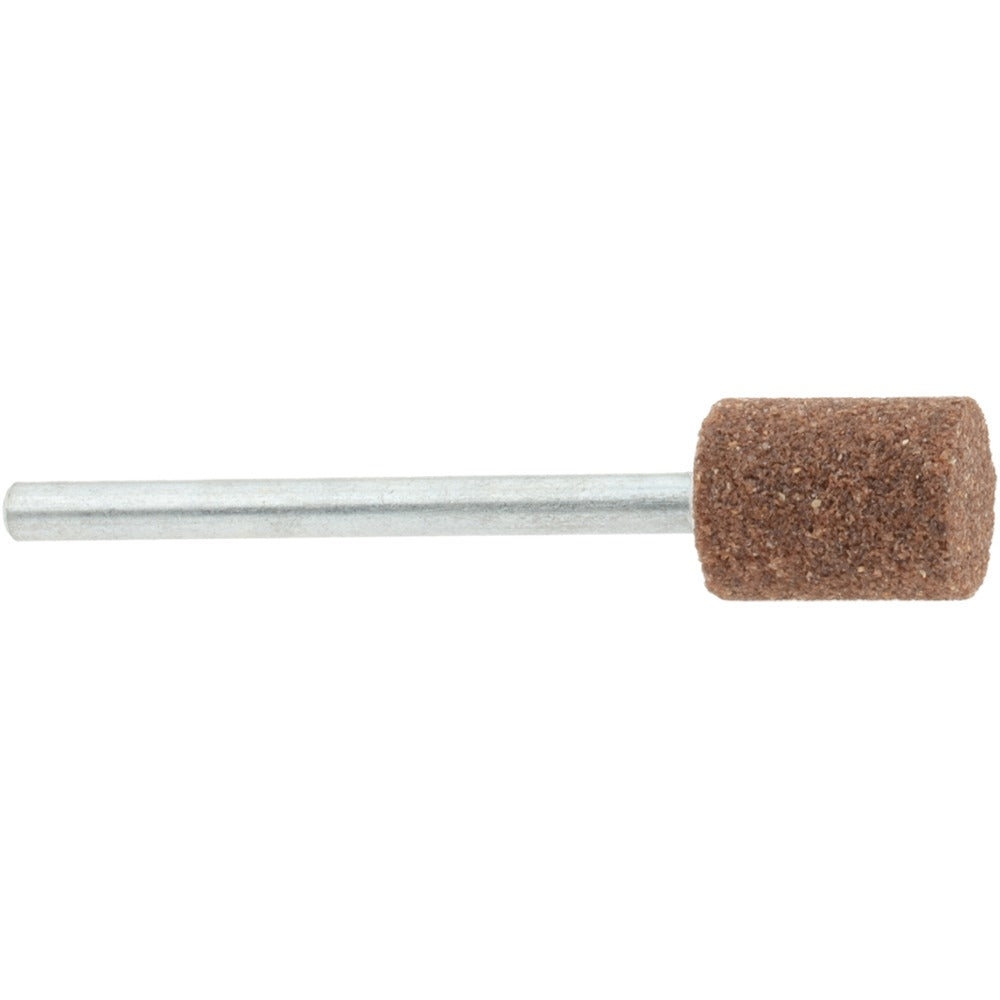

Norton 61463624517 Mounted Point W176 60 Grit Medium

Product Description

The NORTON 61463624517 is a vitrified aluminum oxide mounted point designed for precision grinding, deburring, and surface finishing on metal and other hard materials. Shaped as a cylinder (W176), it measures 0.5 inches thick with a 0.125-inch diameter shank and a 1.5-inch shank length. At 60 grit with a medium grade and medium density, this mounted point delivers consistent stock removal in tight areas where larger abrasives cannot reach. It is rated to a maximum of 50,460 RPM. Licensed machinists, tool-and-die workers, and maintenance technicians are the typical end users for this type of abrasive tooling.

This mounted point is suited for use in die grinders and rotary tools for internal grinding, port work, weld cleanup, and contour finishing. Its cylinder profile makes it effective for working flat surfaces, right-angle walls, and straight-sided cavities. The aluminum oxide abrasive is appropriate for carbon steel, alloy steel, and similar ferrous materials. The brown color indicates the standard aluminum oxide bond formulation. Applications span industrial maintenance, fabrication shops, and machine shops requiring controlled, repeatable abrasive work in confined geometries.

Key Features

• W176 cylinder shape for flat-bottom and straight-wall grinding applications
• 60 grit aluminum oxide abrasive for medium stock removal and surface finishing
• Vitrified bond for consistent grain exposure and long service life
• Rated to 50,460 RPM for compatibility with standard die grinders
• 0.125-inch shank diameter fits standard collets on most rotary and die grinder tools
• Medium grade and medium density for balanced cut rate and wheel life

Compatibility

Designed for use with die grinders and rotary tools accepting a 0.125-inch shank collet. Suitable for grinding ferrous metals and hard materials where a cylinder-profile mounted point is specified.

Installation Notes

Mounted points must be installed by personnel familiar with abrasive tooling safety practices. Always confirm the tool spindle RPM does not exceed the 50,460 RPM maximum rating of the abrasive before mounting. Inspect the point for cracks or chips before each use and discard any damaged units. Use the correct collet size for the 0.125-inch shank to ensure secure seating, and allow the wheel to run up to speed before contacting the workpiece.
