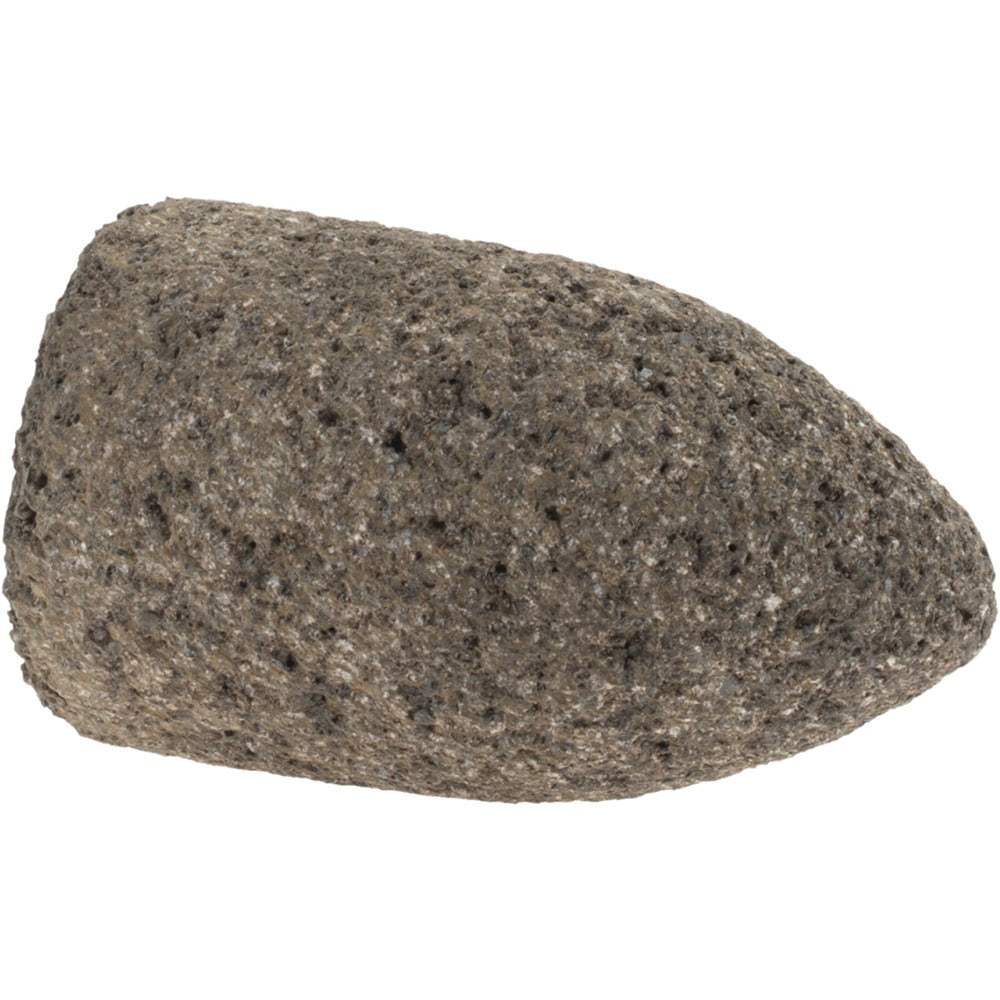

Norton 61463622349 Abrasive Cone Type 16 24 Grit

Product Description

The NORTON 61463622349 is a Type 16 aluminum oxide abrasive cone designed for heavy material removal on metal and other hard surfaces. Running at up to 24,190 RPM, this cone mount is threaded for a 3/8-24 arbor and delivers very coarse, 24-grit cutting action suited for aggressive stock removal, weld blending, and surface preparation. Aluminum oxide construction provides durable, consistent abrasion across ferrous metals and general-purpose materials. This cone is sold individually and is well suited for use with die grinders and right-angle grinders in fabrication, maintenance, and heavy industrial applications.

This abrasive cone is used in metalworking, fabrication shops, and maintenance environments where fast, aggressive grinding is required. Typical applications include deburring castings, blending welds, removing scale, and shaping or chamfering metal workpieces. The Type 16 cone geometry provides good access to contoured surfaces, recesses, and tight areas that flat wheels cannot reach. It is commonly installed by machinists, pipefitters, ironworkers, and general maintenance technicians.

Key Features

• Type 16 cone shape provides access to recesses and contoured surfaces
• 24-grit very coarse aluminum oxide abrasive for aggressive stock removal
• Maximum rated speed of 24,190 RPM
• 3/8-24 threaded arbor hole for secure mounting on compatible die grinders
• Aluminum oxide grain offers durable performance on ferrous metals and general materials

Compatibility

Designed for use with die grinders and rotary tools fitted with a 3/8-24 threaded spindle. Verify that the tool spindle speed does not exceed the 24,190 RPM rating of this abrasive cone before use.

Installation Notes

Installation should be performed by a qualified technician familiar with abrasive tooling and applicable ANSI B7.1 safety standards. Always power down and disconnect the grinder before mounting or removing the abrasive cone. Confirm the tool spindle speed rating does not exceed the maximum RPM marked on the abrasive. Inspect the cone for cracks or damage before each use and never use a damaged abrasive.
