Norton 61463615816 Surface Grinding Segment 30 Grit

Product Description

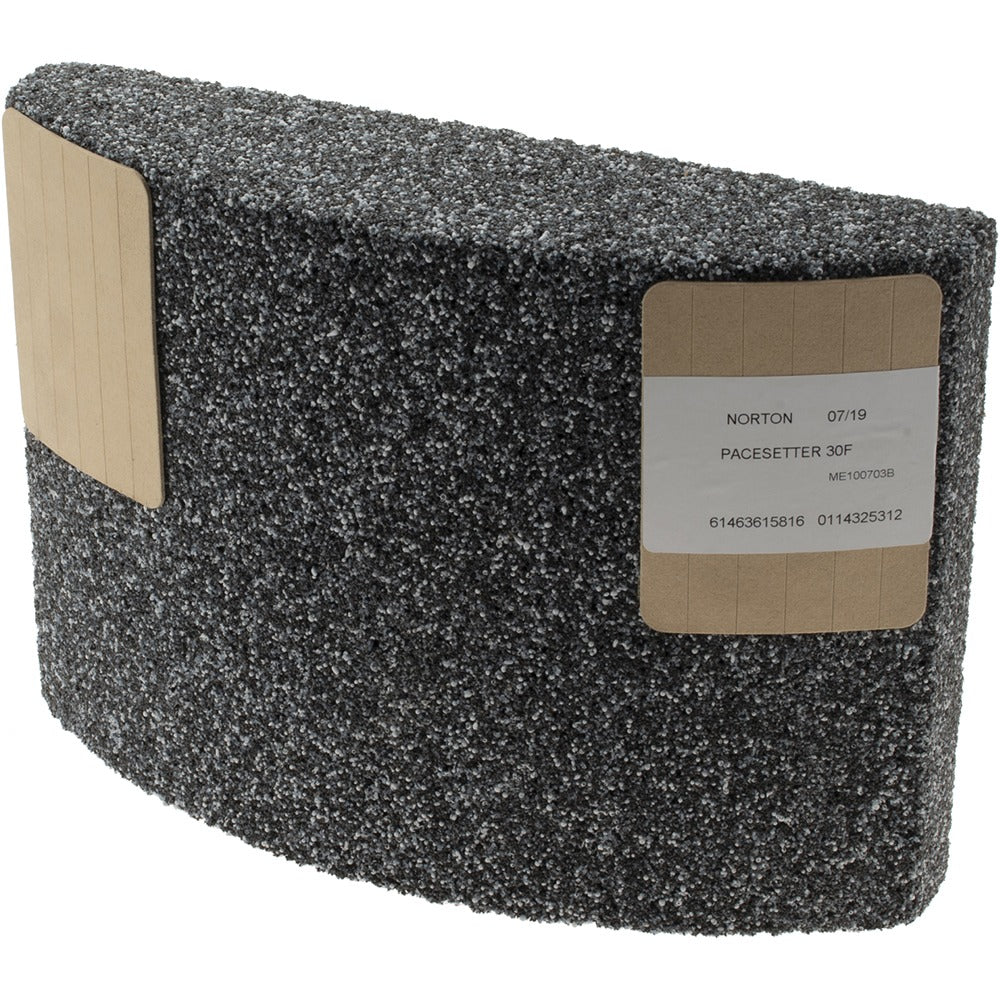

The NORTON 61463615816 is a surface grinding segment designed for heavy-duty stock removal on surface grinders. It measures 11.25 inches wide, 8 inches high, and 3 inches thick, and weighs 14.05 pounds. The 30-grit, very coarse abrasive structure and Hardness Code F bond deliver aggressive cutting action suited for rapid material removal on large flat surfaces. This segment is referenced under Blueprint Number ME100703B and is installed by grinding machine operators and skilled tradespeople working in industrial or manufacturing environments.

This segment is intended for use in surface grinding applications where high material removal rates are the priority. The very coarse 30-grit specification makes it appropriate for roughing passes on ferrous or similarly hard workpieces. The Cortland application designation indicates it is matched to a specific machine or fixture configuration. Its large format suits production-scale grinding operations rather than finish or precision work.

Key Features

• 30-grit, very coarse abrasive for fast, aggressive stock removal
• Hardness Code F bond provides controlled segment wear during grinding
• Large segment format: 11.25 inches wide, 8 inches high, 3 inches thick
• Blueprint Number ME100703B for verified machine fitment reference
• Solid construction at 14.05 pounds for stability during high-load passes

Compatibility

Designated for the Cortland application per manufacturer specifications. Blueprint Number ME100703B should be cross-referenced to confirm correct machine and fixture fitment before installation.

Installation Notes

Surface grinding segments must be installed by qualified machine operators or toolroom personnel familiar with the specific grinder model. The machine must be fully powered down and locked out per LOTO procedures before mounting or removing any grinding segment. Inspect the segment for cracks or chips before mounting, and never exceed the rated operating speed marked on the segment or machine. Follow the grinder manufacturer's clamping and torque guidance as specified in the machine manual.
