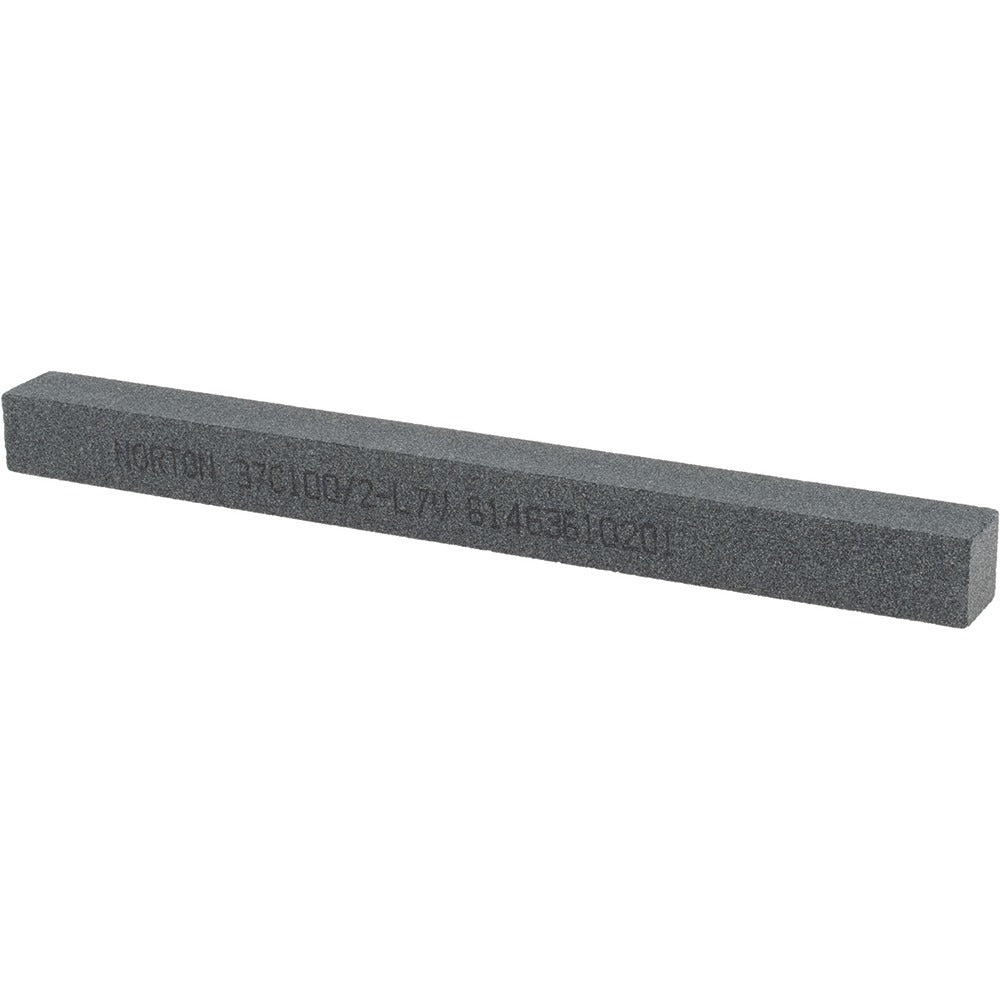

Norton 61463610201 Silicon Carbide Dressing Stick 100 Grit

Product Description

The NORTON 61463610201 is a silicon carbide square dressing stick used to true, dress, and open the faces of vitrified and superabrasive grinding wheels. It measures 6 inches long by 0.5 inches wide by 0.5 inches thick and carries a 100-grit, fine-grade abrasive bonded with a vitrified bond system. The vitrified bond provides consistent cutting action and resists loading during use. The square stick profile gives the technician a stable, controllable contact surface when working across a wheel face. Grinding machine operators and tool room machinists are the primary users of this type of dressing stick.

This dressing stick is suited for bench grinder and surface grinder wheel maintenance in tool rooms, machine shops, and production grinding operations. It is used on vitrified aluminum oxide and CBN wheels as well as other superabrasive wheel types where controlled dressing is required. The fine 100-grit silicon carbide composition makes it effective at removing glazing and restoring wheel cut rate without aggressive stock removal from the wheel itself. Its compact 6-inch length fits standard wheel dresser holders and can also be applied by hand against a running wheel face.

Key Features

• 100-grit silicon carbide abrasive for fine-grade wheel truing and dressing
• Vitrified bond construction delivers consistent, repeatable cutting action
• Square stick profile provides stable contact across flat and curved wheel faces
• Compatible with superabrasive wheels and standard vitrified grinding wheels
• Black silicon carbide composition resists loading and glazing on harder wheel grades
• Compact 6-inch length fits hand-held and holder-mounted dressing applications

Compatibility

Designed for use on superabrasive wheels and vitrified grinding wheels in bench grinder and surface grinder applications requiring fine-grade dressing.

Installation Notes

Dressing sticks should be applied by a qualified machine operator or toolroom technician following the grinder manufacturer's dressing procedure. Always wear appropriate eye protection and confirm the grinding wheel is rated for its operating speed before dressing. Apply the stick with steady, even pressure across the wheel face while the wheel is running at operating speed. Never force or jam the stick into the wheel, as uneven pressure can cause wheel damage or personal injury.
