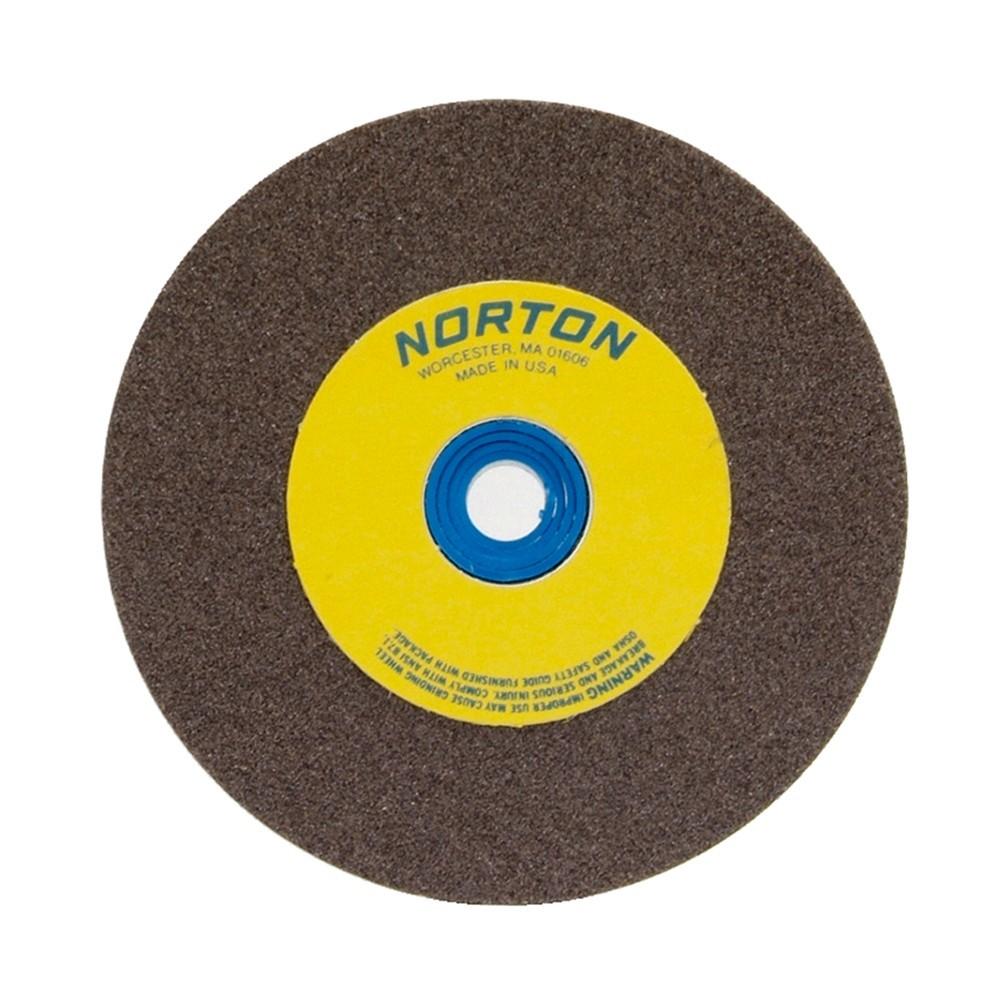

Norton 076607-88210 Bench Pedestal Wheel Type 1 Medium

Product Description

The NORTON 076607-88210 is a Type 1 bench and pedestal grinding wheel designed for general-purpose metal grinding and sharpening tasks. Built from standard aluminum oxide abrasive in a medium grit rating, this wheel delivers consistent stock removal on ferrous metals in shop and maintenance environments. It measures 5 inches in diameter, 0.75 inches wide, with a 1-inch arbor bore, and is rated to a maximum of 4,965 RPM. Weighing 1.7 pounds, it fits standard bench grinders and pedestal grinders used by machinists, maintenance technicians, and fabricators.

This wheel is suited for grinding, deburring, and shaping carbon steel, tool steel, and other ferrous metals. The medium grit aluminum oxide formulation balances material removal rate with surface finish, making it a practical choice for tool sharpening and general workpiece preparation in light industrial and maintenance shop applications. It is sold per each unit.

Key Features

• Type 1 straight wheel profile for use on bench and pedestal grinder applications
• General-purpose aluminum oxide abrasive for ferrous metal grinding
• Medium grit for balanced stock removal and surface finish
• Rated to 4,965 RPM maximum operating speed
• 1-inch arbor bore fits standard bench and pedestal grinder spindles
• 5 x 0.75 x 1 inch dimensions for compatibility with common 5-inch grinder setups

Compatibility

Designed as a general-purpose replacement or stock wheel for standard bench grinders and pedestal grinders accepting a 5-inch Type 1 wheel with a 1-inch arbor bore.

Installation Notes

Installation should be performed by a qualified technician or machinist following ANSI B7.1 safety standards for abrasive wheel mounting. Always disconnect power and verify the machine is fully stopped before changing wheels. Inspect the wheel for cracks or chips before mounting, and perform a ring test by tapping gently to confirm the wheel is sound. Never exceed the maximum rated RPM marked on the wheel.

Technical Specifications

• Wheel Type: Type 1 (Straight)
• Abrasive Material: Aluminum Oxide
• Grit Grade: Medium
• Color: Gray
• Diameter: 5 inches
• Width: 0.75 inches
• Arbor Bore: 1 inch
• Maximum RPM: 4,965
• Weight: 1.7 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-88210
