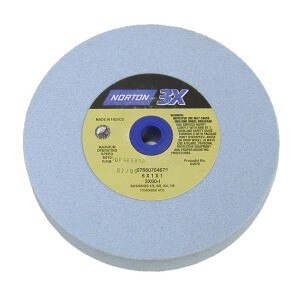

Norton 076607-05422 Bench Pedestal Grinding Wheel 8x1x1

Product Description

The NORTON 076607-05422 is a high-speed bench and pedestal grinding wheel built with Premium 3X Blue Ceramic Alumina abrasive in a K-Grade bond hardness. Measuring 8 inches in diameter, 1 inch wide, and bored to a 1-inch arbor, this wheel is engineered for aggressive stock removal with consistent cut rate across its service life. Ceramic alumina grains self-sharpen as they wear, maintaining cut efficiency without constant dressing. This wheel is suited for trade shops, fabrication benches, and maintenance facilities where reliable, repeatable grinding performance is required.

This wheel mounts on standard bench grinders and pedestal grinders used in metal fabrication, tool-and-die, HVAC sheet metal shops, plumbing fabrication areas, and general industrial maintenance. The K-Grade bond provides a medium-hard matrix that holds grain well under higher peripheral speeds, making it appropriate for ferrous metals and tool steel applications. Minimum order quantity is 5 wheels per purchase.

Key Features

• Premium 3X Blue Ceramic Alumina abrasive for extended wheel life and faster cut rates
• K-Grade bond hardness balances grain retention with controlled wear
• High-speed rated construction suitable for bench and pedestal grinder operation
• 8-inch diameter x 1-inch face x 1-inch arbor bore for standard machine fit
• Self-sharpening ceramic grain reduces the need for frequent dressing

Compatibility

Designed as a replacement-style bench and pedestal grinding wheel for standard 8-inch bench grinders and pedestal grinders accepting a 1-inch arbor bore.

Installation Notes

Bench and pedestal grinding wheels must be installed by a qualified technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always ring-test the wheel before mounting and inspect for cracks or chips. Power down and lock out the grinder before changing wheels. Never exceed the maximum operating speed marked on the wheel blotter, and always install the supplied flanges and blotters correctly before tightening the arbor nut.

Technical Specifications

• Abrasive Type: Premium 3X Blue Ceramic Alumina
• Grade (Bond Hardness): K
• Wheel Diameter: 8 inches
• Wheel Width: 1 inch
• Arbor Bore: 1 inch
• Application: High Speed Bench and Pedestal Grinding
• Sold As: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-05422
