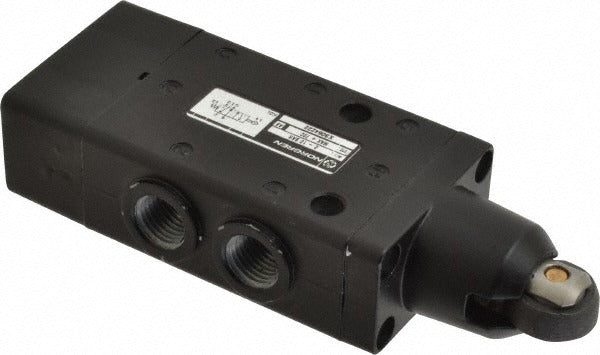

Norgren X3064222 Packed Spool Valve Roller 1/4 Npt

Product Description

The NORGREN X3064222 is a mechanically operated, packed spool directional control valve designed for pneumatic systems in industrial and automation applications. It uses a roller actuator to shift a 5-port, 2-position spool, directing compressed air flow through 1/4 inch NPT inlet and outlet ports. A spring return mechanism resets the spool to its default position when the roller is released. The valve carries a Cv rating of 0.98 and is rated for a maximum working pressure of 10 bar. It weighs 1.25 pounds. Licensed HVAC, automation, and mechanical technicians working with pneumatic control circuits will find this valve suited for straightforward directional switching tasks.

This valve is appropriate for use in industrial pneumatic control panels, automated machinery, and process equipment where mechanical actuation is preferred over solenoid or manual operation. The roller actuator is well-suited for cam-operated or limit-switch-style installations where a moving machine element depresses the roller to trigger the valve cycle. Operating temperature range spans 32 degrees F to 158 degrees F, making it compatible with standard indoor industrial environments.

Key Features

• Packed spool design provides reliable sealing across the valve body
• Roller actuator enables cam-driven or mechanical trip actuation
• Spring return resets spool automatically when actuator force is removed
• 5-port, 2-position configuration for standard directional control circuits
• 1/4 inch NPT inlet and outlet ports for direct pipe or fitting connection
• Cv rating of 0.98 supports adequate flow for light-duty pneumatic actuators

Compatibility

Designed as an OEM-style replacement or direct-install mechanically operated directional control valve for 5-port, 2-position pneumatic circuits using 1/4 inch NPT connections.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician familiar with directional control valve circuits. Depressurize the system and vent all downstream pneumatic lines before removing or installing the valve. Ensure NPT threads are sealed with thread tape or appropriate pipe sealant compatible with compressed air service. Verify that roller alignment with the actuating cam or trip mechanism is correct before returning the system to service.
