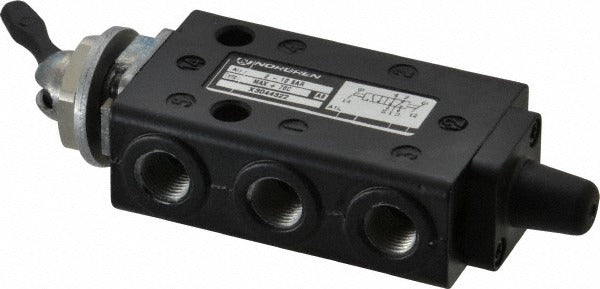

Norgren X3044322 Manual Toggle Valve 0.25 Inch Npt

Product Description

The NORGREN X3044322 is a manually operated directional control valve designed for pneumatic and fluid control systems in industrial and trade applications. It uses a packed spool design with a toggle lever actuator to switch flow between two positions. The valve features a 0.25 inch NPT outlet connection and a Cv rating of 0.34, making it suited for compact flow control tasks where manual operation is required. Licensed tradespeople and industrial maintenance technicians are the typical installers of this type of valve in compressed air lines, automation panels, and fluid distribution systems.

This valve is appropriate for use in light industrial environments, pneumatic control panels, and process piping systems where a simple two-position manual shutoff or divert function is needed. Its operating temperature range of 32 degrees F to 158 degrees F covers most standard indoor industrial conditions. The black-body packed spool construction provides consistent sealing performance across repeated toggle cycles. It is commonly installed in OEM equipment builds, maintenance retrofits, and plant floor pneumatic circuits.

Key Features

• Packed spool valve design for reliable sealing and consistent flow control
• Toggle lever actuator enables positive two-position manual switching
• 0.25 inch NPT outlet connection for straightforward threaded installation
• Cv rating of 0.34 supports precise low-flow pneumatic applications
• Operating temperature range of 32 degrees F to 158 degrees F
• Compact black-body construction suits panel and inline mounting

Compatibility

Designed as an OEM-style replacement or direct-install manual directional control valve for pneumatic systems using standard 0.25 inch NPT threaded connections.

Installation Notes

Installation of this valve should be performed by a qualified industrial maintenance technician or pipefitter. Depressurize and lock out the air or fluid supply line fully before removing or installing any valve. Use appropriate thread sealant on NPT connections and verify the toggle actuator moves freely through both positions before returning the system to service. Consult applicable local codes and equipment OEM documentation for additional requirements.
