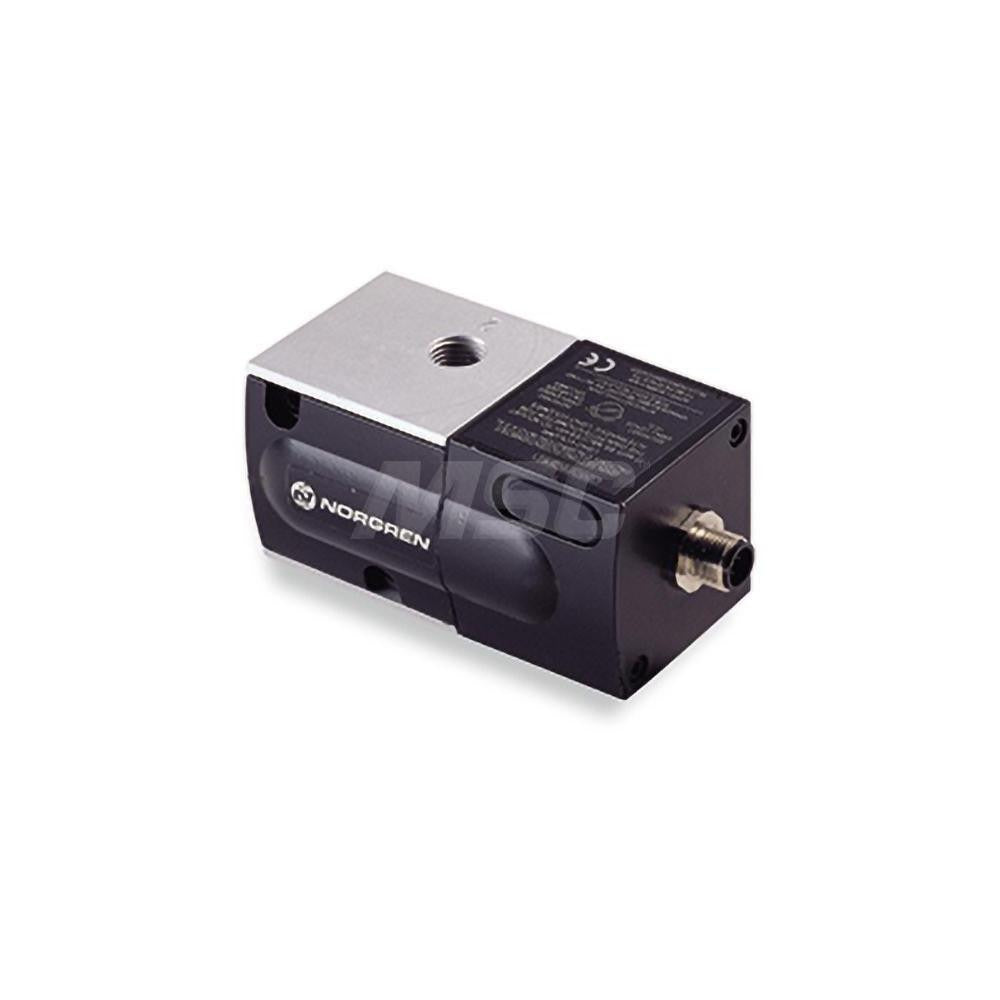

Norgren VP5006BJ111H00 Proportional Pressure Control Valve

Product Description

The NORGREN VP5006BJ111H00 is a proportional pressure control air valve designed for precise pneumatic pressure regulation in industrial and automated systems. It uses an air-operated spool valve actuator to deliver proportional output pressure in response to a varying pilot signal, allowing fine control over downstream pressure without manual intervention. The 1/4 inch inlet port and a Cv rating of 0.005 reflect the compact, low-flow design suited for applications requiring accurate, repeatable pressure modulation. Pneumatic system integrators and automation technicians are the primary installers of this type of valve.

This valve is used in applications where proportional pressure control is required across pneumatic circuits, such as process control equipment, test benches, and automated assembly systems. The air-operated spool actuator design eliminates the need for electrical actuation, making it suitable for environments where electrical components must be minimized. Its compact form factor and low Cv rating make it appropriate for precision low-flow circuits rather than high-volume air distribution lines.

Key Features

• Proportional pressure control output for precise downstream regulation
• Air-operated spool valve actuator eliminates electrical actuation requirements
• 1/4 inch inlet port for integration into standard pneumatic plumbing
• Cv rating of 0.005 suited for precision low-flow pneumatic circuits
• Compact, lightweight construction at 0.25 pounds

Compatibility

Designed as an OEM-style replacement or drop-in component for proportional pressure control pneumatic circuits using 1/4 inch ported connections and air-operated spool valve actuator configurations.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician familiar with proportional valve circuits and pneumatic plumbing practices. Depressurize and lock out the upstream air supply before removing or installing the valve. Verify that pilot pressure supply and downstream circuit pressures are within the valve operating range prior to startup. Follow applicable industry standards and equipment manufacturer guidelines for pneumatic system assembly and leak testing.
