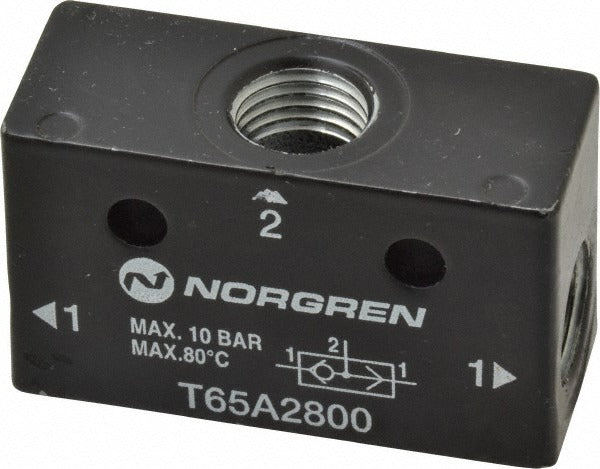

Norgren T65A2800 Shuttle Air Flow Control Valve Npt

Product Description

The NORGREN T65A2800 is a shuttle-type air flow control valve designed to regulate airflow direction and volume in pneumatic systems. It features an in-flow configuration, meaning flow control is applied on the inlet side. The valve body is constructed from zinc and connects via 1/4 inch NPT threading, accepting a 1/4 inch tube outside diameter. It is suited for light industrial and commercial pneumatic applications where directional flow control and compact valve geometry are required. Installation is typically performed by a mechanical or pneumatic systems technician.

This valve is commonly used in pneumatic circuits within manufacturing equipment, automated machinery, and process control systems. The shuttle mechanism allows the valve to respond to pressure from multiple inlet sources, directing flow from the active pressure source while blocking the other. The in-flow orientation makes it appropriate for upstream flow regulation in circuit branches where controlled inlet flow is the design requirement.

Key Features

• Shuttle valve design for directional flow control in pneumatic circuits
• In-flow configuration for inlet-side airflow regulation
• 1/4 inch NPT connection for standard pneumatic line integration
• Zinc body construction for durability in light industrial environments
• Compact form factor suited for space-constrained pneumatic assemblies

Compatibility

Designed as an OEM-style replacement or direct-fit addition for pneumatic systems using 1/4 inch NPT connections and requiring shuttle-type in-flow control valves.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Depressurize and lock out the pneumatic circuit before removing any existing valve or fitting. Verify that all NPT threads are clean and apply appropriate thread sealant per system requirements before tightening connections. Do not over-torque the zinc body fittings, as the material is subject to thread damage under excessive force.
