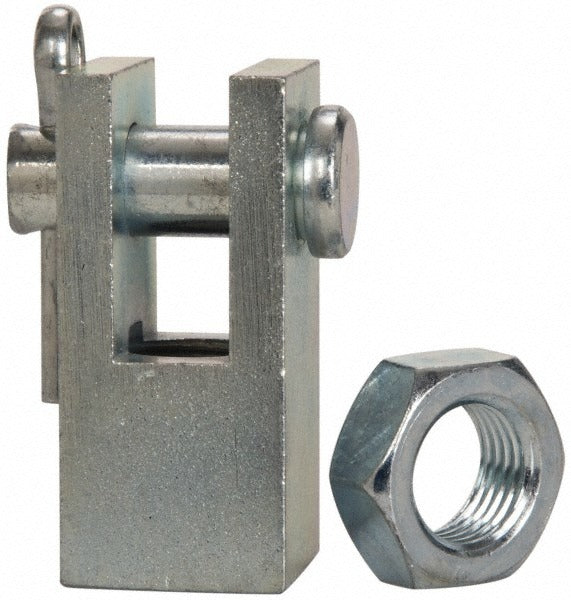

Norgren RC-5 Piston Rod Clevis Air Cylinder Accessory

Product Description

The NORGREN RC-5 is a piston rod clevis designed as a mounting accessory for Norgren nonrepairable air cylinders. A rod clevis connects the extending piston rod to an external load or linkage, converting linear cylinder motion into mechanical work at the attachment point. The RC-5 fits cylinders in the 1-3/4 inch, 2 inch, and 2-1/2 inch bore sizes. It weighs 1 pound. This type of fitting is typically installed by maintenance technicians, millwrights, or pneumatic systems technicians working on industrial automation and motion control equipment.

The RC-5 is suited for use in pneumatic systems where a Norgren nonrepairable air cylinder requires a clevis-style rod end connection. Common applications include linear actuator assemblies in manufacturing equipment, packaging machinery, and other light-to-medium duty industrial systems that use standard bore air cylinders in the 1-3/4 inch to 2-1/2 inch range. Each package contains one clevis unit.

Key Features

• Piston rod clevis configuration for direct rod-end attachment
• Compatible bore range covers 1-3/4 inch, 2 inch, and 2-1/2 inch cylinders
• OEM accessory designed specifically for Norgren nonrepairable air cylinders
• Sold individually, one clevis per package

Compatibility

Designed for use with Norgren nonrepairable air cylinders in 1-3/4 inch, 2 inch, and 2-1/2 inch bore sizes.

Installation Notes

Depressurize and lock out the pneumatic circuit before removing or installing any cylinder accessory. Verify that the clevis pin diameter and attachment hardware match the load linkage before final assembly. Installation is typically performed by a qualified pneumatic systems technician or millwright familiar with linear actuator assemblies. Consult the cylinder manufacturer documentation to confirm proper torque and alignment requirements for the specific installation.
