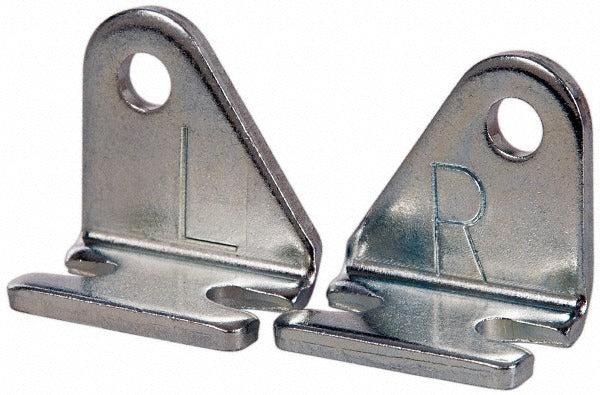

Norgren PB-2 Air Cylinder Pivot Bracket Multi-bore

Product Description

The NORGREN PB-2 is a pivot bracket accessory designed for use with Norgren nonrepairable air cylinders. It provides a pivoting mount point that allows the cylinder to articulate through its stroke without binding, reducing side-load stress on the piston rod and cylinder body. Compatible with multiple bore sizes ranging from 3/4 inch through 1-1/4 inches, the PB-2 is a direct-fit mounting component suited for light industrial and automation applications. Installation is handled by maintenance technicians and industrial mechanics working on pneumatic actuator assemblies.

This pivot bracket fits Norgren nonrepairable air cylinders with bore sizes of 3/4 inch, 7/8 inch, 1-1/16 inch, and 1-1/4 inches. It is typically used in applications where the load path is not perfectly linear, requiring the cylinder to swing or pivot during actuation. Common installation scenarios include conveyor systems, clamping fixtures, and light-duty actuator assemblies in manufacturing and process automation environments.

Key Features

• Pivot-style mounting allows cylinder articulation during stroke to minimize rod side loading
• Fits four bore sizes: 3/4 inch, 7/8 inch, 1-1/16 inch, and 1-1/4 inches
• Designed specifically for Norgren nonrepairable air cylinder series
• Sold individually — package quantity of 1
• Compact form factor suited for space-constrained actuator installations

Compatibility

Designed for use with Norgren nonrepairable air cylinders with bore sizes of 3/4 inch, 7/8 inch, 1-1/16 inch, and 1-1/4 inches.

Installation Notes

Installation should be performed by a qualified maintenance technician or industrial mechanic familiar with pneumatic actuator systems. Depressurize and lock out the pneumatic circuit before removing or installing any cylinder mounting hardware. Ensure the pivot pin and bracket fasteners are tightened securely and that the bracket is aligned with the intended swing axis to prevent binding during cylinder stroke.
