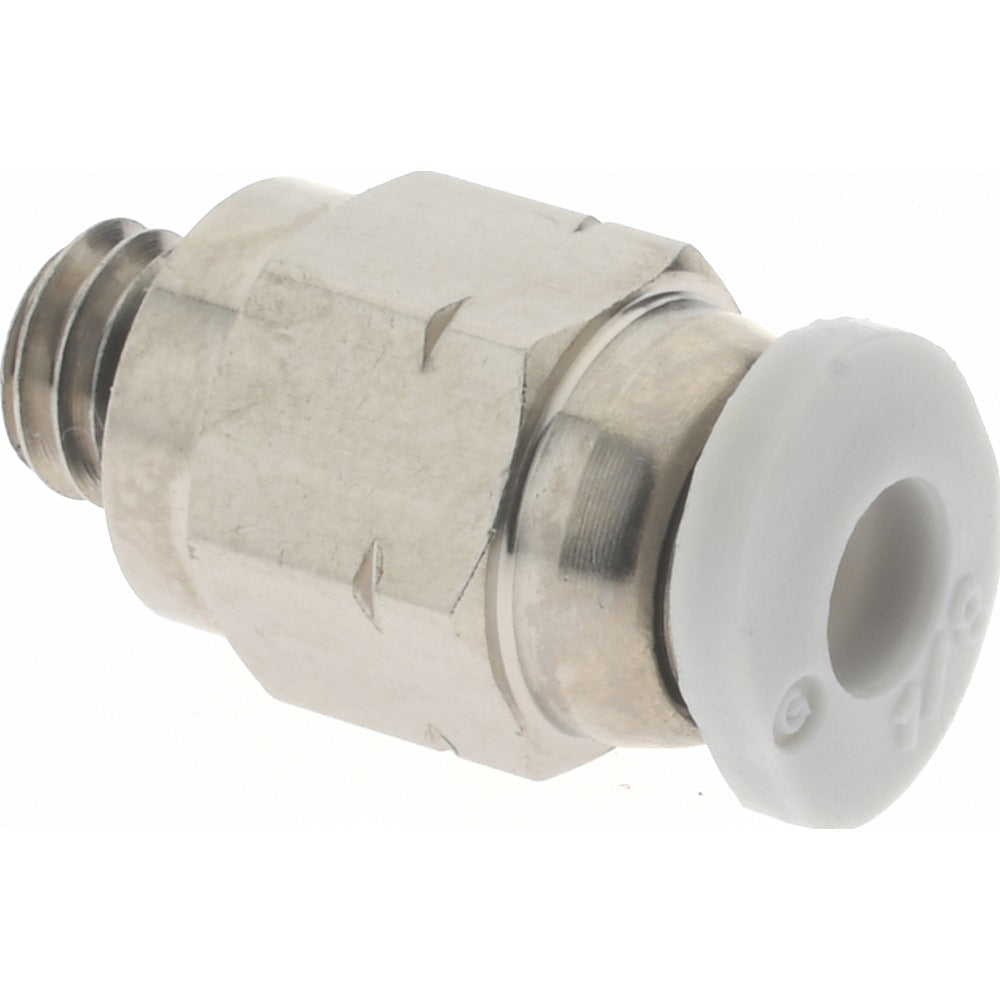

Norgren M24250110 Tube Fitting Adapter 1/8 in Od 10-32 Unf

Product Description

The NORGREN M24250110 is a straight push-to-connect tube fitting adapter designed for pneumatic and fluid line connections in light industrial and instrumentation applications. It features a tube-to-male-to-tube-to-male UNF configuration, allowing a 1/8 inch outside diameter tube to connect to a 10-32 UNF male thread on both ends. The body is machined from brass for durability and corrosion resistance. It is rated to 150 psi maximum working pressure and handles temperatures from 0 degrees F to 175 degrees F. An internal nitrile O-ring ensures a reliable, leak-resistant seal. Plumbers, pneumatic system technicians, and instrumentation specialists install this fitting in compressed air, gas, and low-pressure fluid circuits.

This adapter suits residential and light commercial applications where small-bore tubing must transition to a 10-32 UNF male threaded port. Common install scenarios include pneumatic control panels, HVAC pneumatic actuator lines, and instrument air tubing runs. The compact 0.7 inch overall length keeps the fitting profile low in tight plumbing or panel enclosures. The push-to-connect design allows fast, tool-free tube insertion while the brass body withstands typical shop-air and instrument-air service conditions.

Key Features

• Straight push-to-connect adapter for 1/8 inch OD tubing to 10-32 UNF male thread
• Brass body construction for corrosion resistance in air and compatible fluid service
• Nitrile O-ring sealing for reliable, leak-resistant connections
• 150 psi maximum working pressure rating
• Operating temperature range of 0 degrees F to 175 degrees F
• Compact 0.7 inch overall length for tight-space installations

Compatibility

Designed as an OEM-style push-to-connect adapter for pneumatic and instrumentation tubing systems using 1/8 inch OD tubing with 10-32 UNF male threaded ports.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or instrumentation technicians. Depressurize and isolate the pneumatic or fluid circuit completely before installing or removing any fitting. Insert tubing fully into the push-to-connect end until it seats against the internal stop to ensure a proper seal. Verify that the tubing OD and thread specifications match the fitting before pressurizing the system.
