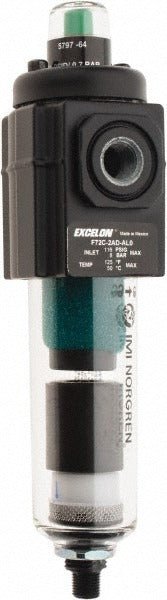

Norgren F72C-2AD-AL0 Coalescing Filter 0.01 Micron 1/4 in

Product Description

The NORGREN F72C-2AD-AL0 is a compact coalescing filter designed to remove oil aerosols, water mist, and fine particulate contamination from compressed air systems. Rated at 0.01 micron, it delivers high-efficiency filtration suitable for applications where clean, dry air is critical to downstream equipment performance. The unit features a polycarbonate bowl for liquid-level visibility and an automatic drain that purges accumulated condensate without manual intervention. At 1.98 inches wide and 7.5 inches high, the compact form factor fits easily into tight panel or manifold installations. Licensed HVAC technicians, pneumatic system technicians, and industrial maintenance professionals are the typical installers for this type of inline filter.

This coalescing filter is suited for use in compressed air lines serving pneumatic controls, instrumentation, spray systems, and other applications requiring low oil and moisture carryover. The 1/4 inch port size and compact body make it appropriate for smaller flow circuits in both light industrial and commercial HVAC control applications. The automatic drain function reduces maintenance burden in installations where regular manual servicing is impractical, such as overhead or enclosed panel installations.

Key Features

• 0.01 micron filtration rating for high-efficiency removal of oil aerosols and fine particulates
• Automatic drain eliminates manual condensate purging
• Polycarbonate bowl provides clear visual indication of accumulated liquid
• 150 psi maximum operating pressure rating
• 1/4 inch port size suits smaller pneumatic circuits and control line applications
• Compact body at 1.98 inches wide and 7.5 inches high for space-constrained installations

Compatibility

Designed as an OEM-style inline coalescing filter for compressed air systems with 1/4 inch ported connections rated up to 150 psi.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system service. Depressurize and lock out the air supply line completely before removing any existing filter or installing this unit. Mount the filter in an upright orientation so the bowl drains properly and the automatic drain can function as intended. Verify that system operating pressure does not exceed the 150 psi maximum rating before returning the line to service.
