Norgren DA/802100/M/70 Nfpa Tie Rod Cylinder

Product Description

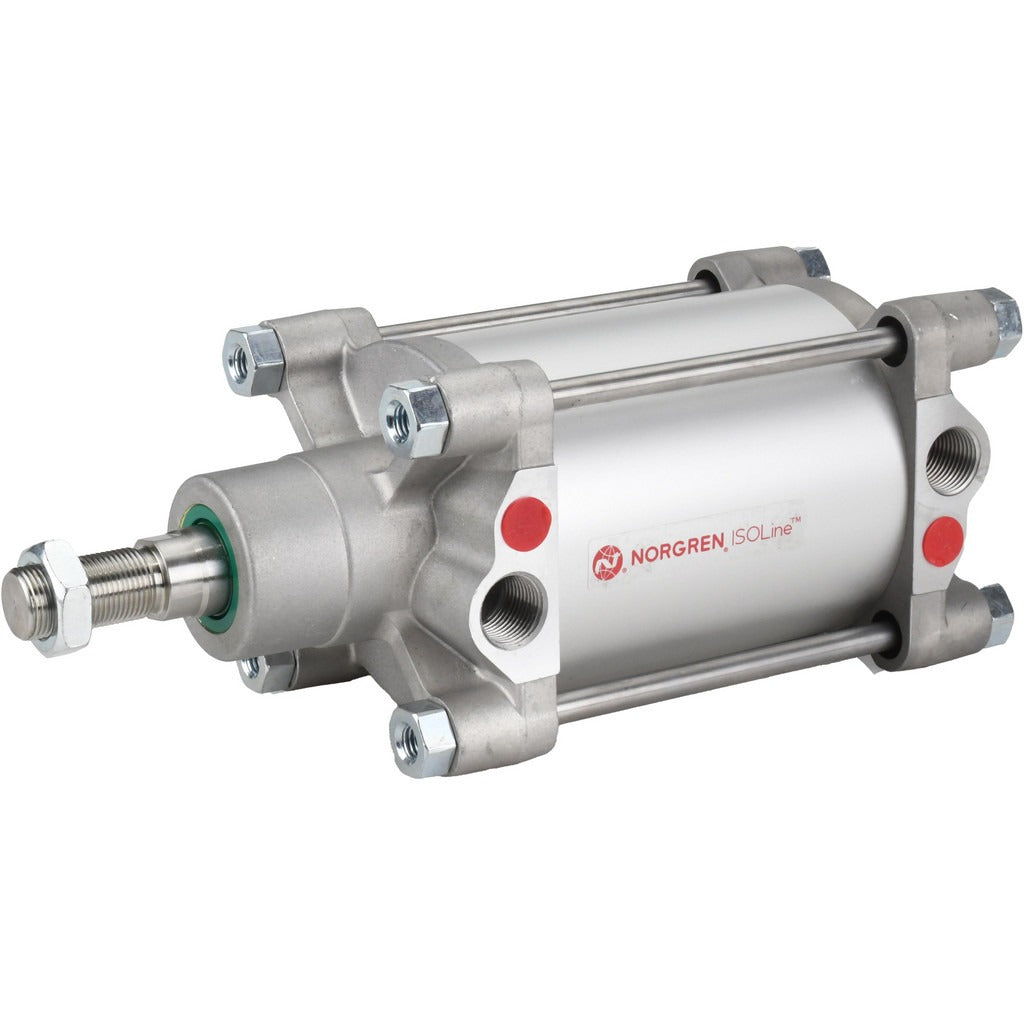

The NORGREN DA/802100/M/70 is a double-acting NFPA tie rod pneumatic cylinder designed for industrial linear motion applications. With a 100mm bore diameter and a 70mm stroke length, it delivers consistent, bi-directional force output using compressed air. The 25mm rod diameter provides structural rigidity under load, and the steel body construction offers durability in demanding industrial environments. This cylinder follows NFPA dimensional standards, making it a recognized form factor across a wide range of pneumatic automation systems. Installation is typically performed by industrial maintenance technicians or pneumatic systems specialists.

This cylinder is suited for general-purpose industrial automation tasks including clamping, pressing, positioning, and actuating loads in manufacturing and process equipment. Its NFPA-standard tie rod design allows straightforward integration into existing machine frames and cylinder mounts engineered to that standard. The 1/2 inch port size accommodates common pneumatic supply fittings, and the 20mm rod thread size enables direct connection to standard rod end hardware.

Key Features

• Double-acting actuation for bi-directional force control via compressed air
• 100mm bore diameter for substantial force output at standard operating pressures
• 70mm stroke length suited for compact linear travel applications
• 25mm rod diameter for rigidity and resistance to side-load deflection
• Steel body construction for durability in industrial service
• NFPA tie rod configuration for broad interchangeability with standard mounts and accessories

Compatibility

Designed as an NFPA-standard tie rod cylinder replacement or new installation for industrial pneumatic systems using 100mm bore, 70mm stroke double-acting cylinders with 1/2 inch port connections and 20mm rod thread sizing.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance professional. Before servicing or replacing this cylinder, isolate and depressurize the pneumatic supply line completely and lock out any associated energy sources per established LOTO procedures. Ensure all rod end hardware and port fittings are compatible with the 20mm rod thread and 1/2 inch port size before assembly. Do not exceed the cylinder's rated operating pressure or apply off-axis loads beyond the rod's rated side-load capacity.
