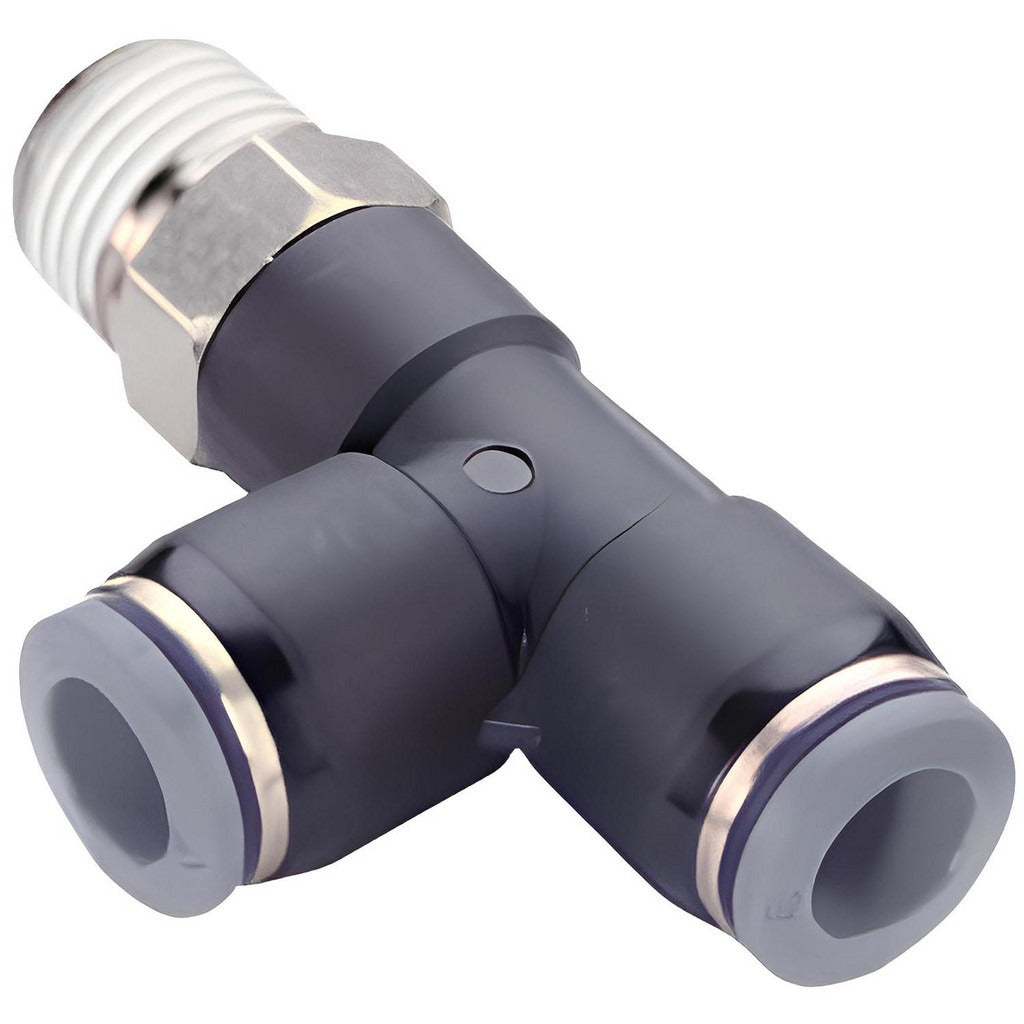

Norgren C24680638 Swivel Side Tee Fitting 3/8 Inch Brass

Product Description

The NORGREN C24680638 is a brass swivel side tee adapter designed for push-to-connect pneumatic and fluid line assemblies. It provides a three-way connection with a tube-to-male NPTF thread configuration, allowing a swiveling side port that simplifies routing and reduces assembly stress on tubing. Rated to 150 psi maximum working pressure and suitable for temperatures from 0 degrees F to 175 degrees F, this fitting handles general-purpose compressed air and compatible fluid applications. The nitrile O-ring seals the connection and accommodates minor angular misalignment at the swivel port. HVAC technicians, plumbers, and industrial service pros use this fitting where space or routing constraints require a tee branch with adjustable orientation.

This fitting is used in general-purpose pneumatic lines, light hydraulic circuits, and fluid control systems where a 3/8 inch OD tube meets a 3/8 inch male NPTF threaded port. Typical applications include instrument air lines, control valve supply tubing, and equipment manifold assemblies in both residential and light commercial settings. The swivel side tee design is particularly useful during retrofits or tight-clearance installations where fixed tee fittings would force awkward tube bends.

Key Features

• Push-to-connect tube ports accept 3/8 inch OD tubing for tool-free insertion
• Swivel side tee allows rotational adjustment of the branch port before final lockdown
• 3/8 inch NPTF male thread provides a pressure-tight dry-seal connection
• 150 psi maximum working pressure rated for general-purpose service
• Nitrile O-ring construction compatible with compressed air and common pneumatic fluids
• Operating temperature range of 0 degrees F to 175 degrees F

Compatibility

Designed as an OEM-style replacement or new-install fitting for general-purpose pneumatic and fluid line assemblies using 3/8 inch OD tubing and 3/8 inch NPTF male threaded ports.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid piping systems. Depressurize and isolate the line completely before disconnecting or installing any fitting. Thread the NPTF male port into the receiving fitting by hand first, then tighten with an appropriate wrench to avoid cross-threading; do not overtighten brass fittings. Verify push-to-connect tube seating by tugging the tubing after insertion to confirm the collet has engaged before returning the system to service.
